ADS1278HPAP

ADS1278HPAP Overview

Product belongs to the ADS1278-HT series. This product is categorized as Analog to Digital Converters Tube is the packaging method for this product Weight of 0.017506 oz SMD/SMT Mounting-Style HTQFP-64 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 105°C Number of channels: 8 Channel Supplier device package: 64-HTQFP (10x10) This product's 144k. Data-Interface: SPI 24 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 1.65 V ~ 1.95 V. Configuration ADC The architecture of this product is Sigma-Delta . External is the reference type. 1 units Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C Serial SPI interface type Signal-to-Noise Ratio of 111 dB 144 kS/s Sampling Rate Analog supply voltage: 4.75 V to 5.25 V Digital Supply Voltage: 1.65 V to 2.2 V Integral Nonlinearity: 0.0014 %

ADS1278HPAP Image

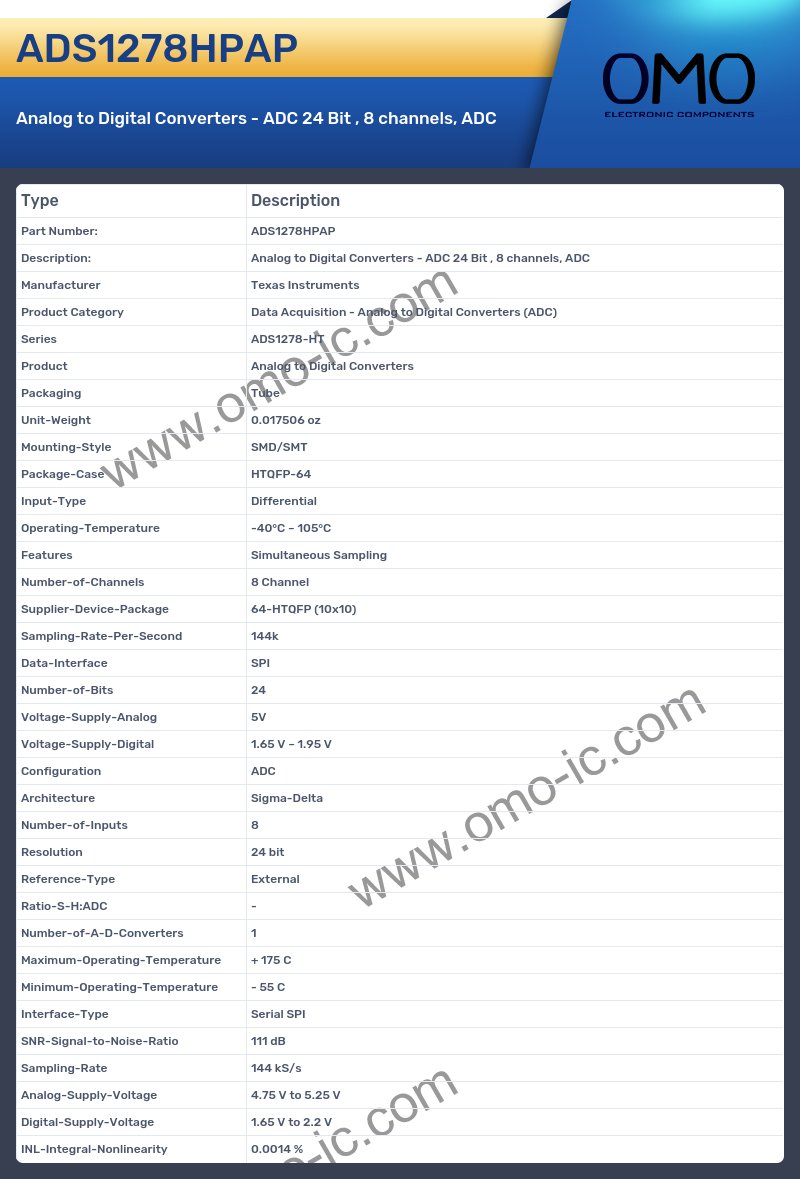

ADS1278HPAP Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS1278-HT
• Product Analog to Digital Converters
• Packaging Tube
• Unit-Weight 0.017506 oz
• Mounting-Style SMD/SMT
• Package-Case HTQFP-64
• Input-Type Differential
• Operating-Temperature -40°C ~ 105°C
• Features Simultaneous Sampling
• Number-of-Channels 8 Channel
• Supplier-Device-Package 64-HTQFP (10x10)
• Sampling-Rate-Per-Second 144k
• Data-Interface SPI
• Number-of-Bits 24
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 1.65 V ~ 1.95 V
• Configuration ADC
• Architecture Sigma-Delta
• Number-of-Inputs 8
• Resolution 24 bit
• Reference-Type External
• Ratio-S-H:ADC -
• Number-of-A-D-Converters 1
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 55 C
• Interface-Type Serial SPI
• SNR-Signal-to-Noise-Ratio 111 dB
• Sampling-Rate 144 kS/s
• Analog-Supply-Voltage 4.75 V to 5.25 V
• Digital-Supply-Voltage 1.65 V to 2.2 V
• INL-Integral-Nonlinearity 0.0014 %
