ADS1286UL

ADS1286UL Overview

Product belongs to the ADS1286 series. This product is categorized as Analog to Digital Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.002677 oz SMD/SMT Mounting-Style SOIC-8 The Differential for this product is CMOS/TTL. Operational temperature range: 0°C ~ 70°C Number of channels: 1 Channel Supplier device package: 8-SOIC This product's 20k. Data-Interface: SPI 12 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration S/H-ADC The architecture of this product is SAR . External is the reference type. 1 units Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Serial 2-Wire 3-Wire SPI interface type Number-of-Converters: 1 Converter 20 kS/s Sampling Rate Analog supply voltage: 4.5 V to 5.25 V Digital Supply Voltage: 4.5 V to 5.25 V Integral Nonlinearity: +/- 1 LSB Differential nonlinearity: +/- 0.75 LSB

ADS1286UL Image

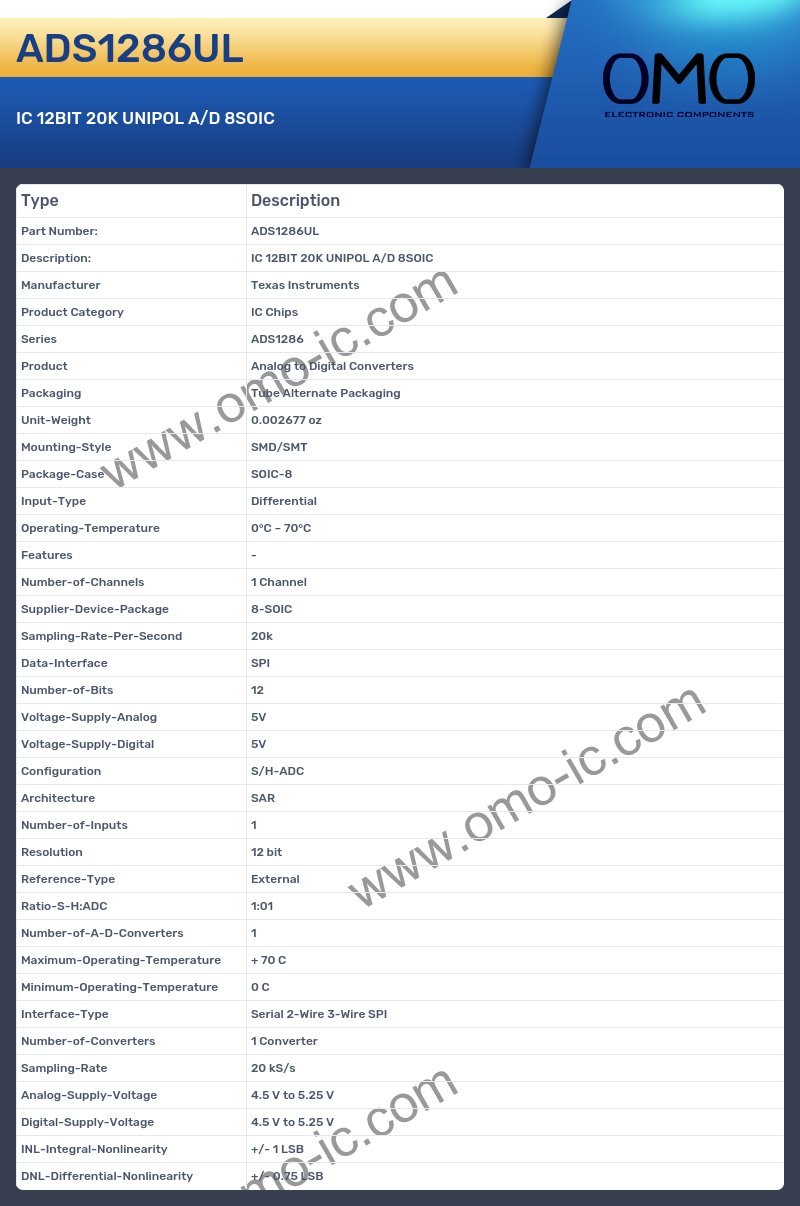

ADS1286UL Specifications

• Manufacturer Texas Instruments
• Product Category IC Chips
• Series ADS1286
• Product Analog to Digital Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002677 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Input-Type Differential
• Operating-Temperature 0°C ~ 70°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 8-SOIC
• Sampling-Rate-Per-Second 20k
• Data-Interface SPI
• Number-of-Bits 12
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration S/H-ADC
• Architecture SAR
• Number-of-Inputs 1
• Resolution 12 bit
• Reference-Type External
• Ratio-S-H:ADC 1:01
• Number-of-A-D-Converters 1
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Interface-Type Serial 2-Wire 3-Wire SPI
• Number-of-Converters 1 Converter
• Sampling-Rate 20 kS/s
• Analog-Supply-Voltage 4.5 V to 5.25 V
• Digital-Supply-Voltage 4.5 V to 5.25 V
• INL-Integral-Nonlinearity +/- 1 LSB
• DNL-Differential-Nonlinearity +/- 0.75 LSB
