ADS5295PFP

ADS5295PFP Overview

Product belongs to the ADS5295 series. This product is categorized as Analog to Digital Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.013355 oz SMD/SMT Mounting-Style HTQFP-80 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Output-Type: LVDS Number of channels: 8 Channel Supplier device package: 80-HTQFP (12x12) This product's 100M. Data-Interface: LVDS - Serial 12 bits The Voltage-Supply-Analog is 1.7 V ~ 1.9 V. The Voltage Supply Digital for this product is 1.7 V ~ 1.9 V. Configuration S/H-ADC The architecture of this product is Pipelined . External, Internal is the reference type. 8 units Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial interface type Signal-to-Noise Ratio of 70.6 dB The ADS5295EVM. Number-of-Converters: 1 Converter 100 MS/s Sampling Rate Analog supply voltage: 1.8 V Digital Supply Voltage: 1.8 V

ADS5295PFP Image

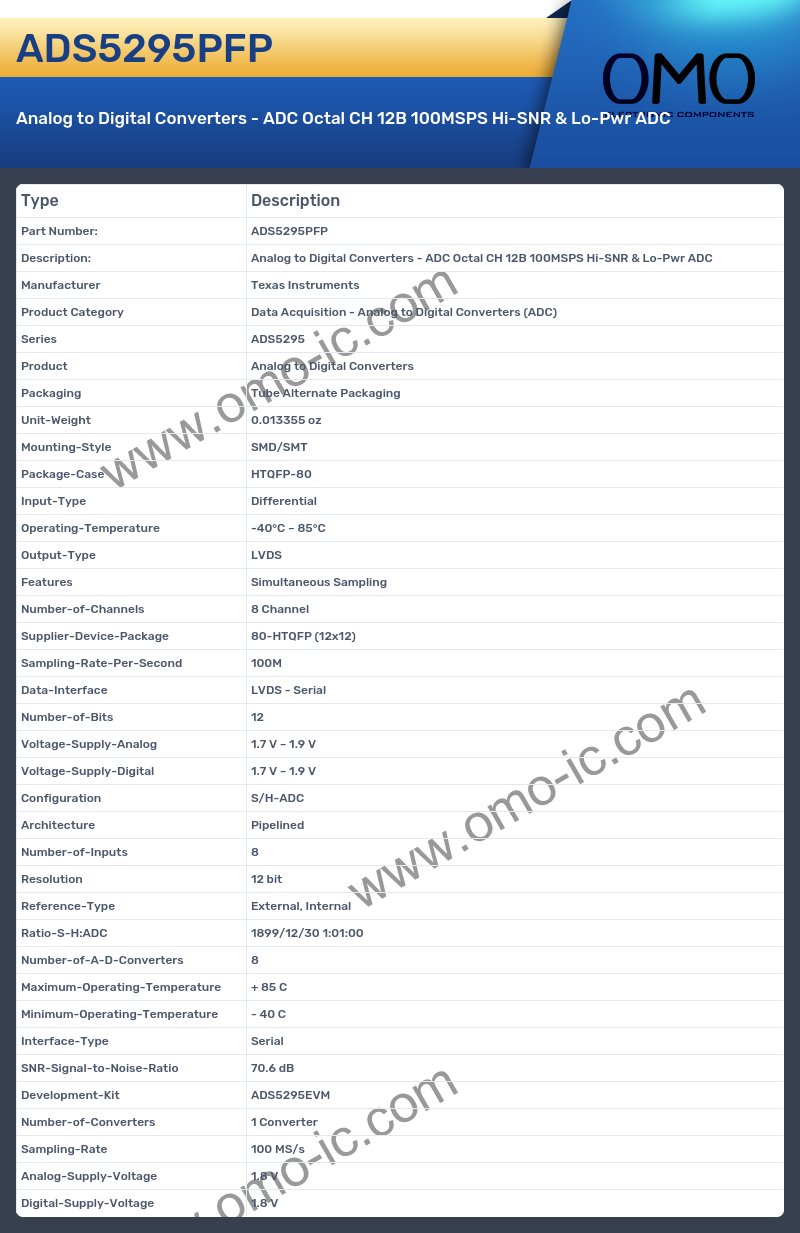

ADS5295PFP Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS5295
• Product Analog to Digital Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.013355 oz
• Mounting-Style SMD/SMT
• Package-Case HTQFP-80
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Output-Type LVDS
• Features Simultaneous Sampling
• Number-of-Channels 8 Channel
• Supplier-Device-Package 80-HTQFP (12x12)
• Sampling-Rate-Per-Second 100M
• Data-Interface LVDS - Serial
• Number-of-Bits 12
• Voltage-Supply-Analog 1.7 V ~ 1.9 V
• Voltage-Supply-Digital 1.7 V ~ 1.9 V
• Configuration S/H-ADC
• Architecture Pipelined
• Number-of-Inputs 8
• Resolution 12 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 8
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial
• SNR-Signal-to-Noise-Ratio 70.6 dB
• Development-Kit ADS5295EVM
• Number-of-Converters 1 Converter
• Sampling-Rate 100 MS/s
• Analog-Supply-Voltage 1.8 V
• Digital-Supply-Voltage 1.8 V
