ADS7815UG4

ADS7815UG4 Overview

Product belongs to the - series. Tube Alternate Packaging is the packaging method for this product 28-SOIC (0.295", 7.50mm Width) The Single Ended for this product is CMOS/TTL. Operational temperature range: -25°C ~ 85°C Supplier device package: 28-SOIC This product's 250k. Data-Interface: Parallel 16 bits The Voltage-Supply-Analog is ±5V. The Voltage Supply Digital for this product is 5V. Configuration S/H-ADC The architecture of this product is SAR . External, Internal is the reference type. 1 units

ADS7815UG4 Image

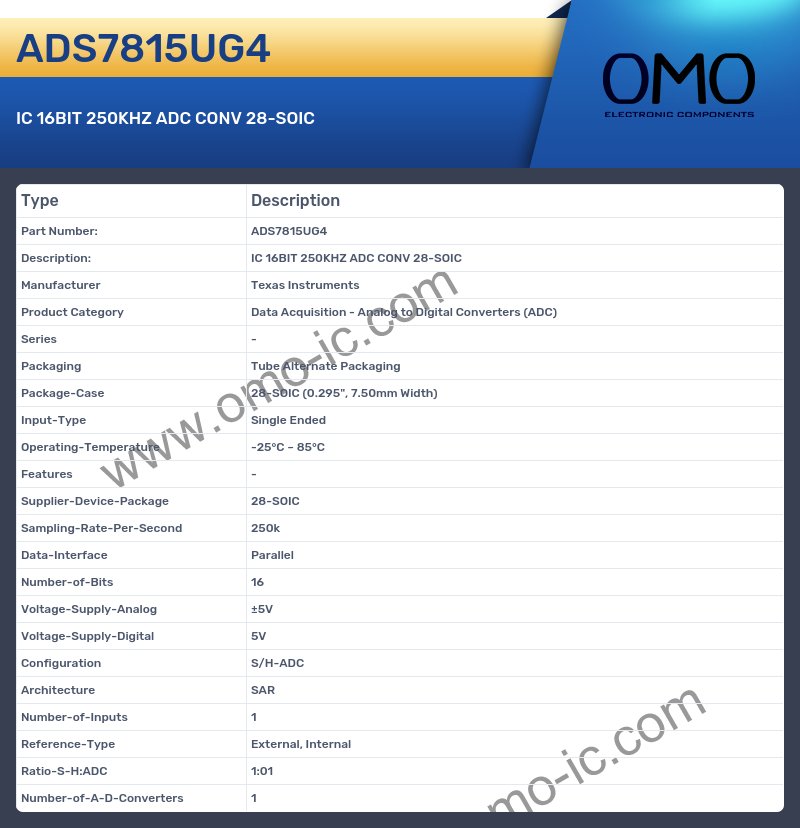

ADS7815UG4 Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series -
• Packaging Tube Alternate Packaging
• Package-Case 28-SOIC (0.295", 7.50mm Width)
• Input-Type Single Ended
• Operating-Temperature -25°C ~ 85°C
• Features -
• Supplier-Device-Package 28-SOIC
• Sampling-Rate-Per-Second 250k
• Data-Interface Parallel
• Number-of-Bits 16
• Voltage-Supply-Analog ±5V
• Voltage-Supply-Digital 5V
• Configuration S/H-ADC
• Architecture SAR
• Number-of-Inputs 1
• Reference-Type External, Internal
• Ratio-S-H:ADC 1:01
• Number-of-A-D-Converters 1
