ADS7861E

ADS7861E Overview

Product belongs to the ADS7861 series. This product is categorized as Analog to Digital Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.004568 oz SMD/SMT Mounting-Style SSOP-24 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C Number of channels: 4 Channel Supplier device package: 24-SSOP/QSOP This product's 500k. Data-Interface: SPI 12 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration MUX-S/H-ADC The architecture of this product is SAR . External, Internal is the reference type. 2 units Power-off control: 42.5 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Serial SPI interface type The ADS7861EVM. Number-of-Converters: 2 Converter 500 kS/s Sampling Rate Analog supply voltage: 4.75 V to 5.25 V Digital Supply Voltage: 4.75 V to 5.25 V Integral Nonlinearity: +/- 2 LSB Differential nonlinearity: +/- 1 LSB

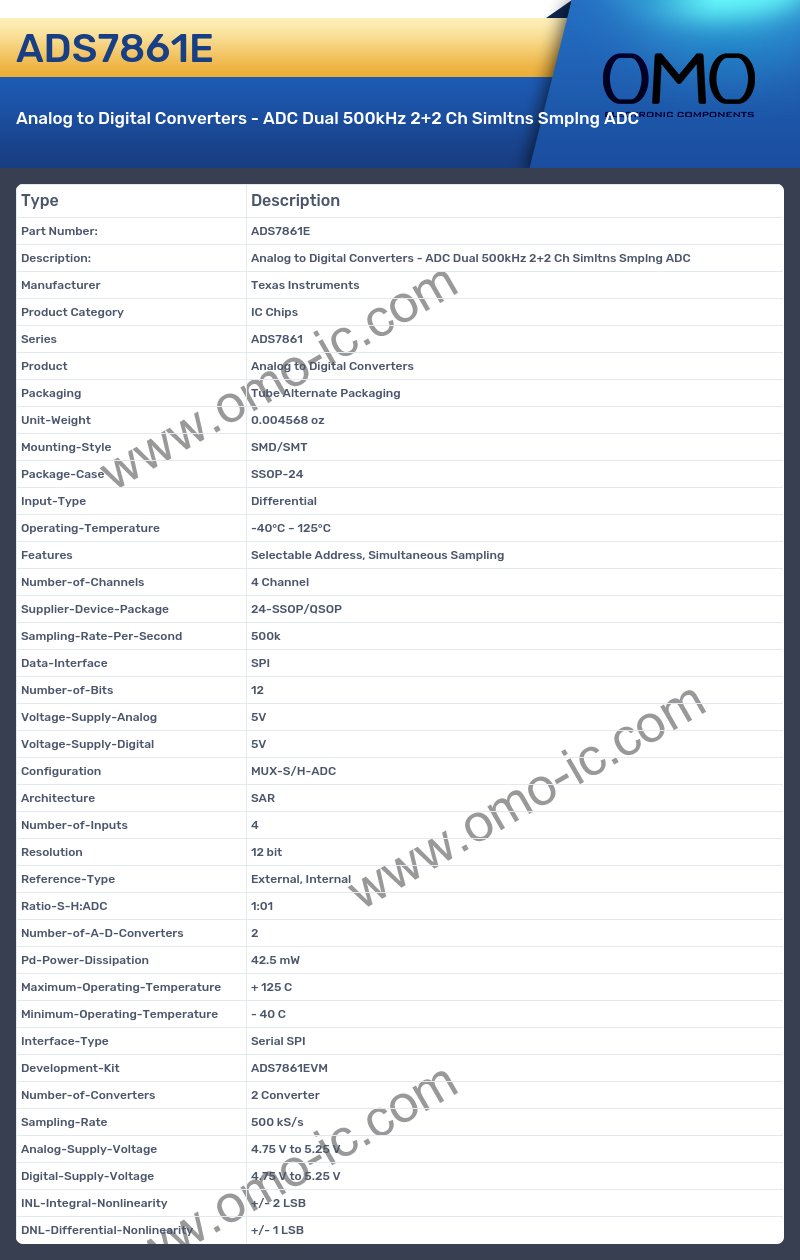

ADS7861E Image

ADS7861E Specifications

• Manufacturer Texas Instruments
• Product Category IC Chips
• Series ADS7861
• Product Analog to Digital Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.004568 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-24
• Input-Type Differential
• Operating-Temperature -40°C ~ 125°C
• Features Selectable Address, Simultaneous Sampling
• Number-of-Channels 4 Channel
• Supplier-Device-Package 24-SSOP/QSOP
• Sampling-Rate-Per-Second 500k
• Data-Interface SPI
• Number-of-Bits 12
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration MUX-S/H-ADC
• Architecture SAR
• Number-of-Inputs 4
• Resolution 12 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1:01
• Number-of-A-D-Converters 2
• Pd-Power-Dissipation 42.5 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial SPI
• Development-Kit ADS7861EVM
• Number-of-Converters 2 Converter
• Sampling-Rate 500 kS/s
• Analog-Supply-Voltage 4.75 V to 5.25 V
• Digital-Supply-Voltage 4.75 V to 5.25 V
• INL-Integral-Nonlinearity +/- 2 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
