ADS7958SRGET

ADS7958SRGET Overview

Product belongs to the microPOWER series. This product is categorized as Analog to Digital Converters Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001926 oz SMD/SMT Mounting-Style VQFN-24 The Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C Number of channels: 4 Channel Supplier device package: 24-VQFN (4x4) This product's 1M. Data-Interface: SPI 8 bits The Voltage-Supply-Analog is 2.7 V ~ 5.25 V. The Voltage Supply Digital for this product is 1.7 V ~ 5.25 V. Configuration MUX-S/H-ADC The architecture of this product is SAR . External is the reference type. 1 units Power-off control: 14.5 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Serial SPI interface type Signal-to-Noise Ratio of 49 dB Number-of-Converters: 1 Converter 1 MS/s Sampling Rate Analog supply voltage: 2.7 V to 5.25 V Digital Supply Voltage: 1.7 V to 5.25 V Integral Nonlinearity: 0.12 %

ADS7958SRGET Image

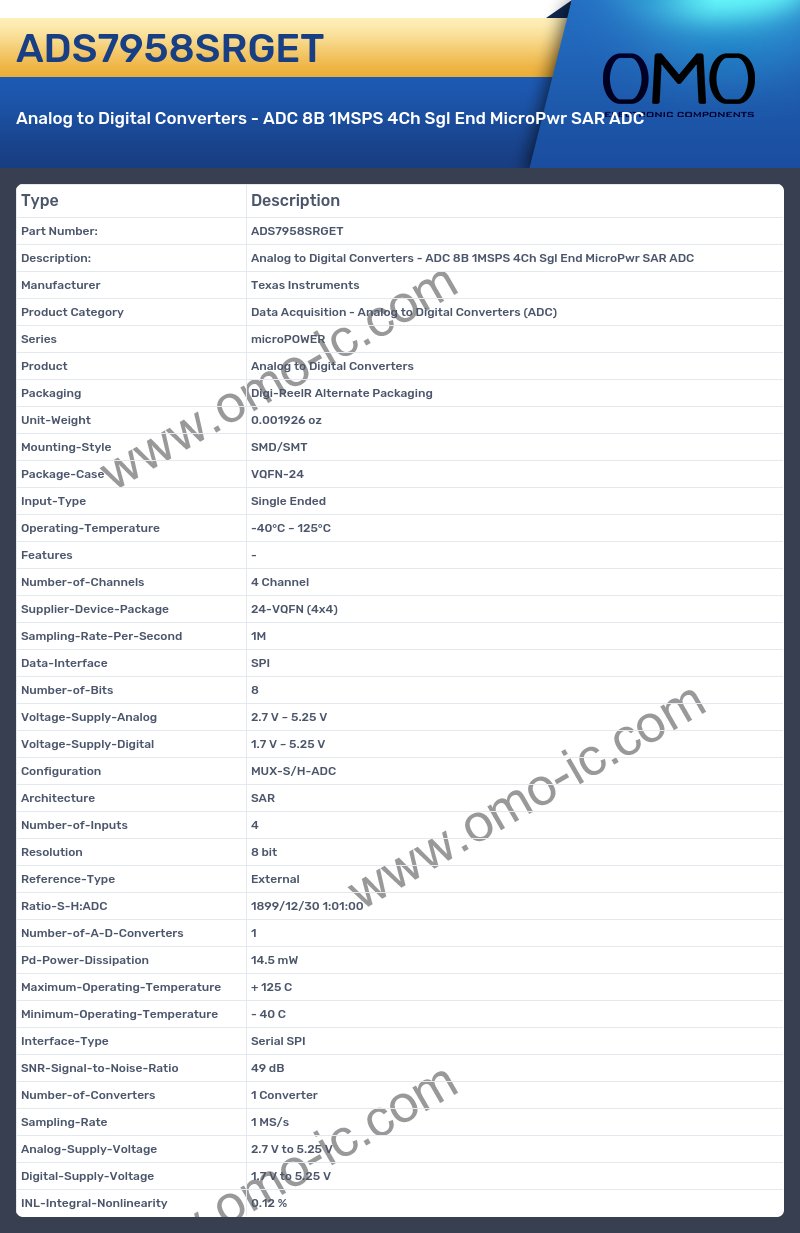

ADS7958SRGET Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series microPOWER
• Product Analog to Digital Converters
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001926 oz
• Mounting-Style SMD/SMT
• Package-Case VQFN-24
• Input-Type Single Ended
• Operating-Temperature -40°C ~ 125°C
• Features -
• Number-of-Channels 4 Channel
• Supplier-Device-Package 24-VQFN (4x4)
• Sampling-Rate-Per-Second 1M
• Data-Interface SPI
• Number-of-Bits 8
• Voltage-Supply-Analog 2.7 V ~ 5.25 V
• Voltage-Supply-Digital 1.7 V ~ 5.25 V
• Configuration MUX-S/H-ADC
• Architecture SAR
• Number-of-Inputs 4
• Resolution 8 bit
• Reference-Type External
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 14.5 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial SPI
• SNR-Signal-to-Noise-Ratio 49 dB
• Number-of-Converters 1 Converter
• Sampling-Rate 1 MS/s
• Analog-Supply-Voltage 2.7 V to 5.25 V
• Digital-Supply-Voltage 1.7 V to 5.25 V
• INL-Integral-Nonlinearity 0.12 %
