ADS8519IDB

ADS8519IDB Overview

Product belongs to the ADS8519 series. This product is categorized as Analog to Digital Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.007351 oz SMD/SMT Mounting-Style SSOP-28 The Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel Supplier device package: 28-SSOP This product's 250k. Data-Interface: SPI 16 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 1.65 V ~ 5.25 V. Configuration S/H-ADC The architecture of this product is SAR . External, Internal is the reference type. 1 units Power-off control: 125 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial SPI interface type Signal-to-Noise Ratio of 92 dB Number-of-Converters: 1 Converter 250 kS/s Sampling Rate Analog supply voltage: 4.75 V to 5.25 V Digital Supply Voltage: 1.65 V to 5.25 V Integral Nonlinearity: +/- 3 LSB Differential nonlinearity: +/- 2 LSB

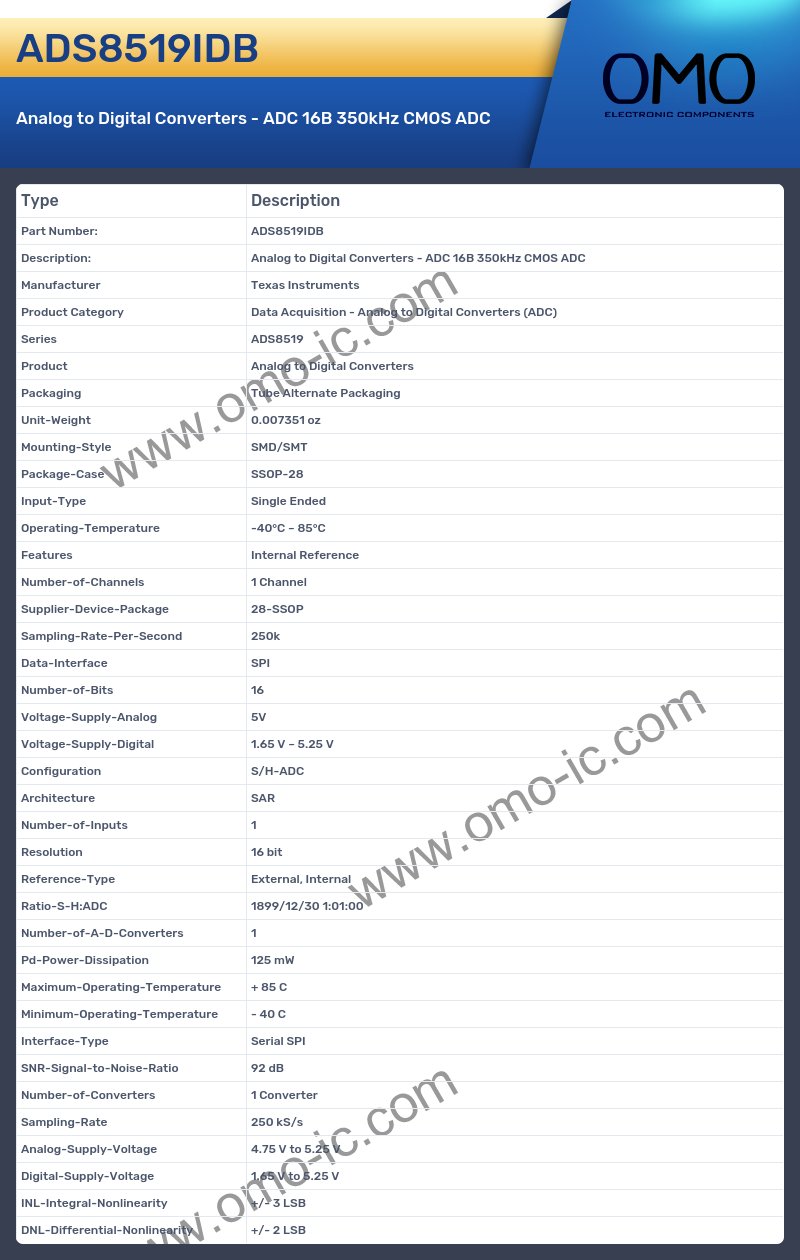

ADS8519IDB Image

ADS8519IDB Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS8519
• Product Analog to Digital Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.007351 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-28
• Input-Type Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features Internal Reference
• Number-of-Channels 1 Channel
• Supplier-Device-Package 28-SSOP
• Sampling-Rate-Per-Second 250k
• Data-Interface SPI
• Number-of-Bits 16
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 1.65 V ~ 5.25 V
• Configuration S/H-ADC
• Architecture SAR
• Number-of-Inputs 1
• Resolution 16 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 125 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial SPI
• SNR-Signal-to-Noise-Ratio 92 dB
• Number-of-Converters 1 Converter
• Sampling-Rate 250 kS/s
• Analog-Supply-Voltage 4.75 V to 5.25 V
• Digital-Supply-Voltage 1.65 V to 5.25 V
• INL-Integral-Nonlinearity +/- 3 LSB
• DNL-Differential-Nonlinearity +/- 2 LSB
