AFE5807ZCF

AFE5807ZCF Overview

Product belongs to the AFE5807 series. This product is categorized as Analog Front Ends Type: Ultrasound AFE Tray is the packaging method for this product SMD/SMT Mounting-Style nFBGA-135 Number of channels: 8 Supplier device package: 135-NFBGA (15x9) 12 bits The Voltage-Supply-Analog is 1.7 V ~ 1.9 V, 3.15 V ~ 3.6 V, 5V. The Voltage Supply Digital for this product is 1.7 V ~ 1.9 V. Power-off control: 148 mW Maximum operating temperature of + 85 C Minimum operating temperature: 0 C Serial SPI interface type Input Voltage Range: - 0.3 V to + 3.9 V Maximum supply voltage of 5.5 V Minimum supply voltage is 1.7 V 80 MS/s Sampling Rate Reference voltage is 1.4 V .

AFE5807ZCF Image

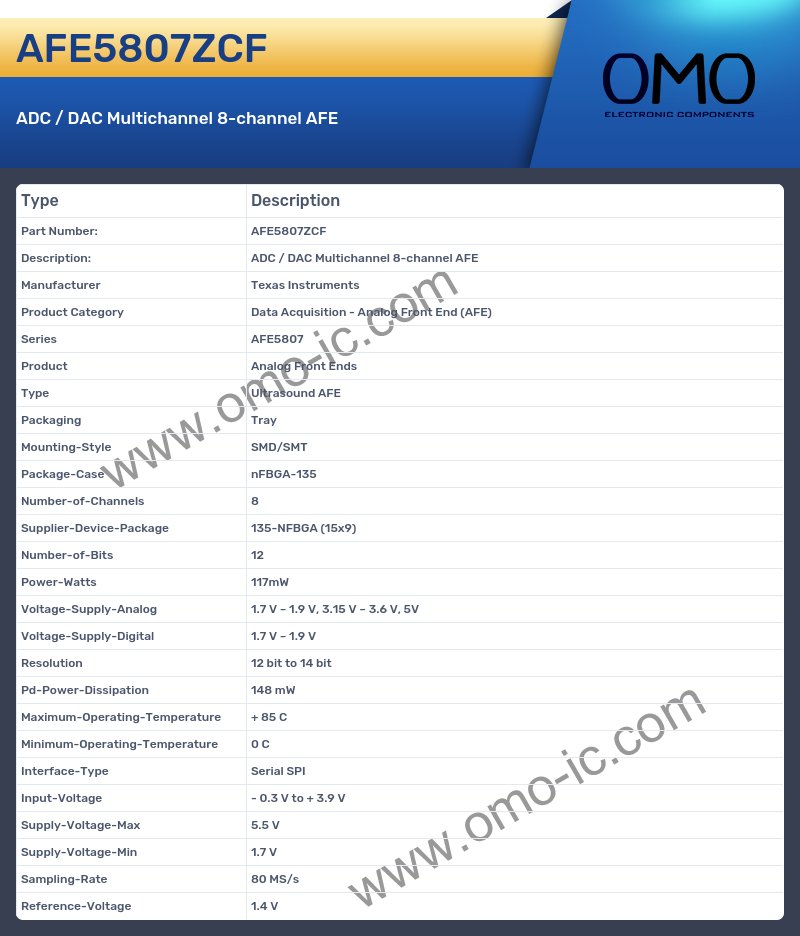

AFE5807ZCF Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog Front End (AFE)
• Series AFE5807
• Product Analog Front Ends
• Type Ultrasound AFE
• Packaging Tray
• Mounting-Style SMD/SMT
• Package-Case nFBGA-135
• Number-of-Channels 8
• Supplier-Device-Package 135-NFBGA (15x9)
• Number-of-Bits 12
• Power-Watts 117mW
• Voltage-Supply-Analog 1.7 V ~ 1.9 V, 3.15 V ~ 3.6 V, 5V
• Voltage-Supply-Digital 1.7 V ~ 1.9 V
• Resolution 12 bit to 14 bit
• Pd-Power-Dissipation 148 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature 0 C
• Interface-Type Serial SPI
• Input-Voltage - 0.3 V to + 3.9 V
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 1.7 V
• Sampling-Rate 80 MS/s
• Reference-Voltage 1.4 V
