BAT43

BAT43 Overview

Product belongs to the BAT43 series. This product is categorized as Schottky Diodes Cut Tape (CT) Alternate Packaging is the packaging method for this product Weight of 0.004833 oz Through Hole Mounting-Style DO-204AH, DO-35, Axial Si is the technology used. Through Hole mounting type Supplier device package: DO-35 Configuration Single Operating frequency: Small Signal = Schottky diode type The 500nA @ 25V Current-Reverse-Leakage-Vr 1. Vf Max 1V @ 200mA is the Voltage-Forward; Maximum DC reverse voltage 30V The 200mA (DC) Current-Average-Rectified-Io; The capacitance value of this product is 7pF @ 1V, 1MHz for maximum efficiency. Operating-Temperature-Junction: -65°C ~ 125°C Maximum operating temperature of + 125 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 0.45 V Ir-Reverse-Current is 0.5 uA. If-Forward-Current is 0.2 A. VRRM (30 V) Reverse Voltage 4 A IFSM Forward Surge Current The 5 ns TRR-Reverse-Recovery-time

BAT43 Image

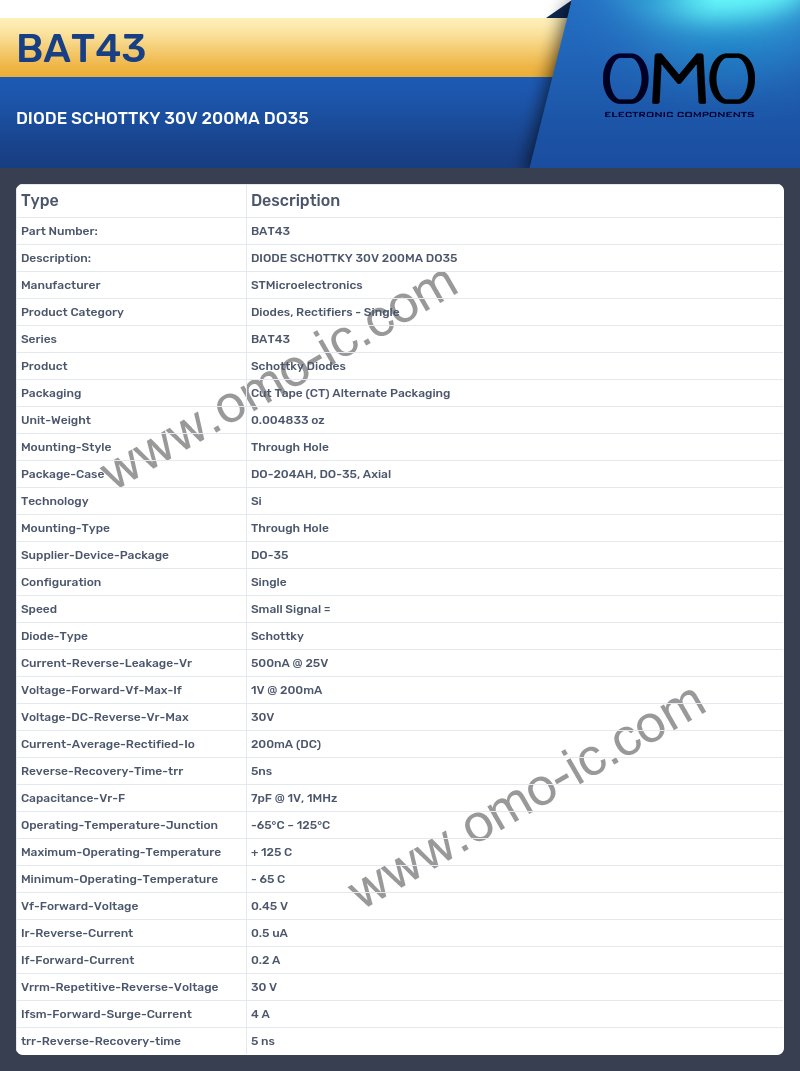

BAT43 Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series BAT43
• Product Schottky Diodes
• Packaging Cut Tape (CT) Alternate Packaging
• Unit-Weight 0.004833 oz
• Mounting-Style Through Hole
• Package-Case DO-204AH, DO-35, Axial
• Technology Si
• Mounting-Type Through Hole
• Supplier-Device-Package DO-35
• Configuration Single
• Speed Small Signal =
• Diode-Type Schottky
• Current-Reverse-Leakage-Vr 500nA @ 25V
• Voltage-Forward-Vf-Max-If 1V @ 200mA
• Voltage-DC-Reverse-Vr-Max 30V
• Current-Average-Rectified-Io 200mA (DC)
• Reverse-Recovery-Time-trr 5ns
• Capacitance-Vr-F 7pF @ 1V, 1MHz
• Operating-Temperature-Junction -65°C ~ 125°C
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 0.45 V
• Ir-Reverse-Current 0.5 uA
• If-Forward-Current 0.2 A
• Vrrm-Repetitive-Reverse-Voltage 30 V
• Ifsm-Forward-Surge-Current 4 A
• trr-Reverse-Recovery-time 5 ns
