| Mfr. #: | BAT54WFILMY |
|---|---|
| Manufacturer: | STMicroelectronics |
| Description: | Schottky Diodes & Rectifiers 40V Automotive SS 300mA 7pF AEC-Q101 |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | BAT54WFILMY Datasheet |
Product belongs to the Q Automotive series. This product is categorized as Schottky Diodes Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004395 oz SMD/SMT Mounting-Style SC-70, SOT-323 Si is the technology used. Surface Mount mounting type Supplier device package: SOT-323 Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Schottky diode type The 1μA @ 30V Current-Reverse-Leakage-Vr 1. Vf Max 900mV @ 100mA is the Voltage-Forward; Maximum DC reverse voltage 40V The 300mA (DC) Current-Average-Rectified-Io; The capacitance value of this product is 10pF @ 1V, 1MHz for maximum efficiency. Operating-Temperature-Junction: -40°C ~ 150°C Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Vf-Forward-Voltage: 240 mV Ir-Reverse-Current is 100 uA. If-Forward-Current is 300 mA. VRRM (40 V) Reverse Voltage 1 A IFSM Forward Surge Current
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

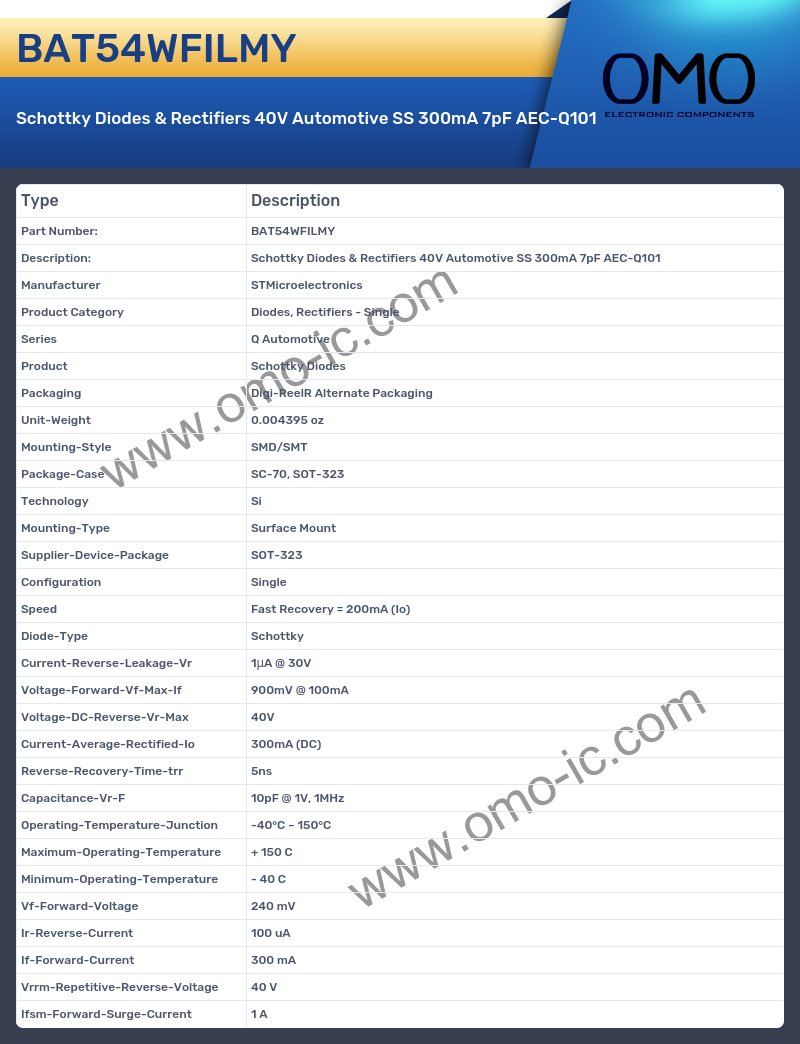

BAT54WFILMY Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed Q Automotive
A: Is the cutoff frequency of the product Product?
Q: Yes, the product's Product is indeed Schottky Diodes
A: At what frequency does the Packaging?
Q: The product Packaging is Digi-ReelR Alternate Packaging.
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.004395 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed SC-70, SOT-323
A: Is the cutoff frequency of the product Technology?
Q: Yes, the product's Technology is indeed Si
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Surface Mount
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed SOT-323
A: At what frequency does the Configuration?
Q: The product Configuration is Single.
A: At what frequency does the Speed?
Q: The product Speed is Fast Recovery = 200mA (Io).
A: At what frequency does the Diode-Type?
Q: The product Diode-Type is Schottky.
A: What is the Current-Reverse-Leakage-Vr of the product?
Q: The Current-Reverse-Leakage-Vr of the product is 1μA @ 30V.
A: Is the cutoff frequency of the product Voltage-Forward-Vf-Max-If?
Q: Yes, the product's Voltage-Forward-Vf-Max-If is indeed 900mV @ 100mA
A: What is the Voltage-DC-Reverse-Vr-Max of the product?
Q: The Voltage-DC-Reverse-Vr-Max of the product is 40V.
A: What is the Current-Average-Rectified-Io of the product?
Q: The Current-Average-Rectified-Io of the product is 300mA (DC).
A: At what frequency does the Capacitance-Vr-F?
Q: The product Capacitance-Vr-F is 10pF @ 1V, 1MHz.
A: What is the Operating-Temperature-Junction of the product?
Q: The Operating-Temperature-Junction of the product is -40°C ~ 150°C.
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 150 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 40 C.
A: What is the Vf-Forward-Voltage of the product?
Q: The Vf-Forward-Voltage of the product is 240 mV.
A: At what frequency does the Ir-Reverse-Current?
Q: The product Ir-Reverse-Current is 100 uA.
A: What is the If-Forward-Current of the product?
Q: The If-Forward-Current of the product is 300 mA.
A: Is the cutoff frequency of the product Vrrm-Repetitive-Reverse-Voltage?
Q: Yes, the product's Vrrm-Repetitive-Reverse-Voltage is indeed 40 V
A: At what frequency does the Ifsm-Forward-Surge-Current?
Q: The product Ifsm-Forward-Surge-Current is 1 A.
