BD140

BD140 Overview

Product belongs to the 500V Transistors series. Tube is the packaging method for this product Through Hole Mounting-Style TO-225AA, TO-126-3 Through Hole mounting type Supplier device package: SOT-32-3 Configuration Single Transistor type: PNP Maximum current collector Ic is 1.5A . Maximum collector-emitter breakdown voltage of 80V DC current gain minimum (hFE) of Ic/Vce at 40 @ 150mA, 2V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 500mV @ 50mA, 500mA Power-off control: 12.5 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to - 80 V The transistor polarity is PNP. Saturation voltage between collector and emitter is - 0.5 V + 0.5 V The - 80 V voltage rating is 40 V. - 5 V rating of 5 V Max DC collector current: 1.5 A This product is capable of handling a - 1.5 A continuous collector current. Minimum hfe for DC collector-base gain is 40. 250 of 605.

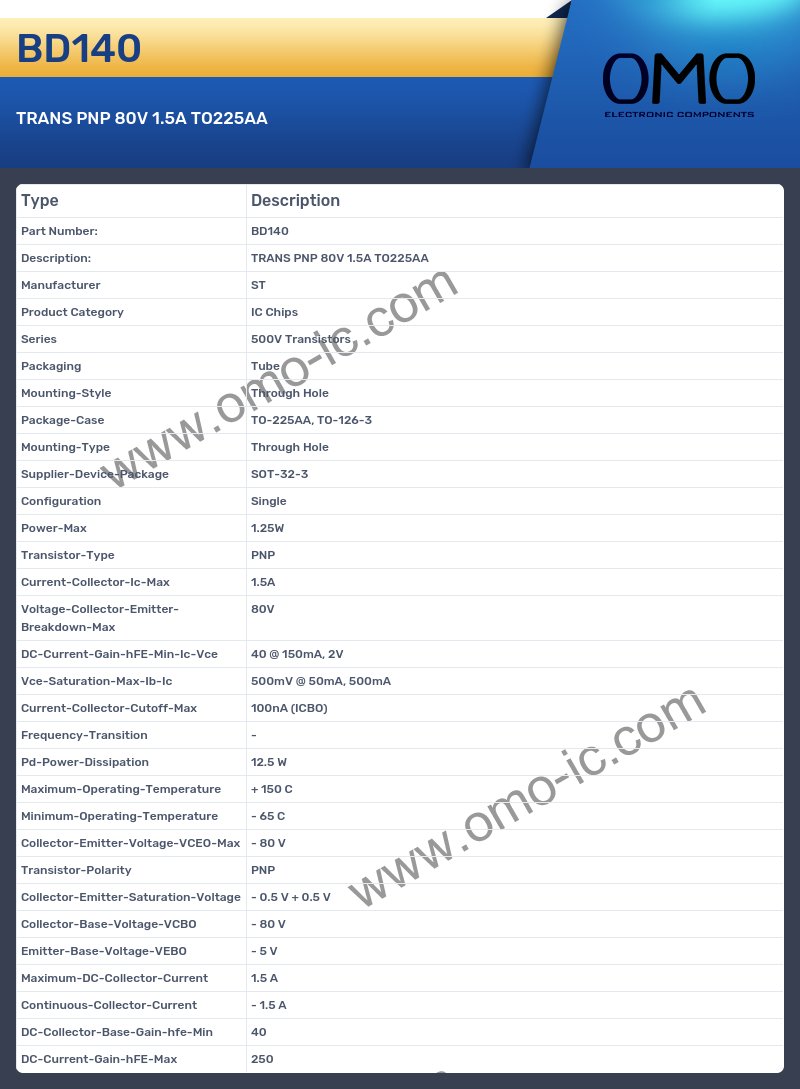

BD140 Image

BD140 Specifications

• Manufacturer ST
• Product Category IC Chips
• Series 500V Transistors
• Packaging Tube
• Mounting-Style Through Hole
• Package-Case TO-225AA, TO-126-3
• Mounting-Type Through Hole
• Supplier-Device-Package SOT-32-3
• Configuration Single
• Power-Max 1.25W
• Transistor-Type PNP
• Current-Collector-Ic-Max 1.5A
• Voltage-Collector-Emitter-Breakdown-Max 80V
• DC-Current-Gain-hFE-Min-Ic-Vce 40 @ 150mA, 2V
• Vce-Saturation-Max-Ib-Ic 500mV @ 50mA, 500mA
• Current-Collector-Cutoff-Max 100nA (ICBO)
• Frequency-Transition -
• Pd-Power-Dissipation 12.5 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Collector-Emitter-Voltage-VCEO-Max - 80 V
• Transistor-Polarity PNP
• Collector-Emitter-Saturation-Voltage - 0.5 V + 0.5 V
• Collector-Base-Voltage-VCBO - 80 V
• Emitter-Base-Voltage-VEBO - 5 V
• Maximum-DC-Collector-Current 1.5 A
• Continuous-Collector-Current - 1.5 A
• DC-Collector-Base-Gain-hfe-Min 40
• DC-Current-Gain-hFE-Max 250
