BQ24201DGN

BQ24201DGN Overview

Product belongs to the BQ24201 series. Tube is the packaging method for this product Weight of 0.000861 oz SMD/SMT Mounting-Style HVSSOP-8 Operational temperature range: -40°C ~ 125°C (TJ) Lithium-Ion/Polymer battery chemistry supported Number of Cells: 1 Interface: - Supplier device package: 8-MSOP-PowerPad Charging Mode: Constant This product has Current, Timer including Auto Retry, Circuit Breaker, Current Limit, Fault Timeout, Latched Fault, OVP, and UVLO. The maximum voltage supply is 13.5V. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 2.8 V to 13.5 V supply voltage for reliable performance. Output voltage: 4.2 V Output current: 500 mA This product features a Li-Ion Li-Polymer battery for long-lasting power.

BQ24201DGN Image

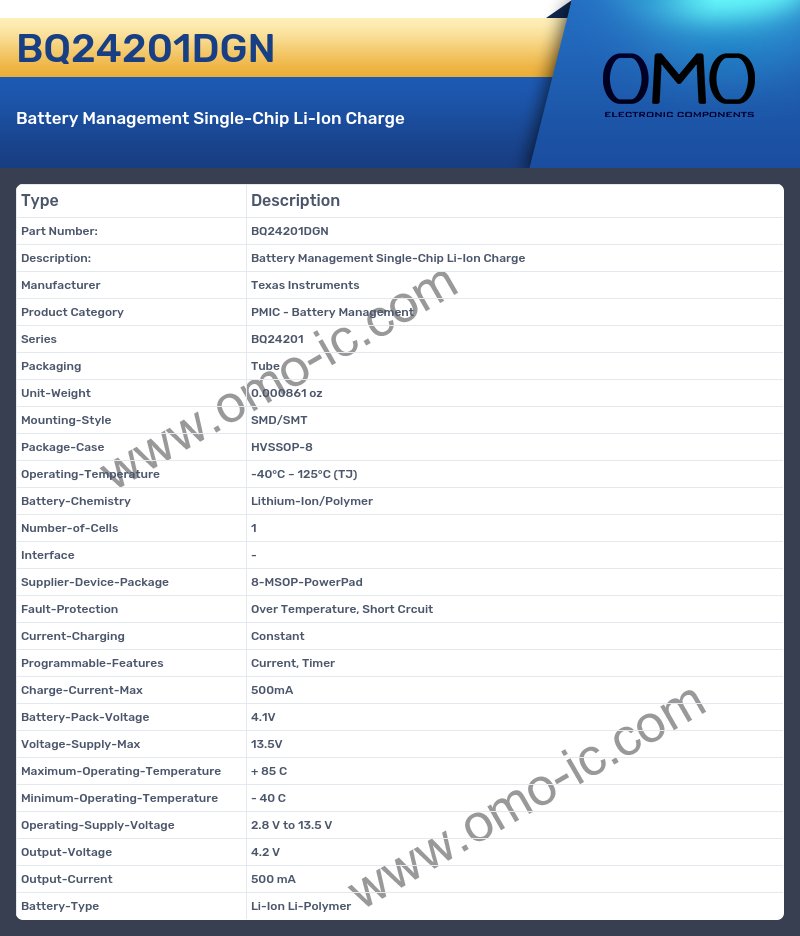

BQ24201DGN Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Battery Management
• Series BQ24201
• Packaging Tube
• Unit-Weight 0.000861 oz
• Mounting-Style SMD/SMT
• Package-Case HVSSOP-8
• Operating-Temperature -40°C ~ 125°C (TJ)
• Battery-Chemistry Lithium-Ion/Polymer
• Number-of-Cells 1
• Interface -
• Supplier-Device-Package 8-MSOP-PowerPad
• Fault-Protection Over Temperature, Short Crcuit
• Current-Charging Constant
• Programmable-Features Current, Timer
• Charge-Current-Max 500mA
• Battery-Pack-Voltage 4.1V
• Voltage-Supply-Max 13.5V
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.8 V to 13.5 V
• Output-Voltage 4.2 V
• Output-Current 500 mA
• Battery-Type Li-Ion Li-Polymer
