BQ4285EP

BQ4285EP Overview

Product belongs to the BQ4285E series. This product is categorized as Real Time Clocks Type: Clock/Calendar Tube is the packaging method for this product Weight of 0.131925 oz Through Hole Mounting-Style PDIP-24 Operational temperature range: 0°C ~ 70°C Through Hole mounting type Product function is Alarm Calendar Clock NV SRAM Control. Interface: Parallel Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 24-PDIP This product comes with a 114B memory size. This product uses a HH:MM:SS (12/24 hr) time format. The product uses a YY-MM-DD-dd date format. Voltage supply range from 2.5 V ~ 4 V The Current-Timekeeping-Max for this product is 300μA @ 5V. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product does not have Backup Switching capability. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V This product uses an Multiplexed interface for RTC bus communication. This product features an 114 B of 256 kB for reliable real-time clock functionality.

BQ4285EP Image

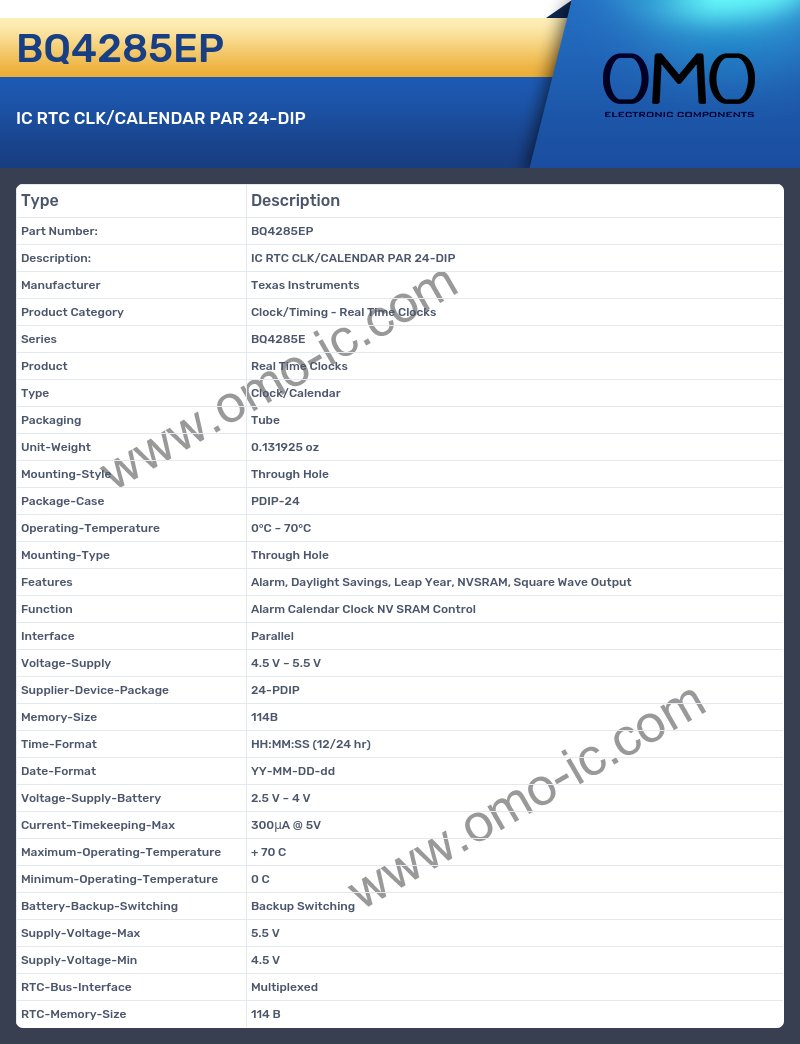

BQ4285EP Specifications

• Manufacturer Texas Instruments
• Product Category Clock/Timing - Real Time Clocks
• Series BQ4285E
• Product Real Time Clocks
• Type Clock/Calendar
• Packaging Tube
• Unit-Weight 0.131925 oz
• Mounting-Style Through Hole
• Package-Case PDIP-24
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Through Hole
• Features Alarm, Daylight Savings, Leap Year, NVSRAM, Square Wave Output
• Function Alarm Calendar Clock NV SRAM Control
• Interface Parallel
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 24-PDIP
• Memory-Size 114B
• Time-Format HH:MM:SS (12/24 hr)
• Date-Format YY-MM-DD-dd
• Voltage-Supply-Battery 2.5 V ~ 4 V
• Current-Timekeeping-Max 300μA @ 5V
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Battery-Backup-Switching Backup Switching
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• RTC-Bus-Interface Multiplexed
• RTC-Memory-Size 114 B
