BTW69-800RG

BTW69-800RG Overview

Product belongs to the BTW69 series. Tube is the packaging method for this product Weight of 0.238311 oz Through Hole Mounting-Style TOP-3 Operational temperature range: -40°C ~ 125°C Through Hole mounting type Supplier device package: TOP3 150mA of Current-Hold-Ih-Max The Voltage-Off-State is 800V. Voltage-Gate-Trigger-Vgt-Max 1.3V 80mA of Current-Gate-Trigger-Igt-Max Maximum 1.9V On-State Voltage Its 32A Current-On-State-It-AV-Max 50A is the maximum Current-On-State-It-RMS. 10μA is the Current-Off-State-Max; This product can handle a non-repetitive surge current of 580A, 610A for 50-60Hz Itsm. SCR-Type: Standard Recovery; Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C The 5 V Rated Repetitive Off-State Voltage VDRM; 150 mA Maximun Holding Current of Ih The Gate-Trigger-Voltage-Vgt attribute is 1.3 V on this product. Gate-Trigger-Current-Igt: 80 mA; 610 A Non-Repetitive On-State Current The 10 uA Off-State Leakage Current in VDRM and IDRM. The Maximum-Gate-Peak-Inverse-Voltage is 5 V. Vf-Forward-Voltage: 1.9 V

BTW69-800RG Image

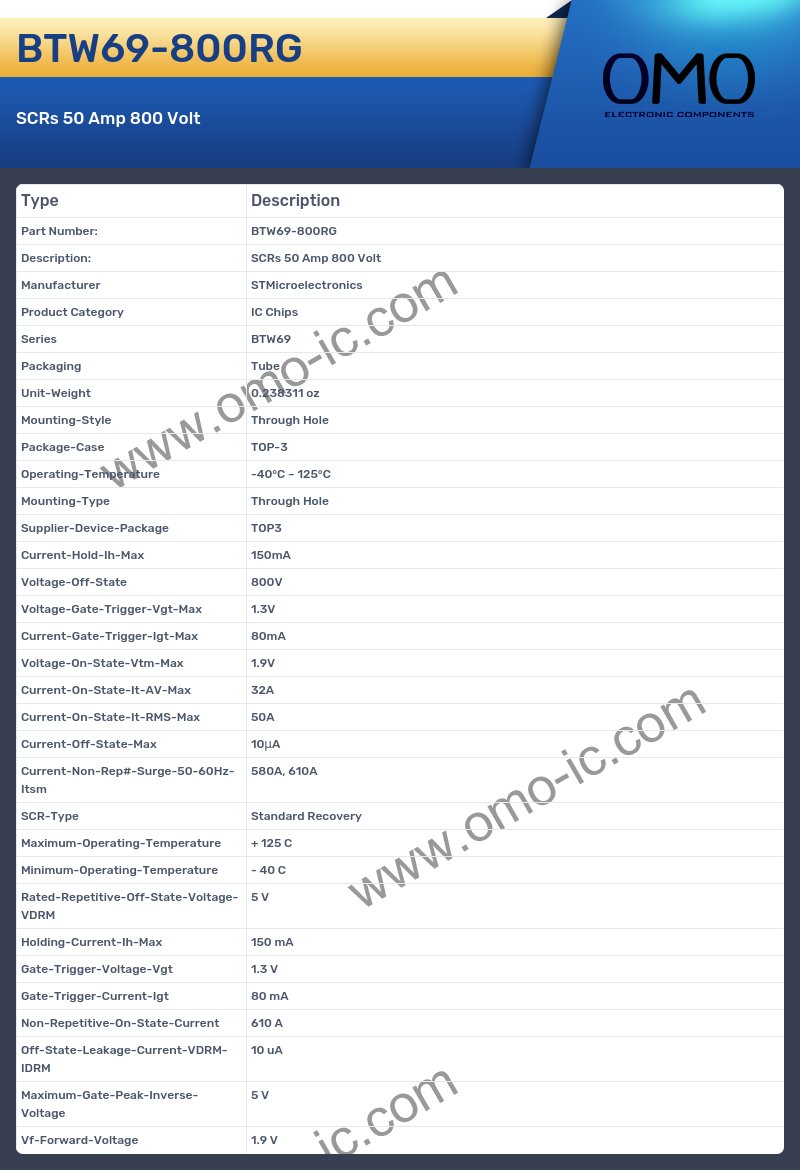

BTW69-800RG Specifications

• Manufacturer STMicroelectronics
• Product Category IC Chips
• Series BTW69
• Packaging Tube
• Unit-Weight 0.238311 oz
• Mounting-Style Through Hole
• Package-Case TOP-3
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Through Hole
• Supplier-Device-Package TOP3
• Current-Hold-Ih-Max 150mA
• Voltage-Off-State 800V
• Voltage-Gate-Trigger-Vgt-Max 1.3V
• Current-Gate-Trigger-Igt-Max 80mA
• Voltage-On-State-Vtm-Max 1.9V
• Current-On-State-It-AV-Max 32A
• Current-On-State-It-RMS-Max 50A
• Current-Off-State-Max 10μA
• Current-Non-Rep#-Surge-50-60Hz-Itsm 580A, 610A
• SCR-Type Standard Recovery
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Rated-Repetitive-Off-State-Voltage-VDRM 5 V
• Holding-Current-Ih-Max 150 mA
• Gate-Trigger-Voltage-Vgt 1.3 V
• Gate-Trigger-Current-Igt 80 mA
• Non-Repetitive-On-State-Current 610 A
• Off-State-Leakage-Current-VDRM-IDRM 10 uA
• Maximum-Gate-Peak-Inverse-Voltage 5 V
• Vf-Forward-Voltage 1.9 V
