CC1010PAG

CC1010PAG Overview

Product belongs to the CC1010 series. Type: TxRx + MCU Tray Alternate Packaging is the packaging method for this product Weight of 0.009690 oz SMD/SMT Mounting-Style TQFP-64 This product's 315MHz, 433MHz, 868MHz, 915MHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C Sensitivity: -107dBm Voltage Supply Range: 2.7 V ~ 3.6 V This product comes with a 32kB Flash, 2kB SRAM memory size. Data rate maximum is 76.8kBaud . Serial Interfaces: SPI, UART 0dBm Current receiving is 9.1mA ~ 11.9mA General ISM is the RF family standard. FSK modulated The device has 26 GPIOs. 5.3mA ~ 26.6mA range: 8.7mA to 32.1mA Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 3.3 V supply voltage for reliable performance.

CC1010PAG Image

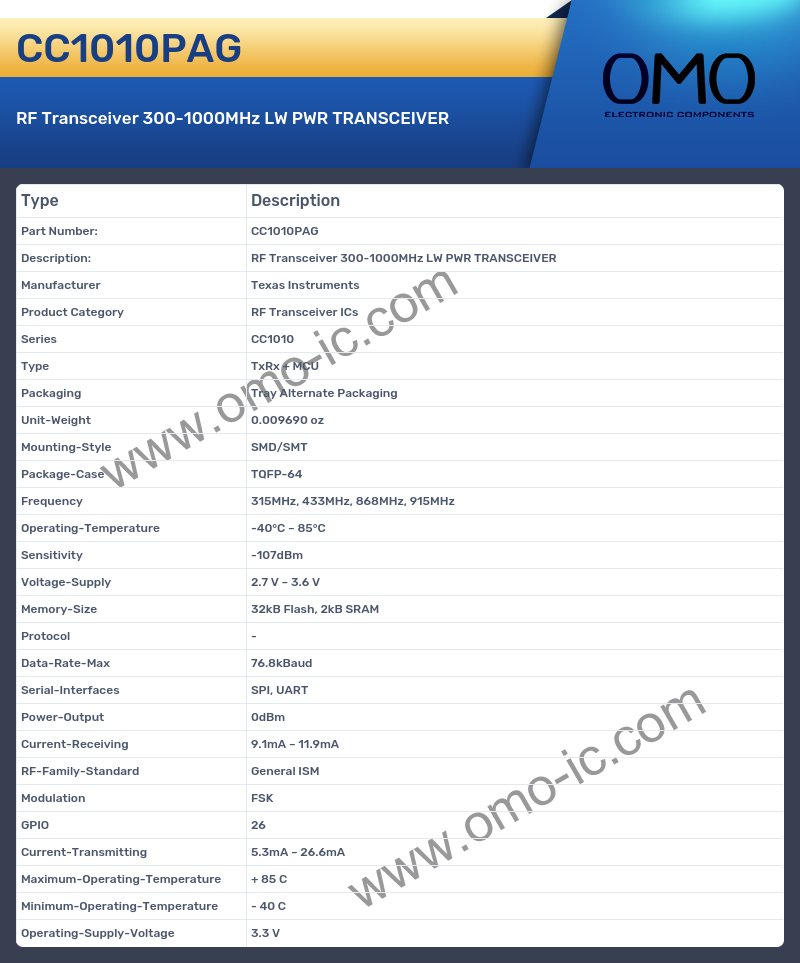

CC1010PAG Specifications

• Manufacturer Texas Instruments
• Product Category RF Transceiver ICs
• Series CC1010
• Type TxRx + MCU
• Packaging Tray Alternate Packaging
• Unit-Weight 0.009690 oz
• Mounting-Style SMD/SMT
• Package-Case TQFP-64
• Frequency 315MHz, 433MHz, 868MHz, 915MHz
• Operating-Temperature -40°C ~ 85°C
• Sensitivity -107dBm
• Voltage-Supply 2.7 V ~ 3.6 V
• Memory-Size 32kB Flash, 2kB SRAM
• Protocol -
• Data-Rate-Max 76.8kBaud
• Serial-Interfaces SPI, UART
• Power-Output 0dBm
• Current-Receiving 9.1mA ~ 11.9mA
• RF-Family-Standard General ISM
• Modulation FSK
• GPIO 26
• Current-Transmitting 5.3mA ~ 26.6mA
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 3.3 V
