CC1100ERGPR

CC1100ERGPR Overview

Product belongs to the CC1100E series. Type: TxRx + MCU Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002469 oz SMD/SMT Mounting-Style VQFN-20 This product's 470MHz ~ 510MHz, 950MHz ~ 960MHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C Frequency Bandwidth: 470 MHz to 510 MHz 950 MHz to 960 MHz Sensitivity: -112dBm Voltage Supply Range: 1.8 V ~ 3.6 V This product comes with a - memory size. Data rate maximum is 500kBaud . Serial Interfaces: SPI 10dBm Current receiving is 15.4mA ~ 20mA General ISM is the RF family standard. 2FSK, ASK, GFSK, MSK, OOK modulated The device has 1 GPIOs. 15.8mA ~ 30.9mA range: 8.7mA to 32.1mA Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 1.8 V to 3.6 V supply voltage for reliable performance. SPI interface type Maximum data rate is 500 kb/s Maximum supply voltage of 3.6 V Minimum supply voltage is 1.8 V The product has 1 receivers. 2-FSK ASK FSK GFSK MSK OOK are the supported modulation formats. The number of transmitters is 1.

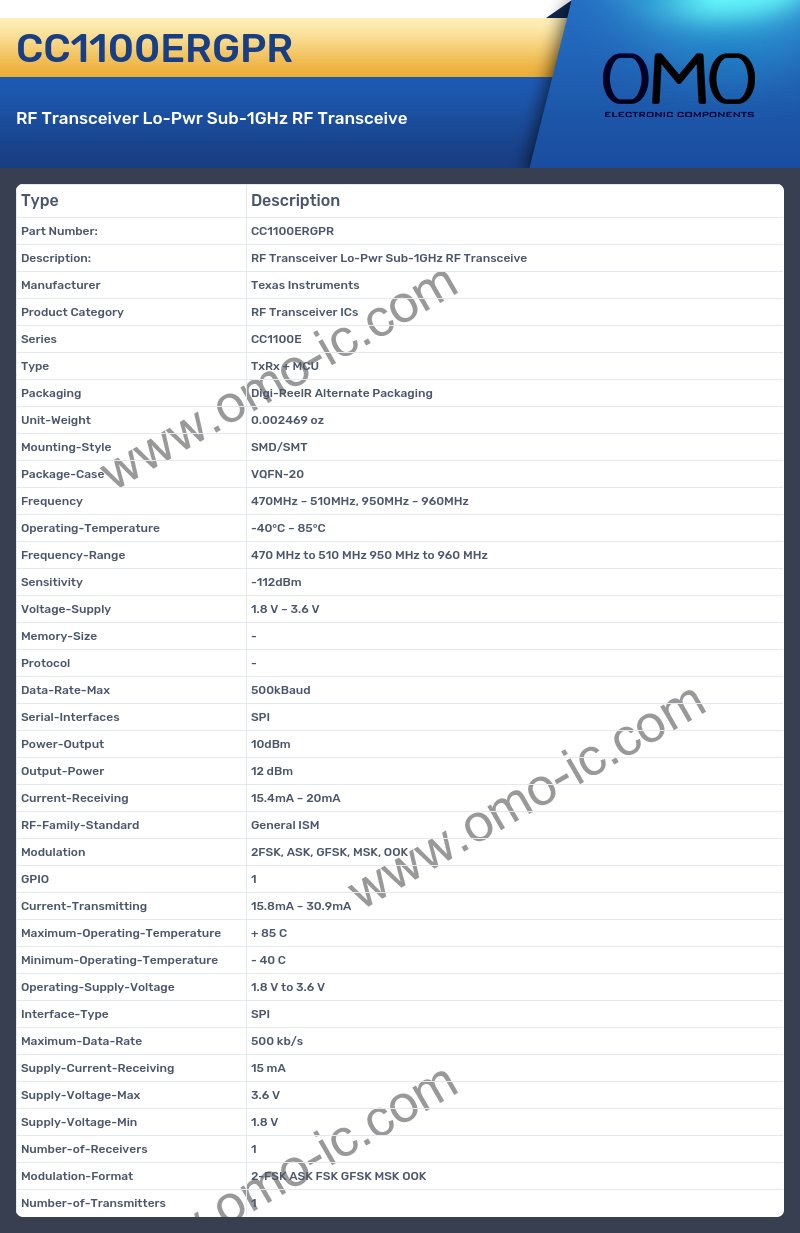

CC1100ERGPR Image

CC1100ERGPR Specifications

• Manufacturer Texas Instruments
• Product Category RF Transceiver ICs
• Series CC1100E
• Type TxRx + MCU
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002469 oz
• Mounting-Style SMD/SMT
• Package-Case VQFN-20
• Frequency 470MHz ~ 510MHz, 950MHz ~ 960MHz
• Operating-Temperature -40°C ~ 85°C
• Frequency-Range 470 MHz to 510 MHz 950 MHz to 960 MHz
• Sensitivity -112dBm
• Voltage-Supply 1.8 V ~ 3.6 V
• Memory-Size -
• Protocol -
• Data-Rate-Max 500kBaud
• Serial-Interfaces SPI
• Power-Output 10dBm
• Output-Power 12 dBm
• Current-Receiving 15.4mA ~ 20mA
• RF-Family-Standard General ISM
• Modulation 2FSK, ASK, GFSK, MSK, OOK
• GPIO 1
• Current-Transmitting 15.8mA ~ 30.9mA
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 1.8 V to 3.6 V
• Interface-Type SPI
• Maximum-Data-Rate 500 kb/s
• Supply-Current-Receiving 15 mA
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 1.8 V
• Number-of-Receivers 1
• Modulation-Format 2-FSK ASK FSK GFSK MSK OOK
• Number-of-Transmitters 1
