CC1125RHBR

CC1125RHBR Overview

Product belongs to the CC1125 series. Type: TxRx + MCU Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002547 oz SMD/SMT Mounting-Style VQFN-32 This product's 164MHz ~ 192MHz, 274MHz ~ 320MHz, 410MHz ~ 480MHz, 820MHz ~ 960MHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C Frequency Bandwidth: 164 MHz to 192 MHz 274 MHz to 320 MHz 410 MHz to 480 MHz 820 MHz to 960 MHz Sensitivity: -129dBm Voltage Supply Range: 2 V ~ 3.6 V This product comes with a 4kB ROM, 256B RAM memory size. Data rate maximum is 200kbps . Serial Interfaces: SPI 16dBm Current receiving is 17mA ~ 27mA General ISM is the RF family standard. 2FSK, 2GFSK, 4FSK, 4GFSK, MSK, OOK modulated The device has 4 GPIOs. 26mA ~ 56mA range: 8.7mA to 32.1mA Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 2 V to 3.6 V supply voltage for reliable performance. SPI interface type Maximum data rate is 200 kb/s The CC1125DK. Maximum supply voltage of 3.6 V Minimum supply voltage is 2 V The product has 1 receivers. 2-FSK 2-GFSK 4-FSK 4-GFSK ASK MSK OOK are the supported modulation formats. The number of transmitters is 1.

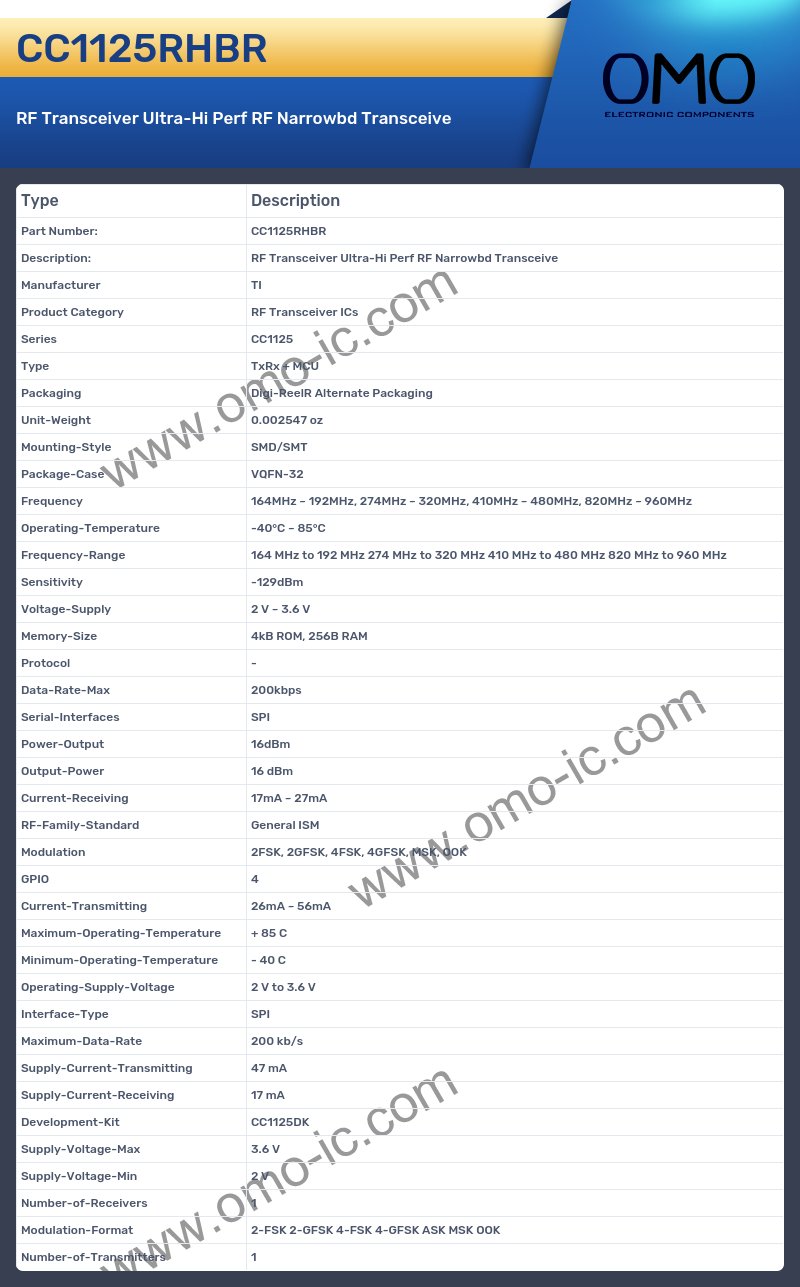

CC1125RHBR Image

CC1125RHBR Specifications

• Manufacturer TI
• Product Category RF Transceiver ICs
• Series CC1125
• Type TxRx + MCU
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002547 oz
• Mounting-Style SMD/SMT
• Package-Case VQFN-32
• Frequency 164MHz ~ 192MHz, 274MHz ~ 320MHz, 410MHz ~ 480MHz, 820MHz ~ 960MHz
• Operating-Temperature -40°C ~ 85°C
• Frequency-Range 164 MHz to 192 MHz 274 MHz to 320 MHz 410 MHz to 480 MHz 820 MHz to 960 MHz
• Sensitivity -129dBm
• Voltage-Supply 2 V ~ 3.6 V
• Memory-Size 4kB ROM, 256B RAM
• Protocol -
• Data-Rate-Max 200kbps
• Serial-Interfaces SPI
• Power-Output 16dBm
• Output-Power 16 dBm
• Current-Receiving 17mA ~ 27mA
• RF-Family-Standard General ISM
• Modulation 2FSK, 2GFSK, 4FSK, 4GFSK, MSK, OOK
• GPIO 4
• Current-Transmitting 26mA ~ 56mA
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2 V to 3.6 V
• Interface-Type SPI
• Maximum-Data-Rate 200 kb/s
• Supply-Current-Transmitting 47 mA
• Supply-Current-Receiving 17 mA
• Development-Kit CC1125DK
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 2 V
• Number-of-Receivers 1
• Modulation-Format 2-FSK 2-GFSK 4-FSK 4-GFSK ASK MSK OOK
• Number-of-Transmitters 1
