CC2560BYFVT

CC2560BYFVT Overview

Product belongs to the - series. Type: TxRx Only Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style VQFNP-76 This product's 2.4GHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C Frequency Bandwidth: 2.402 GHz to 2.48 GHz Sensitivity: -95dBm Voltage Supply Range: 2.2 V ~ 4.8 V This product comes with a - memory size. Data rate maximum is 4Mbps . Serial Interfaces: I2S, UART 12dBm Current receiving is 40.5mA ~ 41.2mA Bluetooth is the RF family standard. GFSK, GMSK modulated The device has GPIOs. 40.5mA ~ 41.2mA range: 8.7mA to 32.1mA Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 2.2 V to 4.8 V supply voltage for reliable performance. I2S interface type Maximum data rate is 3000 kb/s The MSP-WDS430BT1000AD. Maximum supply voltage of 4.8 V Minimum supply voltage is 2.2 V The product has 1 Receiver receivers. BR EDR are the supported modulation formats. The number of transmitters is 1 Transmitter.

CC2560BYFVT Image

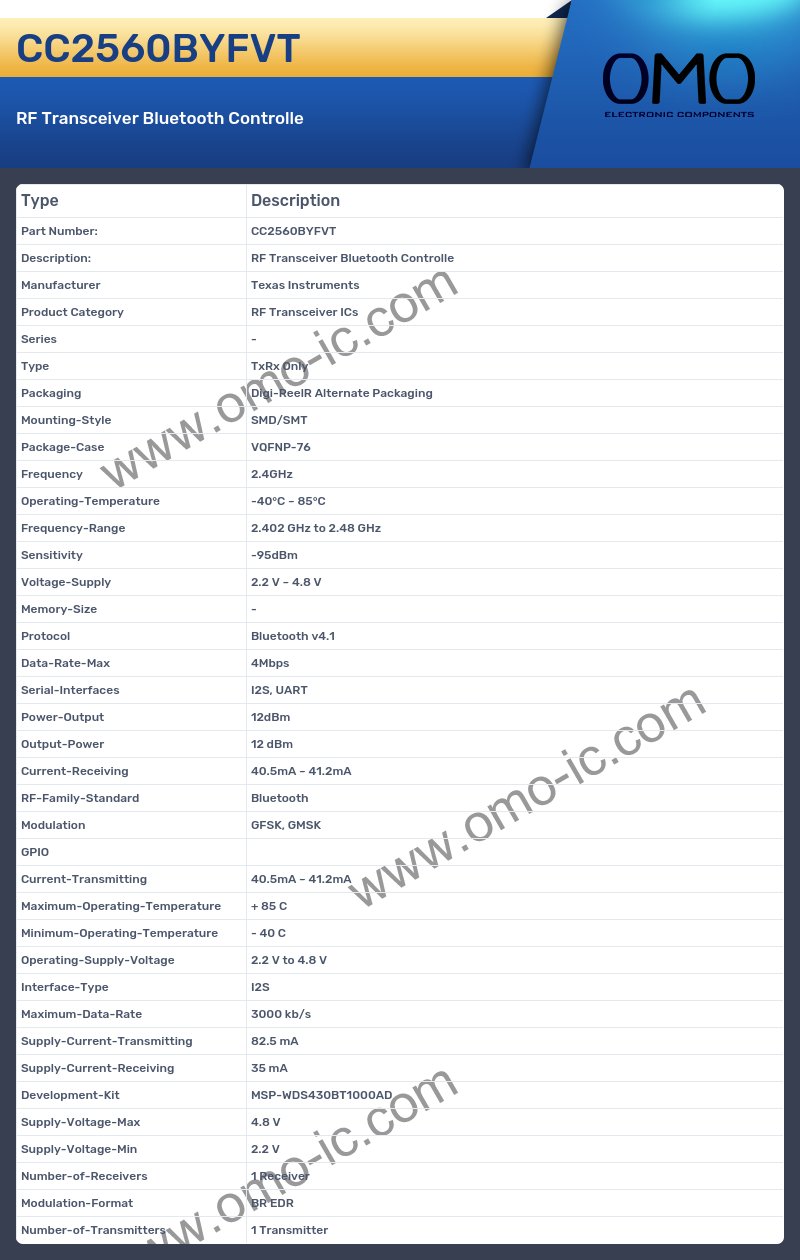

CC2560BYFVT Specifications

• Manufacturer Texas Instruments
• Product Category RF Transceiver ICs
• Series -
• Type TxRx Only
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case VQFNP-76
• Frequency 2.4GHz
• Operating-Temperature -40°C ~ 85°C
• Frequency-Range 2.402 GHz to 2.48 GHz
• Sensitivity -95dBm
• Voltage-Supply 2.2 V ~ 4.8 V
• Memory-Size -
• Protocol Bluetooth v4.1
• Data-Rate-Max 4Mbps
• Serial-Interfaces I2S, UART
• Power-Output 12dBm
• Output-Power 12 dBm
• Current-Receiving 40.5mA ~ 41.2mA
• RF-Family-Standard Bluetooth
• Modulation GFSK, GMSK
• GPIO
• Current-Transmitting 40.5mA ~ 41.2mA
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.2 V to 4.8 V
• Interface-Type I2S
• Maximum-Data-Rate 3000 kb/s
• Supply-Current-Transmitting 82.5 mA
• Supply-Current-Receiving 35 mA
• Development-Kit MSP-WDS430BT1000AD
• Supply-Voltage-Max 4.8 V
• Supply-Voltage-Min 2.2 V
• Number-of-Receivers 1 Receiver
• Modulation-Format BR EDR
• Number-of-Transmitters 1 Transmitter
