CD4011UBMG4

CD4011UBMG4 Overview

Product belongs to the 4000B series. Tube Alternate Packaging is the packaging method for this product 14-SOIC (0.154", 3.90mm Width) Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Voltage Supply Range: 3 V ~ 18 V Supplier device package: 14-SOIC 4 is 8. 1μA maximum quiescent current. NAND Gate logic type 1 V ~ 2.5 V is a Logic-Level-Low; 4 V ~ 12.5 V is the Logic-Level-High

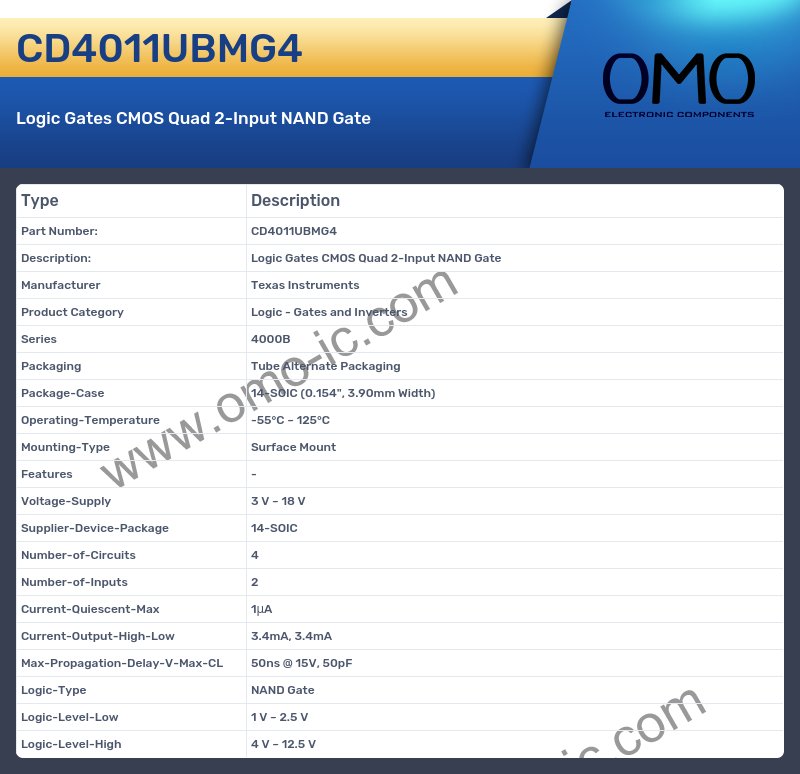

CD4011UBMG4 Image

CD4011UBMG4 Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Gates and Inverters
• Series 4000B
• Packaging Tube Alternate Packaging
• Package-Case 14-SOIC (0.154", 3.90mm Width)
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Features -
• Voltage-Supply 3 V ~ 18 V
• Supplier-Device-Package 14-SOIC
• Number-of-Circuits 4
• Number-of-Inputs 2
• Current-Quiescent-Max 1μA
• Current-Output-High-Low 3.4mA, 3.4mA
• Max-Propagation-Delay-V-Max-CL 50ns @ 15V, 50pF
• Logic-Type NAND Gate
• Logic-Level-Low 1 V ~ 2.5 V
• Logic-Level-High 4 V ~ 12.5 V
