CD4020BNSRG4

CD4020BNSRG4 Overview

Product belongs to the 4000B series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product 16-SOIC (0.209", 5.30mm Width) Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Up directionality Voltage Supply Range: 3 V ~ 18 V Supplier device package: 16-SO 1 element Binary Counter logic type 14 bits per element This product's Asynchronous. - timing The 24MHZ count rate. Negative Edge trigger type

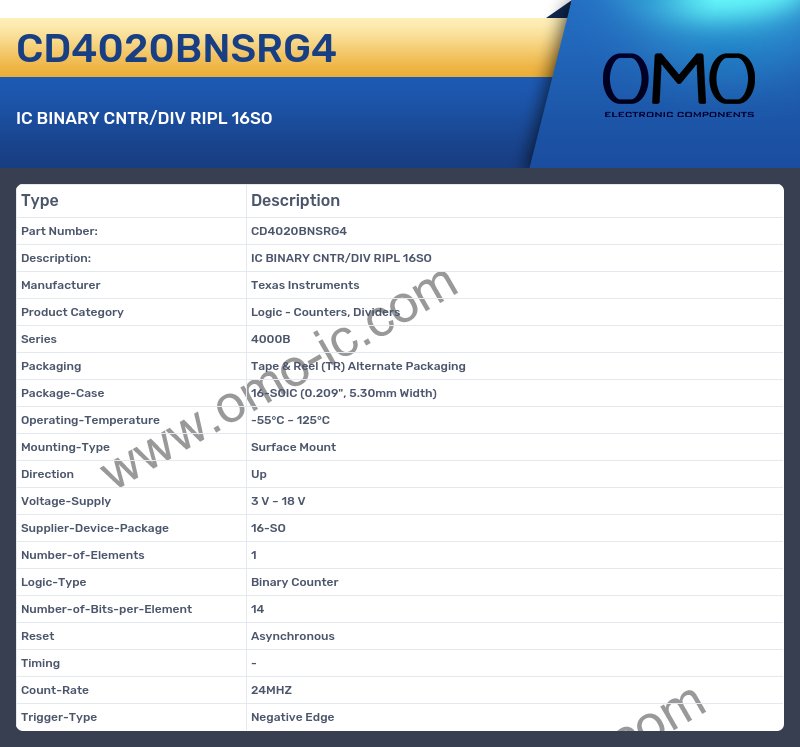

CD4020BNSRG4 Image

CD4020BNSRG4 Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Counters, Dividers
• Series 4000B
• Packaging Tape & Reel (TR) Alternate Packaging
• Package-Case 16-SOIC (0.209", 5.30mm Width)
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Direction Up
• Voltage-Supply 3 V ~ 18 V
• Supplier-Device-Package 16-SO
• Number-of-Elements 1
• Logic-Type Binary Counter
• Number-of-Bits-per-Element 14
• Reset Asynchronous
• Timing -
• Count-Rate 24MHZ
• Trigger-Type Negative Edge
