CD4520BEE4 Overview

Product belongs to the 4000B series. Tube Alternate Packaging is the packaging method for this product Weight of 0.033570 oz Through Hole Mounting-Style Wide - 55 C to + 125 C operating temperature range for diverse applications PDIP-16 Operational temperature range: -55°C ~ 125°C Through Hole mounting type Up directionality Voltage Supply Range: 3 V ~ 18 V Supplier device package: 16-PDIP 4 bit bits 2 element Binary Counter logic type 4 bits per element This product's Asynchronous. Synchronous timing The 8MHz count rate. Positive, Negative trigger type This product operates at a 3 V to 18 V supply voltage for reliable performance. Binary Counter-Type CD4000 logic type Synchronous counting-method Up counting sequence

CD4520BEE4 Image

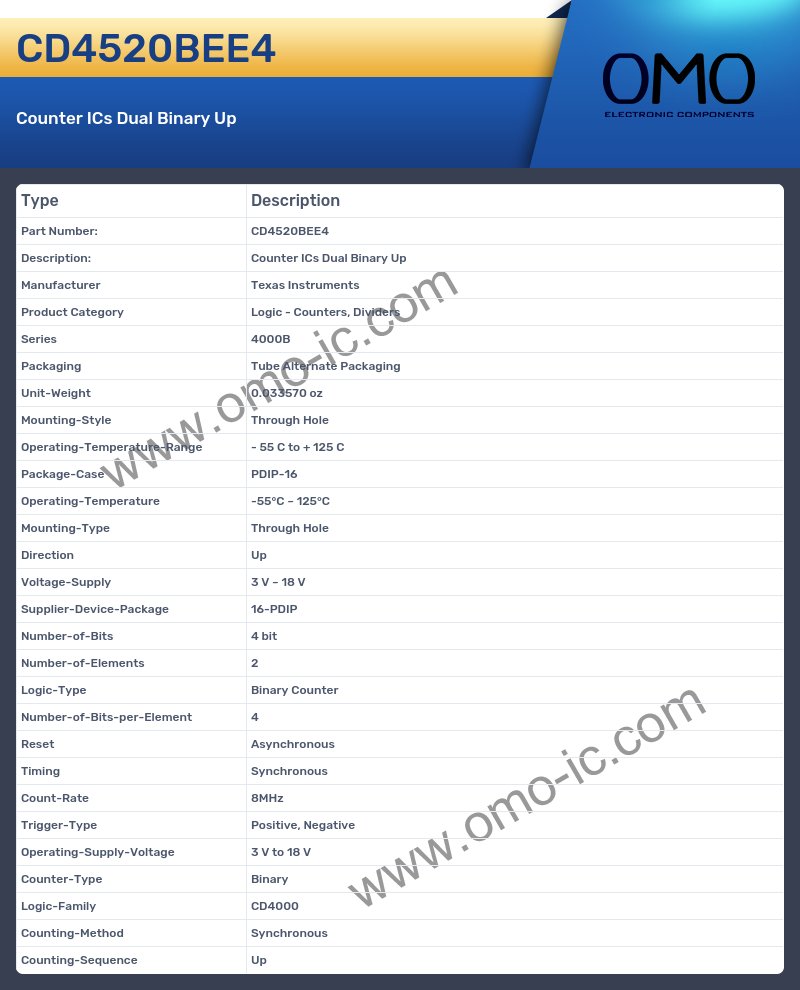

CD4520BEE4 Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Counters, Dividers
• Series 4000B
• Packaging Tube Alternate Packaging
• Unit-Weight 0.033570 oz
• Mounting-Style Through Hole
• Operating-Temperature-Range - 55 C to + 125 C
• Package-Case PDIP-16
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Through Hole
• Direction Up
• Voltage-Supply 3 V ~ 18 V
• Supplier-Device-Package 16-PDIP
• Number-of-Bits 4 bit
• Number-of-Elements 2
• Logic-Type Binary Counter
• Number-of-Bits-per-Element 4
• Reset Asynchronous
• Timing Synchronous
• Count-Rate 8MHz
• Trigger-Type Positive, Negative
• Operating-Supply-Voltage 3 V to 18 V
• Counter-Type Binary
• Logic-Family CD4000
• Counting-Method Synchronous
• Counting-Sequence Up
