CDC5801DBQG4

CDC5801DBQG4 Overview

Product belongs to the - series. Type: PLL Multiplier/Divider Tube Alternate Packaging is the packaging method for this product 24-SSOP (0.154", 3.90mm Width) Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Voltage Supply Range: 3 V ~ 3.6 V Supplier device package: 24-SSOP/QSOP Input type: LVCMOS, LVTTL The LVDS, LVPECL, LVTTL. 1 is 8. The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Differential input and output are both available: No/Yes Maximum frequency of 500MHz Yes/Yes Divider-Multiplier

CDC5801DBQG4 Image

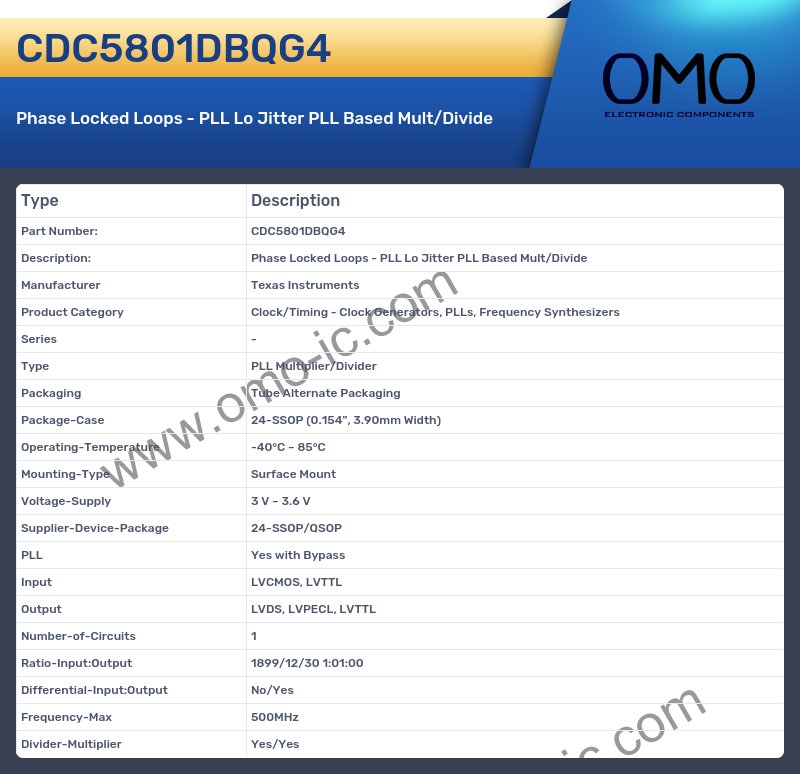

CDC5801DBQG4 Specifications

• Manufacturer Texas Instruments
• Product Category Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers
• Series -
• Type PLL Multiplier/Divider
• Packaging Tube Alternate Packaging
• Package-Case 24-SSOP (0.154", 3.90mm Width)
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Voltage-Supply 3 V ~ 3.6 V
• Supplier-Device-Package 24-SSOP/QSOP
• PLL Yes with Bypass
• Input LVCMOS, LVTTL
• Output LVDS, LVPECL, LVTTL
• Number-of-Circuits 1
• Ratio-Input:Output 1899/12/30 1:01:00
• Differential-Input:Output No/Yes
• Frequency-Max 500MHz
• Divider-Multiplier Yes/Yes
