CDCS502PWR Overview

Product belongs to the CDCS502 series. Type: Clock Generator Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001376 oz SMD/SMT Mounting-Style TSSOP-8 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Voltage Supply Range: 3 V ~ 3.6 V Supplier device package: 8-TSSOP Input type: Crystal The LVCMOS. 1 is 8. The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Differential input and output are both available: No/No Maximum frequency of 108MHz No/Yes Divider-Multiplier Number-of-Outputs: 1 Output Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 3.3 V supply voltage for reliable performance. 22 mA is 92 nA. The CDCS502PERF-EVM. Maximum-Input-Frequency: 32 MHz Maximum duty cycle of 55 % Maximum output frequency is 108 MHz. The jitter is 100 ps.

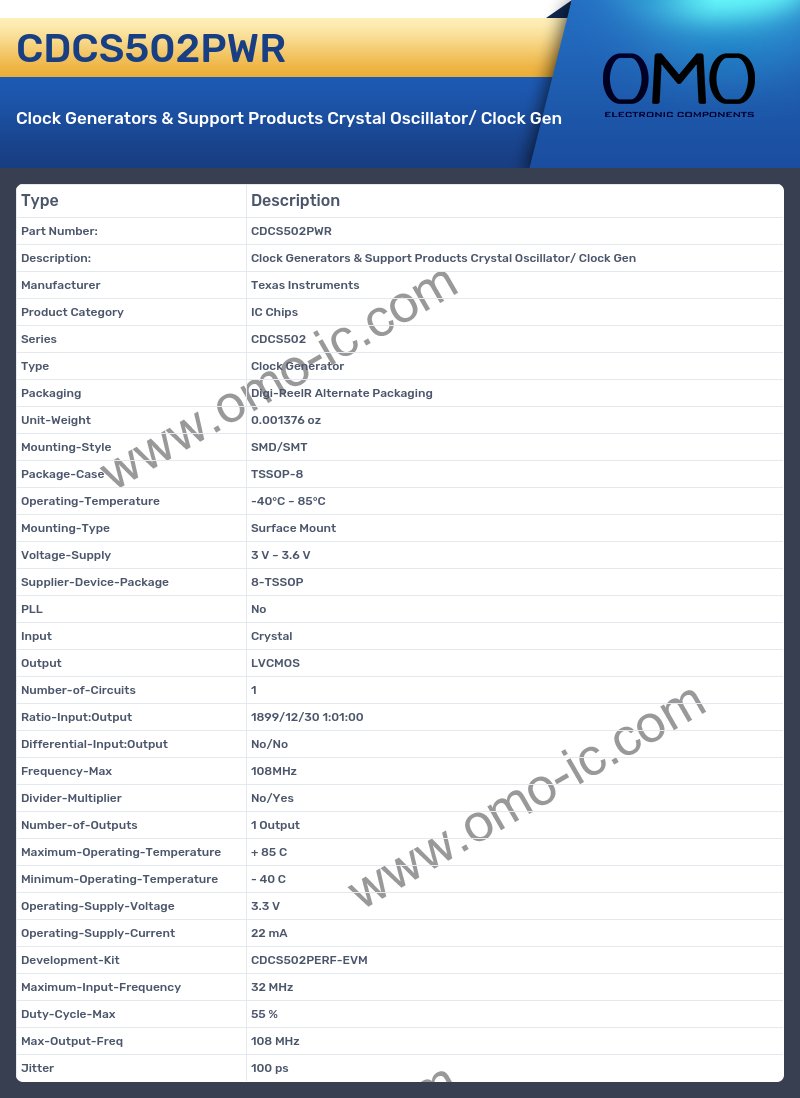

CDCS502PWR Image

CDCS502PWR Specifications

• Manufacturer Texas Instruments
• Product Category IC Chips
• Series CDCS502
• Type Clock Generator
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001376 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-8
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Voltage-Supply 3 V ~ 3.6 V
• Supplier-Device-Package 8-TSSOP
• PLL No
• Input Crystal
• Output LVCMOS
• Number-of-Circuits 1
• Ratio-Input:Output 1899/12/30 1:01:00
• Differential-Input:Output No/No
• Frequency-Max 108MHz
• Divider-Multiplier No/Yes
• Number-of-Outputs 1 Output
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 3.3 V
• Operating-Supply-Current 22 mA
• Development-Kit CDCS502PERF-EVM
• Maximum-Input-Frequency 32 MHz
• Duty-Cycle-Max 55 %
• Max-Output-Freq 108 MHz
• Jitter 100 ps
