CSD13202Q2

CSD13202Q2 Overview

Product belongs to the CSD13202Q2 series. Reel is the packaging method for this product SMD/SMT Mounting-Style Trade name: NexFET. WSON-FET-6 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 2.7 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 13.6 ns of 16 ns. This product has a 28 ns of 16 ns. This product's 8 V. The ID of continuous drain current is 14.4 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 12 V. This product has a 800 mV Vgs-th gate-source threshold voltage for efficient power management. The 9.3 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 11 ns This product has a 4.5 ns. Qg-Gate-Charge is 5.1 nC. This product features a 44 S of 500 S for high performance. This product operates in Depletion channel mode for optimal performance.

CSD13202Q2 Image

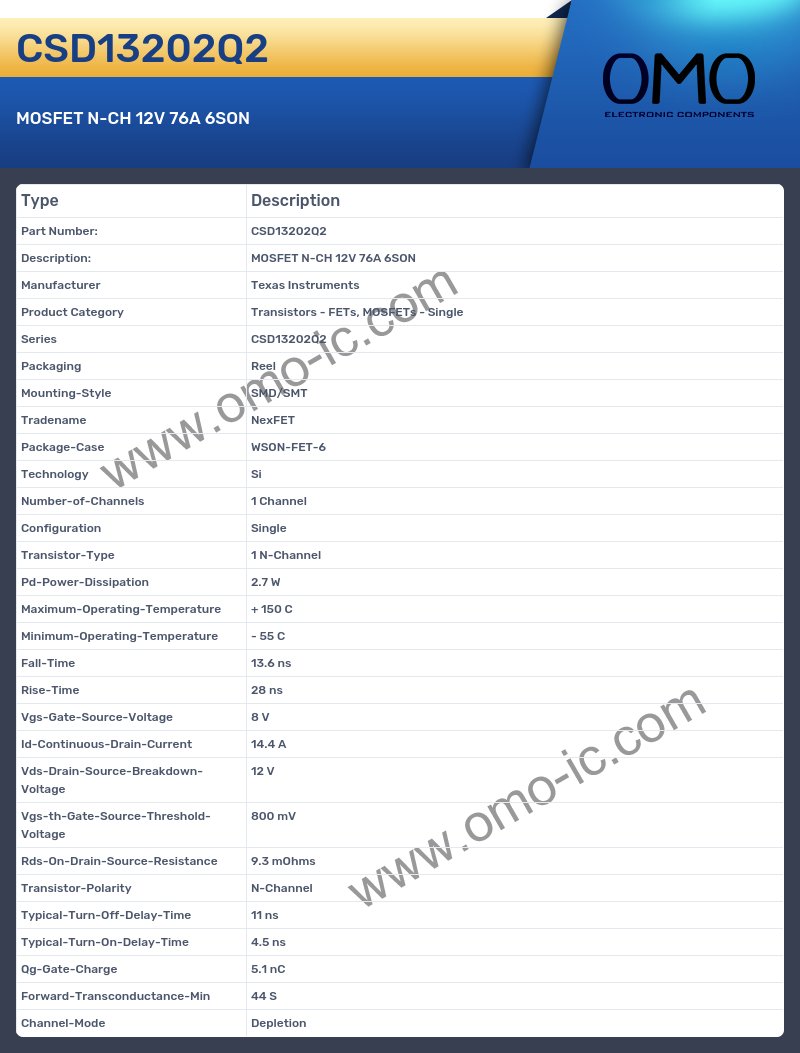

CSD13202Q2 Specifications

• Manufacturer Texas Instruments
• Product Category Transistors - FETs, MOSFETs - Single
• Series CSD13202Q2
• Packaging Reel
• Mounting-Style SMD/SMT
• Tradename NexFET
• Package-Case WSON-FET-6
• Technology Si
• Number-of-Channels 1 Channel
• Configuration Single
• Transistor-Type 1 N-Channel
• Pd-Power-Dissipation 2.7 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 13.6 ns
• Rise-Time 28 ns
• Vgs-Gate-Source-Voltage 8 V
• Id-Continuous-Drain-Current 14.4 A
• Vds-Drain-Source-Breakdown-Voltage 12 V
• Vgs-th-Gate-Source-Threshold-Voltage 800 mV
• Rds-On-Drain-Source-Resistance 9.3 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 11 ns
• Typical-Turn-On-Delay-Time 4.5 ns
• Qg-Gate-Charge 5.1 nC
• Forward-Transconductance-Min 44 S
• Channel-Mode Depletion
