CSD16403Q5A

CSD16403Q5A Overview

Product belongs to the CSD16403Q5A series. Reel is the packaging method for this product SMD/SMT Mounting-Style Trade name: NexFET. VSON-FET-8 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 3.1 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 9.2 ns of 16 ns. This product has a 18.3 ns of 16 ns. This product's 16 V. The ID of continuous drain current is 28 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 25 V. This product has a 1.6 V Vgs-th gate-source threshold voltage for efficient power management. The 3.7 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 15.2 ns This product has a 11.8 ns. Qg-Gate-Charge is 13.3 nC. This product features a 91 S of 500 S for high performance. This product operates in Enhancement channel mode for optimal performance.

CSD16403Q5A Image

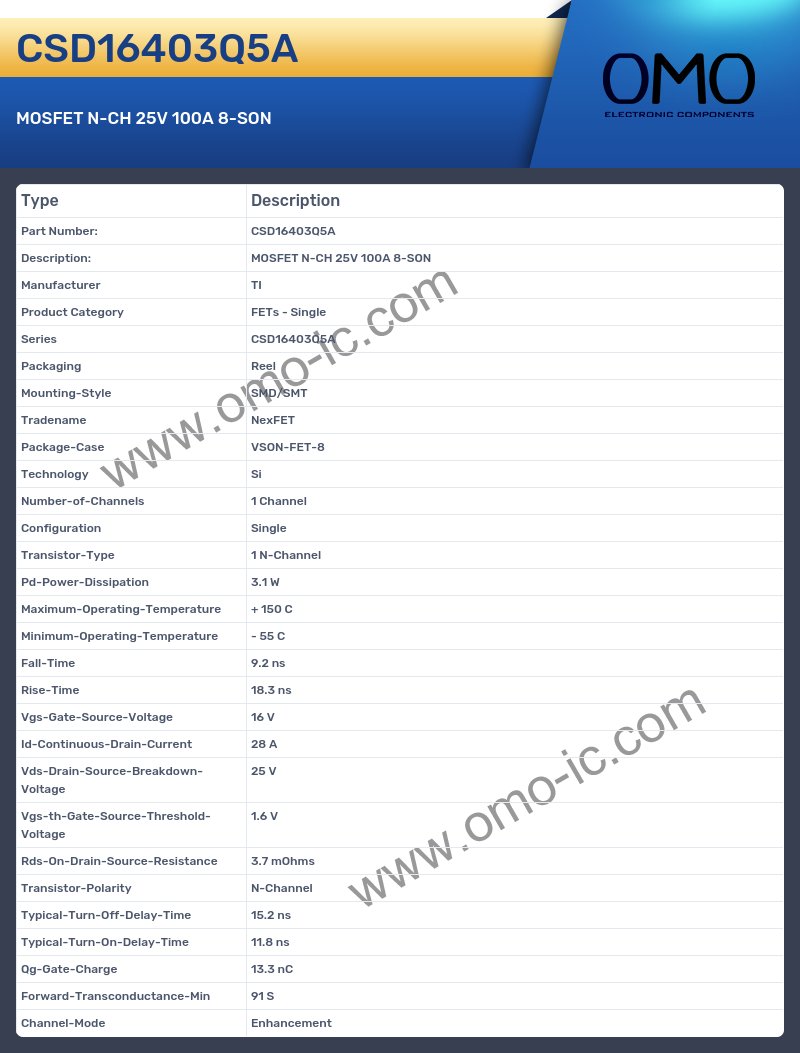

CSD16403Q5A Specifications

• Manufacturer TI
• Product Category FETs - Single
• Series CSD16403Q5A
• Packaging Reel
• Mounting-Style SMD/SMT
• Tradename NexFET
• Package-Case VSON-FET-8
• Technology Si
• Number-of-Channels 1 Channel
• Configuration Single
• Transistor-Type 1 N-Channel
• Pd-Power-Dissipation 3.1 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 9.2 ns
• Rise-Time 18.3 ns
• Vgs-Gate-Source-Voltage 16 V
• Id-Continuous-Drain-Current 28 A
• Vds-Drain-Source-Breakdown-Voltage 25 V
• Vgs-th-Gate-Source-Threshold-Voltage 1.6 V
• Rds-On-Drain-Source-Resistance 3.7 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 15.2 ns
• Typical-Turn-On-Delay-Time 11.8 ns
• Qg-Gate-Charge 13.3 nC
• Forward-Transconductance-Min 91 S
• Channel-Mode Enhancement
