| Mfr. #: | CSD17501 |
|---|---|
| Manufacturer: | Texas Instruments |
| Description: | |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | CSD17501 Datasheet |
RoHS compliant with Details Input bias current of SMD/SMT Package type is VSON-FET-8 Single 1 Channel for basic signal processing The transistor polarity is N-Channel. 30 V is the Vds - Drain-Source Breakdown Voltage Continuous Drain Current identified as 28 A; The Rds On - Drain-Source Resistance of the product is 3.7 mOhms. The Vgs - Gate-Source Voltage attribute for this product is 20 V. The 1.3 V Gate-Source Threshold Voltage of Vgs th; 13.2 nC Gate Charge of Qg; Maximum Operating Temperature: + 150 C Si is the technology used. Reel is the packaging method for this product Configuration Single Fall Time of 7.9 ns Minimum Forward Transconductance of 110 S. - 55 C minimum operating temperature The power dissipation is 3.2 W. 17 ns Rise Time Product belongs to the CSD17501Q5A series. Trade name: NexFET. 1 N-Channel Transistor Type Typical Turn-Off Delay Time of 18 ns; The 10.4 ns typical turn-on delay time
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

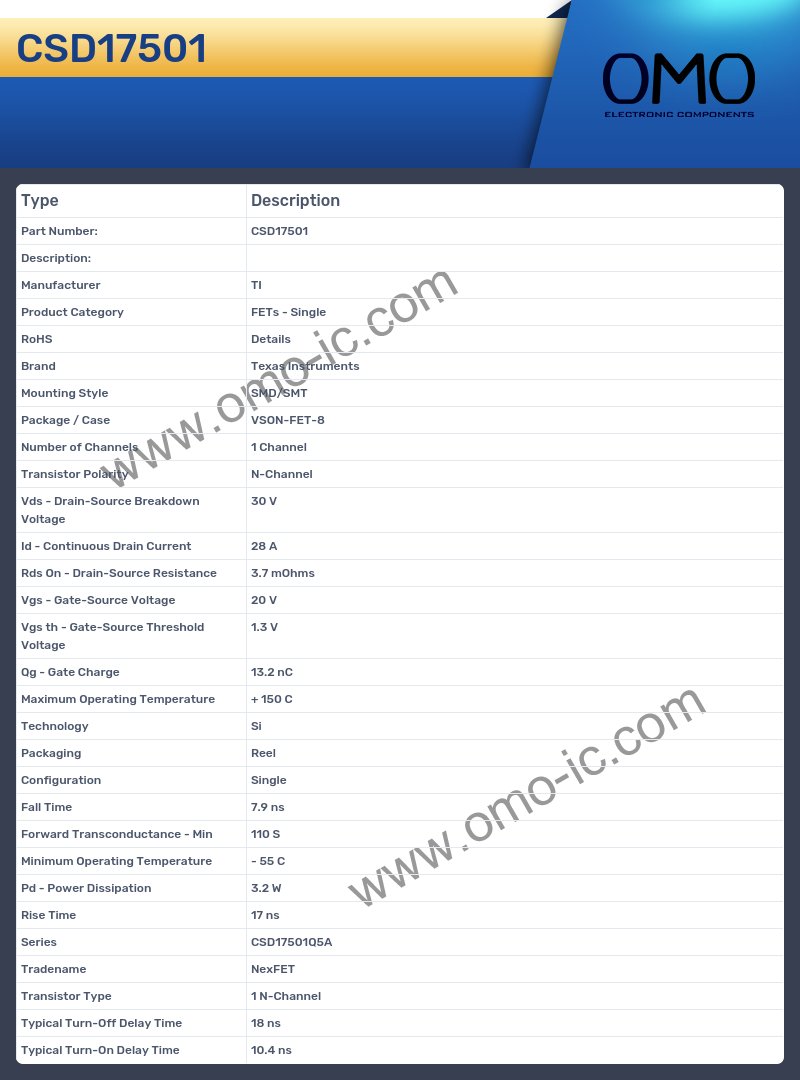

CSD17501 Specifications
A: What is the RoHS of the product?
Q: The RoHS of the product is Details.
A: At what frequency does the Mounting Style?
Q: The product Mounting Style is SMD/SMT.
A: What is the Package / Case of the product?
Q: The Package / Case of the product is VSON-FET-8.
A: What is the Number of Channels of the product?
Q: The Number of Channels of the product is 1 Channel.
A: Is the cutoff frequency of the product Transistor Polarity?
Q: Yes, the product's Transistor Polarity is indeed N-Channel
A: At what frequency does the Vds - Drain-Source Breakdown Voltage?
Q: The product Vds - Drain-Source Breakdown Voltage is 30 V.
A: Is the cutoff frequency of the product Id - Continuous Drain Current?
Q: Yes, the product's Id - Continuous Drain Current is indeed 28 A
A: At what frequency does the Rds On - Drain-Source Resistance?
Q: The product Rds On - Drain-Source Resistance is 3.7 mOhms.
A: What is the Vgs - Gate-Source Voltage of the product?
Q: The Vgs - Gate-Source Voltage of the product is 20 V.
A: At what frequency does the Vgs th - Gate-Source Threshold Voltage?
Q: The product Vgs th - Gate-Source Threshold Voltage is 1.3 V.
A: What is the Qg - Gate Charge of the product?
Q: The Qg - Gate Charge of the product is 13.2 nC.
A: Is the cutoff frequency of the product Maximum Operating Temperature?
Q: Yes, the product's Maximum Operating Temperature is indeed + 150 C
A: At what frequency does the Technology?
Q: The product Technology is Si.
A: What is the Packaging of the product?
Q: The Packaging of the product is Reel.
A: At what frequency does the Configuration?
Q: The product Configuration is Single.
A: What is the Fall Time of the product?
Q: The Fall Time of the product is 7.9 ns.
A: Is the cutoff frequency of the product Forward Transconductance - Min?
Q: Yes, the product's Forward Transconductance - Min is indeed 110 S
A: Is the cutoff frequency of the product Minimum Operating Temperature?
Q: Yes, the product's Minimum Operating Temperature is indeed - 55 C
A: At what frequency does the Pd - Power Dissipation?
Q: The product Pd - Power Dissipation is 3.2 W.
A: What is the Rise Time of the product?
Q: The Rise Time of the product is 17 ns.
A: At what frequency does the Series?
Q: The product Series is CSD17501Q5A.
A: What is the Tradename of the product?
Q: The Tradename of the product is NexFET.
A: Is the cutoff frequency of the product Transistor Type?
Q: Yes, the product's Transistor Type is indeed 1 N-Channel
A: What is the Typical Turn-Off Delay Time of the product?
Q: The Typical Turn-Off Delay Time of the product is 18 ns.
A: At what frequency does the Typical Turn-On Delay Time?
Q: The product Typical Turn-On Delay Time is 10.4 ns.
