| Mfr. #: | CSD19501KCS |
|---|---|
| Manufacturer: | Texas Instruments |
| Description: | Darlington Transistors MOSFET 80V N-CH NexFET Pwr MOSFET |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | CSD19501KCS Datasheet |
Product belongs to the CSD19501KCS series. Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style Trade name: NexFET. TO-220-3 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 N-Channel Power-off control: 217 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 5 ns of 16 ns. This product has a 15 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 121 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 80 V. This product has a 2.6 V Vgs-th gate-source threshold voltage for efficient power management. The 6.2 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. Qg-Gate-Charge is 38 nC. This product features a 137 S of 500 S for high performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

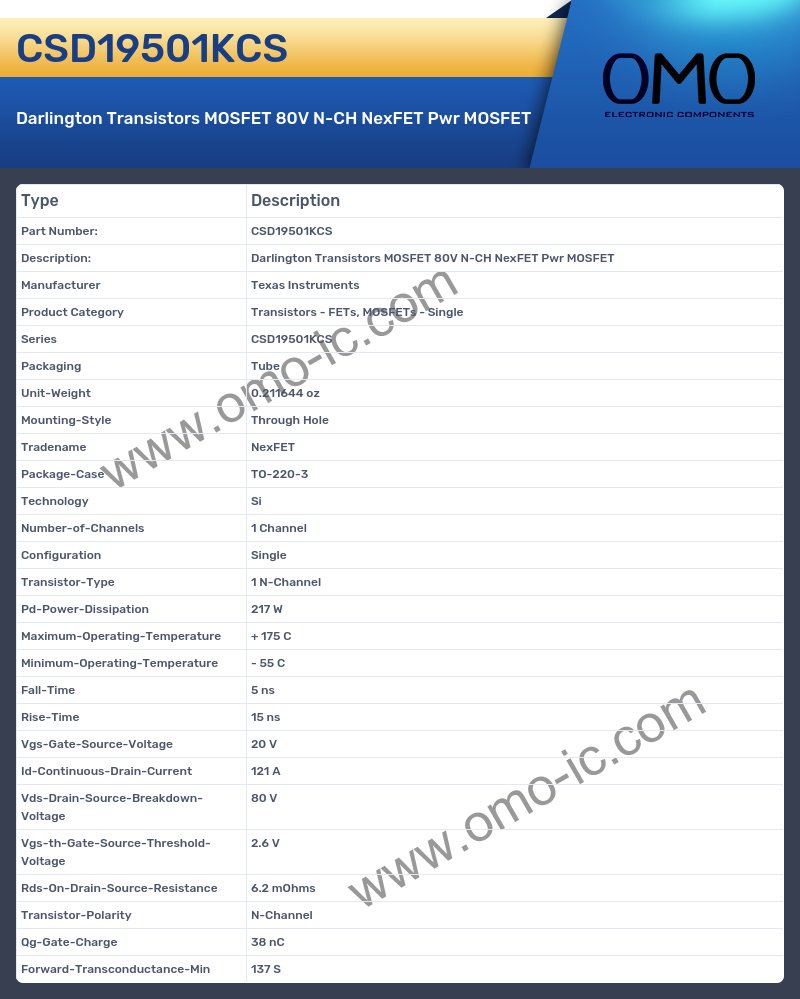

CSD19501KCS Specifications
