| Mfr. #: | CSD22202W15 |
|---|---|
| Manufacturer: | Texas Instruments |
| Description: | MOSFET P-CH 8V 10A 9DSBGA |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | CSD22202W15 Datasheet |
Product belongs to the CSD22202W15 series. Reel is the packaging method for this product SMD/SMT Mounting-Style Trade name: NexFET. DSBGA-9 Si is the technology used. Number of channels: 1 Channel Configuration Single Channel Transistor type: 1 P-Channel Power-off control: 1.5 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 38 ns of 16 ns. This product has a 8.4 ns of 16 ns. This product's - 6 V. The ID of continuous drain current is - 5 A. This product has a Vds-Drain-Source-Breakdown-Voltageof - 8 V. This product has a - 800 mV Vgs-th gate-source threshold voltage for efficient power management. The 12.2 mOhms for this product is 12 Ohms. The transistor polarity is P-Channel. 'Typical-Turn-Off-Delay-Time' of 109 ns This product has a 10.4 ns. Qg-Gate-Charge is 6.5 nC. This product operates in Enhancement channel mode for optimal performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

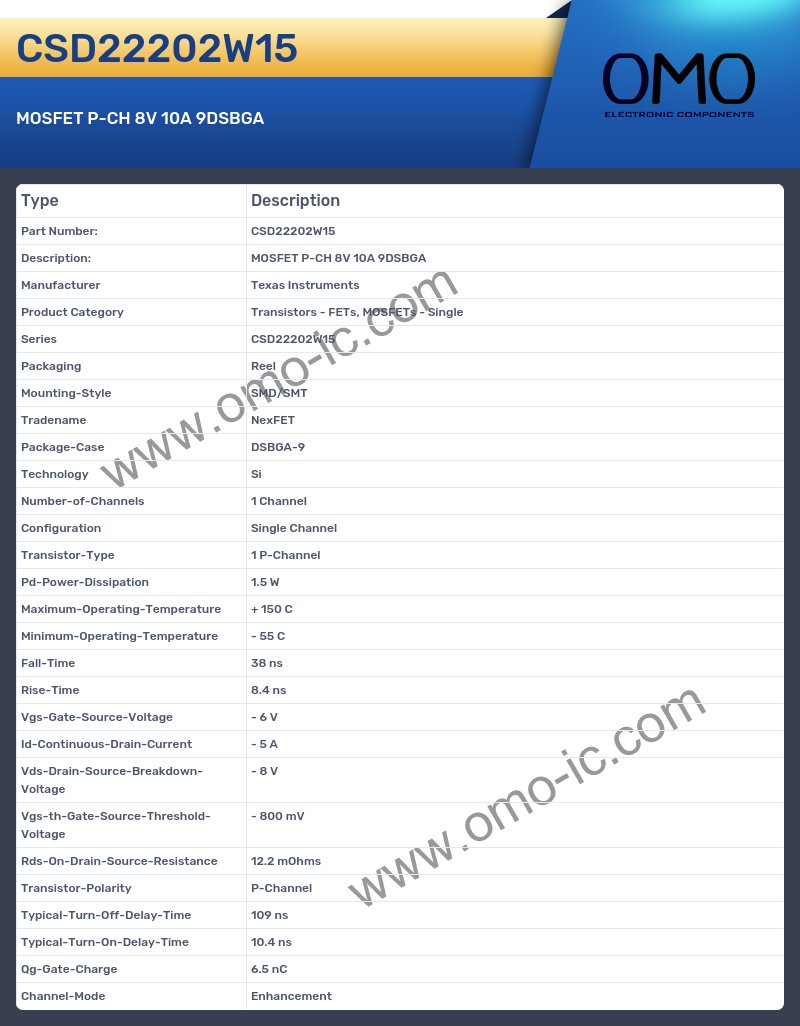

CSD22202W15 Specifications
A: What is the Series of the product?
Q: The Series of the product is CSD22202W15.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Reel
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: What is the Tradename of the product?
Q: The Tradename of the product is NexFET.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed DSBGA-9
A: At what frequency does the Technology?
Q: The product Technology is Si.
A: At what frequency does the Number-of-Channels?
Q: The product Number-of-Channels is 1 Channel.
A: What is the Configuration of the product?
Q: The Configuration of the product is Single Channel.
A: What is the Transistor-Type of the product?
Q: The Transistor-Type of the product is 1 P-Channel.
A: At what frequency does the Pd-Power-Dissipation?
Q: The product Pd-Power-Dissipation is 1.5 W.
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 150 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 55 C
A: Is the cutoff frequency of the product Fall-Time?
Q: Yes, the product's Fall-Time is indeed 38 ns
A: What is the Rise-Time of the product?
Q: The Rise-Time of the product is 8.4 ns.
A: What is the Vgs-Gate-Source-Voltage of the product?
Q: The Vgs-Gate-Source-Voltage of the product is - 6 V.
A: At what frequency does the Id-Continuous-Drain-Current?
Q: The product Id-Continuous-Drain-Current is - 5 A.
A: What is the Vds-Drain-Source-Breakdown-Voltage of the product?
Q: The Vds-Drain-Source-Breakdown-Voltage of the product is - 8 V.
A: Is the cutoff frequency of the product Vgs-th-Gate-Source-Threshold-Voltage?
Q: Yes, the product's Vgs-th-Gate-Source-Threshold-Voltage is indeed - 800 mV
A: At what frequency does the Rds-On-Drain-Source-Resistance?
Q: The product Rds-On-Drain-Source-Resistance is 12.2 mOhms.
A: At what frequency does the Transistor-Polarity?
Q: The product Transistor-Polarity is P-Channel.
A: At what frequency does the Typical-Turn-Off-Delay-Time?
Q: The product Typical-Turn-Off-Delay-Time is 109 ns.
A: What is the Typical-Turn-On-Delay-Time of the product?
Q: The Typical-Turn-On-Delay-Time of the product is 10.4 ns.
A: At what frequency does the Qg-Gate-Charge?
Q: The product Qg-Gate-Charge is 6.5 nC.
A: What is the Channel-Mode of the product?
Q: The Channel-Mode of the product is Enhancement.
