| Mfr. #: | CSD25481F4 |
|---|---|
| Manufacturer: | Texas Instruments |
| Description: | MOSFET P-CH 20V 2.5A 3PICOSTAR |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | CSD25481F4 Datasheet |
Product belongs to the CSD25481F4 series. Reel is the packaging method for this product SMD/SMT Mounting-Style Trade name: NexFET. PicoStar-3 Si is the technology used. Number of channels: 1 Channel Configuration Single Channel Transistor type: 1 P-Channel Power-off control: 500 mW Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 6.7 ns of 16 ns. This product has a 3.6 ns of 16 ns. This product's - 12 V. The ID of continuous drain current is - 2.5 A. This product has a Vds-Drain-Source-Breakdown-Voltageof - 20 V. This product has a - 950 mV Vgs-th gate-source threshold voltage for efficient power management. The 105 mOhms for this product is 12 Ohms. The transistor polarity is P-Channel. 'Typical-Turn-Off-Delay-Time' of 16.9 ns This product has a 4.1 ns. Qg-Gate-Charge is 0.913 nC. This product features a 3.3 S of 500 S for high performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

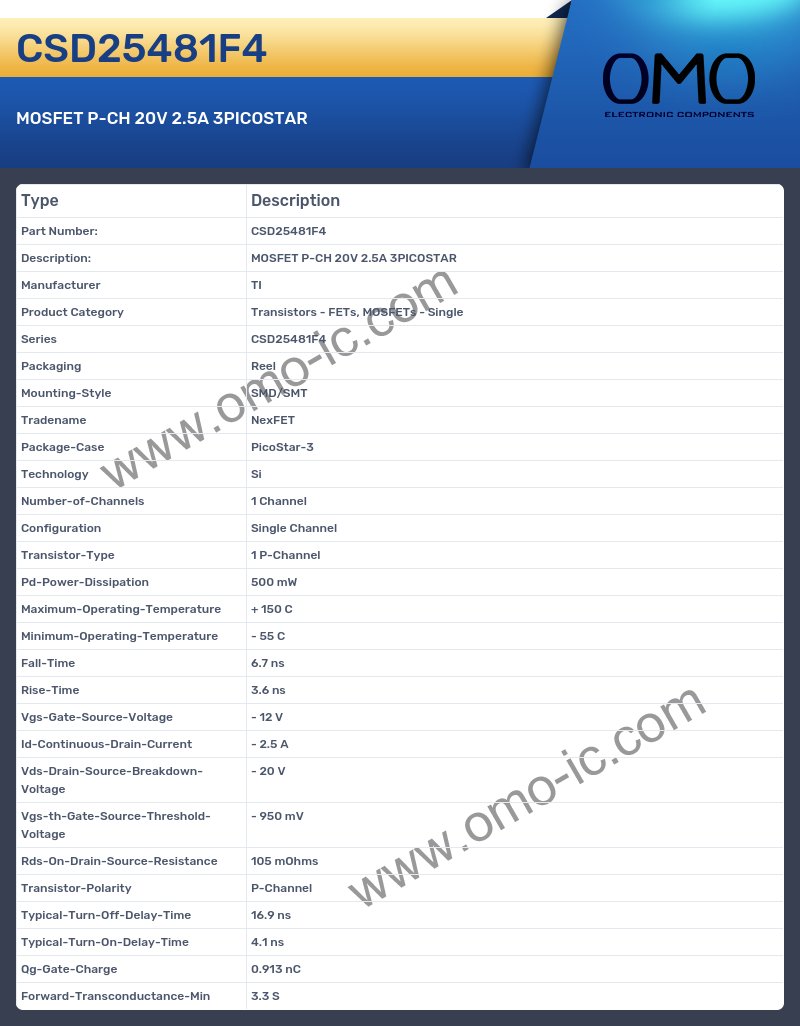

CSD25481F4 Specifications
A: At what frequency does the Series?
Q: The product Series is CSD25481F4.
A: What is the Packaging of the product?
Q: The Packaging of the product is Reel.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: Is the cutoff frequency of the product Tradename?
Q: Yes, the product's Tradename is indeed NexFET
A: What is the Package-Case of the product?
Q: The Package-Case of the product is PicoStar-3.
A: What is the Technology of the product?
Q: The Technology of the product is Si.
A: Is the cutoff frequency of the product Number-of-Channels?
Q: Yes, the product's Number-of-Channels is indeed 1 Channel
A: At what frequency does the Configuration?
Q: The product Configuration is Single Channel.
A: What is the Transistor-Type of the product?
Q: The Transistor-Type of the product is 1 P-Channel.
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 500 mW
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 150 C
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 55 C
A: Is the cutoff frequency of the product Fall-Time?
Q: Yes, the product's Fall-Time is indeed 6.7 ns
A: Is the cutoff frequency of the product Rise-Time?
Q: Yes, the product's Rise-Time is indeed 3.6 ns
A: At what frequency does the Vgs-Gate-Source-Voltage?
Q: The product Vgs-Gate-Source-Voltage is - 12 V.
A: What is the Id-Continuous-Drain-Current of the product?
Q: The Id-Continuous-Drain-Current of the product is - 2.5 A.
A: Is the cutoff frequency of the product Vds-Drain-Source-Breakdown-Voltage?
Q: Yes, the product's Vds-Drain-Source-Breakdown-Voltage is indeed - 20 V
A: What is the Vgs-th-Gate-Source-Threshold-Voltage of the product?
Q: The Vgs-th-Gate-Source-Threshold-Voltage of the product is - 950 mV.
A: What is the Rds-On-Drain-Source-Resistance of the product?
Q: The Rds-On-Drain-Source-Resistance of the product is 105 mOhms.
A: What is the Transistor-Polarity of the product?
Q: The Transistor-Polarity of the product is P-Channel.
A: At what frequency does the Typical-Turn-Off-Delay-Time?
Q: The product Typical-Turn-Off-Delay-Time is 16.9 ns.
A: What is the Typical-Turn-On-Delay-Time of the product?
Q: The Typical-Turn-On-Delay-Time of the product is 4.1 ns.
A: What is the Qg-Gate-Charge of the product?
Q: The Qg-Gate-Charge of the product is 0.913 nC.
A: At what frequency does the Forward-Transconductance-Min?
Q: The product Forward-Transconductance-Min is 3.3 S.
