DAC5652AIPFB

DAC5652AIPFB Overview

Product belongs to the DAC5652A series. This product is categorized as Digital to Analog Converters Tray Alternate Packaging is the packaging method for this product Weight of 0.004847 oz SMD/SMT Mounting-Style TQFP-48 Operational temperature range: -40°C ~ 85°C Output-Type: Current - Unbuffered Number of channels: 2 Channel Supplier device package: 48-TQFP (7x7) Data-Interface: Parallel 10 bits The Voltage-Supply-Analog is 3 V ~ 3.6 V. The Voltage Supply Digital for this product is 3 V ~ 3.6 V. The architecture of this product is Current Source . External, Internal is the reference type. Number of D-A converters: 2 The 20μs (Typ) is an impressive 15 us. Yes Differential-Output Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Signal-to-Noise Ratio of 63 dB Maximum supply voltage of 3.6 V Minimum supply voltage is 3 V Number-of-Converters: 2 Converter 275 MS/s Sampling Rate

DAC5652AIPFB Image

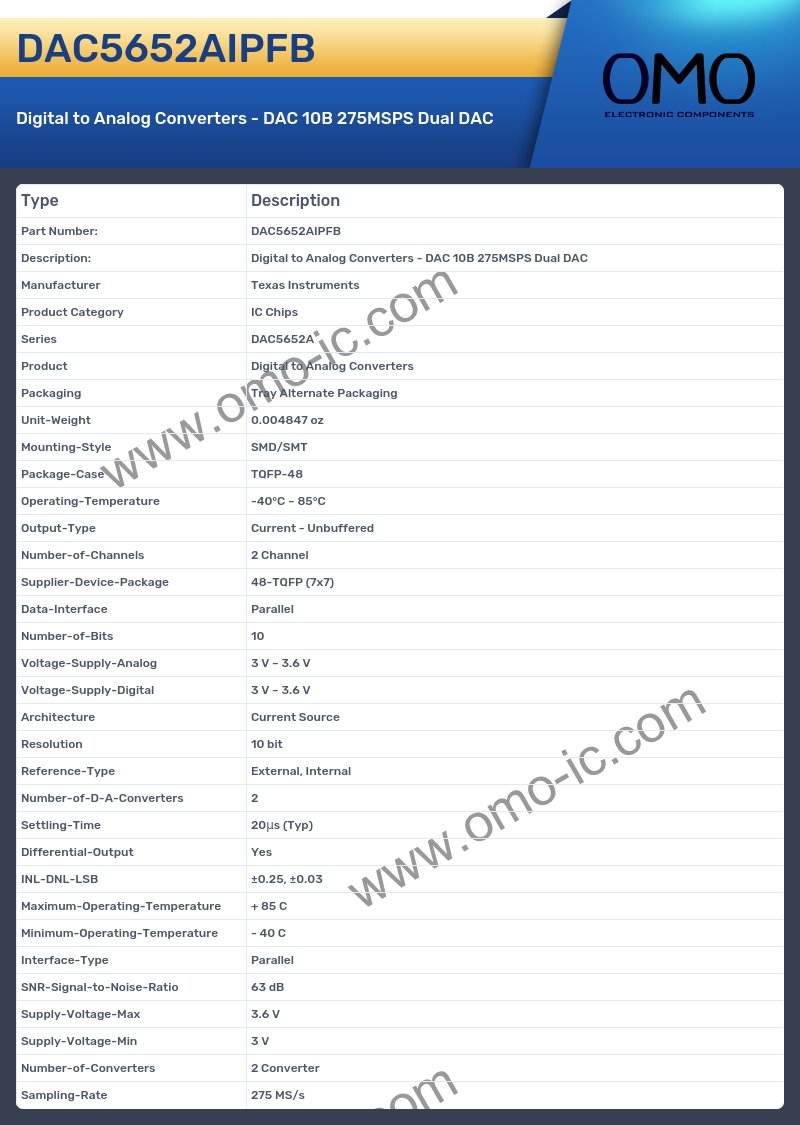

DAC5652AIPFB Specifications

• Manufacturer Texas Instruments
• Product Category IC Chips
• Series DAC5652A
• Product Digital to Analog Converters
• Packaging Tray Alternate Packaging
• Unit-Weight 0.004847 oz
• Mounting-Style SMD/SMT
• Package-Case TQFP-48
• Operating-Temperature -40°C ~ 85°C
• Output-Type Current - Unbuffered
• Number-of-Channels 2 Channel
• Supplier-Device-Package 48-TQFP (7x7)
• Data-Interface Parallel
• Number-of-Bits 10
• Voltage-Supply-Analog 3 V ~ 3.6 V
• Voltage-Supply-Digital 3 V ~ 3.6 V
• Architecture Current Source
• Resolution 10 bit
• Reference-Type External, Internal
• Number-of-D-A-Converters 2
• Settling-Time 20μs (Typ)
• Differential-Output Yes
• INL-DNL-LSB ±0.25, ±0.03
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 63 dB
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 3 V
• Number-of-Converters 2 Converter
• Sampling-Rate 275 MS/s
