DAC5652MPFBREP Overview

Product belongs to the DAC5652-EP series. This product is categorized as Digital to Analog Converters Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004847 oz SMD/SMT Mounting-Style TQFP-48 Operational temperature range: -40°C ~ 85°C Output-Type: Current - Unbuffered Number of channels: 2 Channel Supplier device package: 48-TQFP (7x7) Data-Interface: Parallel 10 bits The Voltage-Supply-Analog is 3 V ~ 3.6 V. The Voltage Supply Digital for this product is 3 V ~ 3.6 V. The architecture of this product is Current Source . External, Internal is the reference type. Number of D-A converters: 2 The 20μs (Typ) is an impressive 15 us. Yes Differential-Output Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C Parallel interface type Signal-to-Noise Ratio of 63 dB This product is also known as V62/06638-01XE and can be referred to by either part number. Maximum supply voltage of 3.6 V Minimum supply voltage is 3 V Number-of-Converters: 2 Converter 275 MS/s Sampling Rate

DAC5652MPFBREP Image

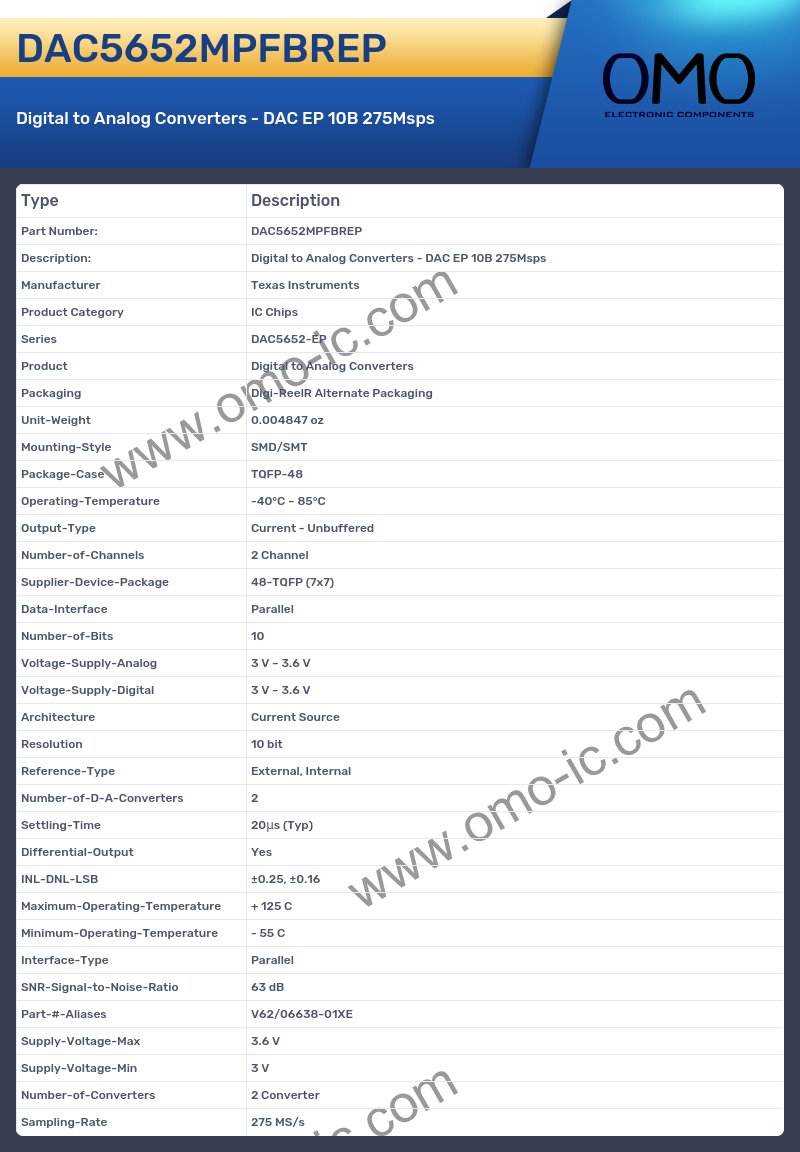

DAC5652MPFBREP Specifications

• Manufacturer Texas Instruments
• Product Category IC Chips
• Series DAC5652-EP
• Product Digital to Analog Converters
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.004847 oz
• Mounting-Style SMD/SMT
• Package-Case TQFP-48
• Operating-Temperature -40°C ~ 85°C
• Output-Type Current - Unbuffered
• Number-of-Channels 2 Channel
• Supplier-Device-Package 48-TQFP (7x7)
• Data-Interface Parallel
• Number-of-Bits 10
• Voltage-Supply-Analog 3 V ~ 3.6 V
• Voltage-Supply-Digital 3 V ~ 3.6 V
• Architecture Current Source
• Resolution 10 bit
• Reference-Type External, Internal
• Number-of-D-A-Converters 2
• Settling-Time 20μs (Typ)
• Differential-Output Yes
• INL-DNL-LSB ±0.25, ±0.16
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 63 dB
• Part-#-Aliases V62/06638-01XE
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 3 V
• Number-of-Converters 2 Converter
• Sampling-Rate 275 MS/s
