| Mfr. #: | DAC7725U |
|---|---|
| Manufacturer: | Texas Instruments |
| Description: | Digital to Analog Converters - DAC 12-Bit Quad Voltage Output |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | DAC7725U Datasheet |
Product belongs to the DAC7725 series. This product is categorized as Digital to Analog Converters Type: Precision DAC Tube Alternate Packaging is the packaging method for this product Weight of 0.025778 oz SMD/SMT Mounting-Style SOIC-28 Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Buffered Number of channels: 4 Channel Supplier device package: 28-SOIC Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is ±14.25 V ~ 15.75 V. The Voltage Supply Digital for this product is 5V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 4 The 10μs is an impressive 15 us. No Differential-Output Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Maximum supply voltage of 15.75 V Minimum supply voltage is 14.25 V Number-of-Converters: 4 Converter 100 kS/s Sampling Rate
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

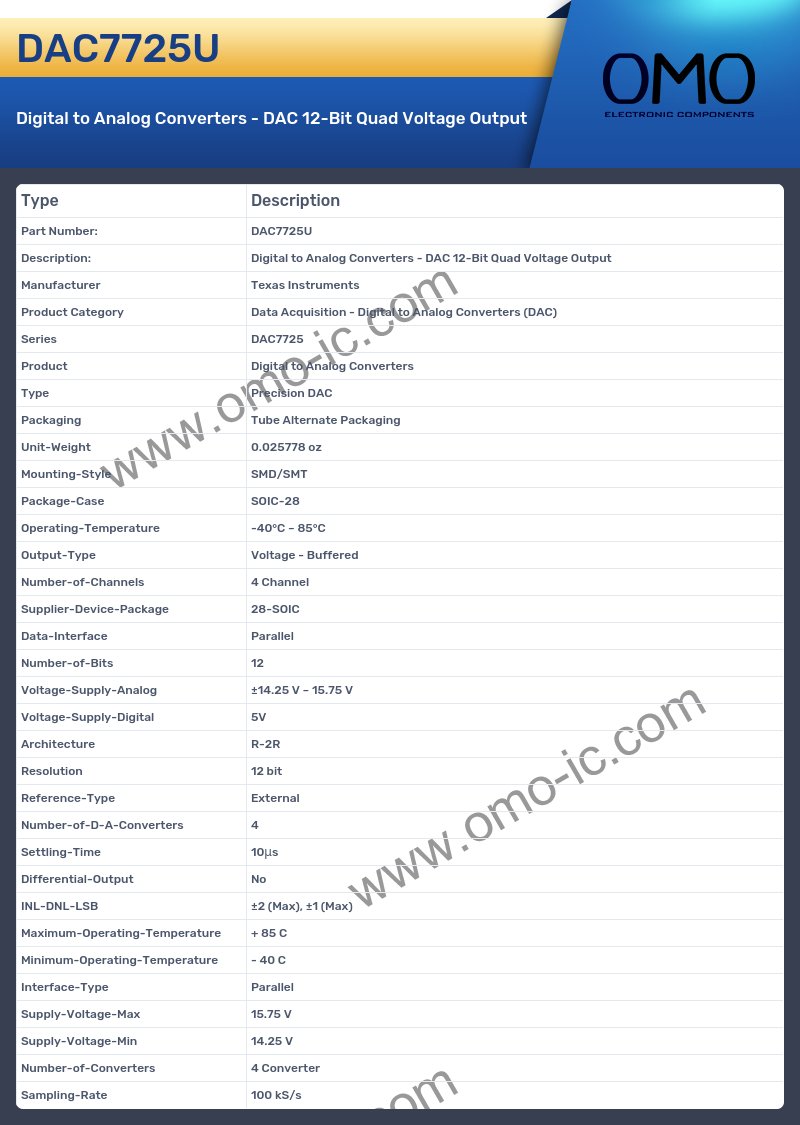

DAC7725U Specifications
A: At what frequency does the Series?
Q: The product Series is DAC7725.
A: What is the Product of the product?
Q: The Product of the product is Digital to Analog Converters.
A: Is the cutoff frequency of the product Type?
Q: Yes, the product's Type is indeed Precision DAC
A: At what frequency does the Packaging?
Q: The product Packaging is Tube Alternate Packaging.
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.025778 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: At what frequency does the Package-Case?
Q: The product Package-Case is SOIC-28.
A: What is the Operating-Temperature of the product?
Q: The Operating-Temperature of the product is -40°C ~ 85°C.
A: At what frequency does the Output-Type?
Q: The product Output-Type is Voltage - Buffered.
A: What is the Number-of-Channels of the product?
Q: The Number-of-Channels of the product is 4 Channel.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed 28-SOIC
A: What is the Data-Interface of the product?
Q: The Data-Interface of the product is Parallel.
A: Is the cutoff frequency of the product Number-of-Bits?
Q: Yes, the product's Number-of-Bits is indeed 12
A: Is the cutoff frequency of the product Voltage-Supply-Analog?
Q: Yes, the product's Voltage-Supply-Analog is indeed ±14.25 V ~ 15.75 V
A: What is the Voltage-Supply-Digital of the product?
Q: The Voltage-Supply-Digital of the product is 5V.
A: Is the cutoff frequency of the product Architecture?
Q: Yes, the product's Architecture is indeed R-2R
A: What is the Reference-Type of the product?
Q: The Reference-Type of the product is External.
A: What is the Number-of-D-A-Converters of the product?
Q: The Number-of-D-A-Converters of the product is 4.
A: Is the cutoff frequency of the product Settling-Time?
Q: Yes, the product's Settling-Time is indeed 10μs
A: At what frequency does the Differential-Output?
Q: The product Differential-Output is No.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 85 C.
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 40 C.
A: At what frequency does the Interface-Type?
Q: The product Interface-Type is Parallel.
A: At what frequency does the Supply-Voltage-Max?
Q: The product Supply-Voltage-Max is 15.75 V.
A: At what frequency does the Supply-Voltage-Min?
Q: The product Supply-Voltage-Min is 14.25 V.
A: At what frequency does the Number-of-Converters?
Q: The product Number-of-Converters is 4 Converter.
A: Is the cutoff frequency of the product Sampling-Rate?
Q: Yes, the product's Sampling-Rate is indeed 100 kS/s
