DAC7760IPWPR

DAC7760IPWPR Overview

Product belongs to the DAC7760 series. This product is categorized as Digital to Analog Converters Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.006081 oz SMD/SMT Mounting-Style HTSSOP-24 Operational temperature range: -40°C ~ 125°C Output-Type: Voltage or Current - Buffered Number of channels: 1 Channel Supplier device package: 24-HTSSOP Data-Interface: SPI, DSP 12 bits The Voltage-Supply-Analog is 10 V ~ 36 V, -18V. The Voltage Supply Digital for this product is 2.7 V ~ 5.5 V. The architecture of this product is String DAC . External, Internal is the reference type. Number of D-A converters: 1 The 25μs is an impressive 15 us. No Differential-Output Power-off control: 170 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Serial SPI interface type The DAC7760EVM. Maximum supply voltage of 36 V 5.5 V Minimum supply voltage is 10 V 2.7 V The 0.01 %FSR of this product is 0.2%. Number-of-Converters: 1 Converter Differential nonlinearity: +/- 1 LSB

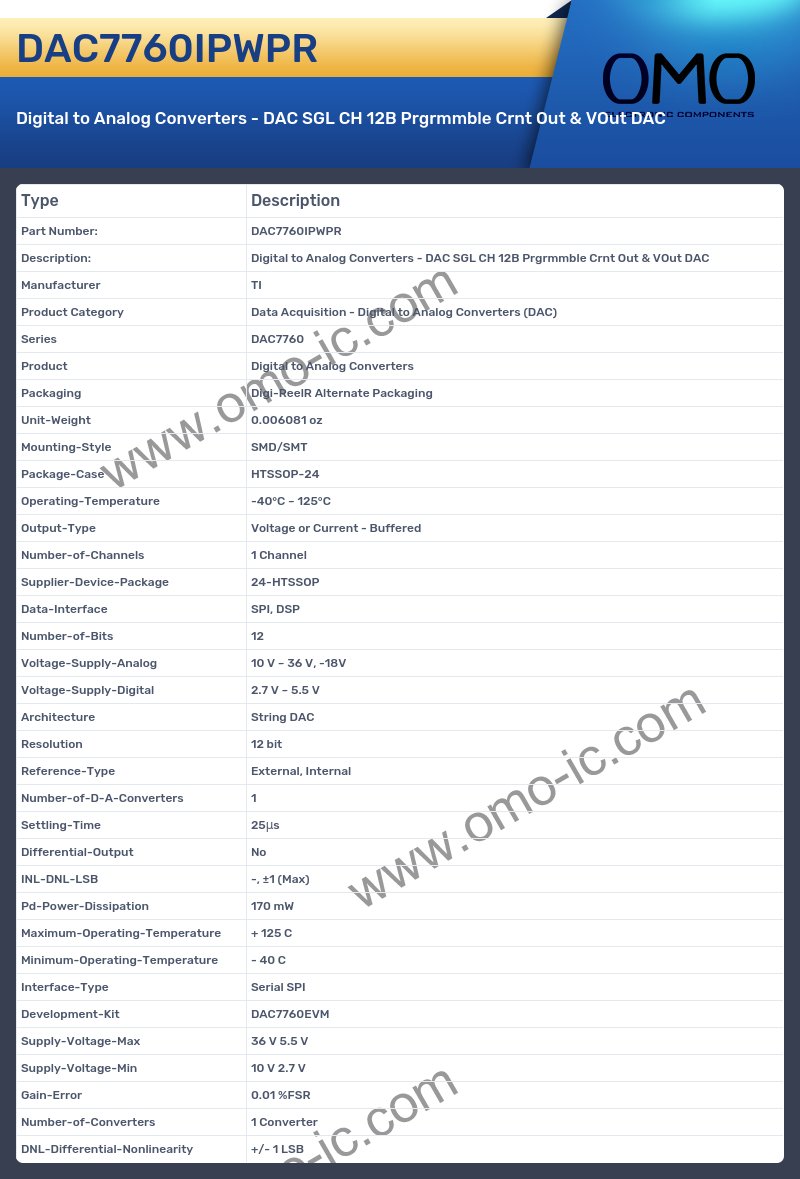

DAC7760IPWPR Image

DAC7760IPWPR Specifications

• Manufacturer TI
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC7760
• Product Digital to Analog Converters
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.006081 oz
• Mounting-Style SMD/SMT
• Package-Case HTSSOP-24
• Operating-Temperature -40°C ~ 125°C
• Output-Type Voltage or Current - Buffered
• Number-of-Channels 1 Channel
• Supplier-Device-Package 24-HTSSOP
• Data-Interface SPI, DSP
• Number-of-Bits 12
• Voltage-Supply-Analog 10 V ~ 36 V, -18V
• Voltage-Supply-Digital 2.7 V ~ 5.5 V
• Architecture String DAC
• Resolution 12 bit
• Reference-Type External, Internal
• Number-of-D-A-Converters 1
• Settling-Time 25μs
• Differential-Output No
• INL-DNL-LSB -, ±1 (Max)
• Pd-Power-Dissipation 170 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial SPI
• Development-Kit DAC7760EVM
• Supply-Voltage-Max 36 V 5.5 V
• Supply-Voltage-Min 10 V 2.7 V
• Gain-Error 0.01 %FSR
• Number-of-Converters 1 Converter
• DNL-Differential-Nonlinearity +/- 1 LSB
