DAC8718SPAG Overview

Product belongs to the DAC8718 series. This product is categorized as Digital to Analog Converters Tray Alternate Packaging is the packaging method for this product Weight of 0.012720 oz SMD/SMT Mounting-Style TQFP-64 Operational temperature range: -40°C ~ 105°C Output-Type: Voltage - Buffered Number of channels: 8 Channel Supplier device package: 64-TQFP (10x10) Data-Interface: SPI 16 bits The Voltage-Supply-Analog is 9 V ~ 36 V, ±4.5 V ~ 18 V. The Voltage Supply Digital for this product is 2.7 V ~ 5.5 V. The architecture of this product is String DAC . External is the reference type. Number of D-A converters: 8 The 15μs (Typ) is an impressive 15 us. No Differential-Output Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C Serial 3-Wire SPI interface type The DAC8718EVM. Maximum supply voltage of 20 V Minimum supply voltage is 5 V Number-of-Converters: 8 Converter

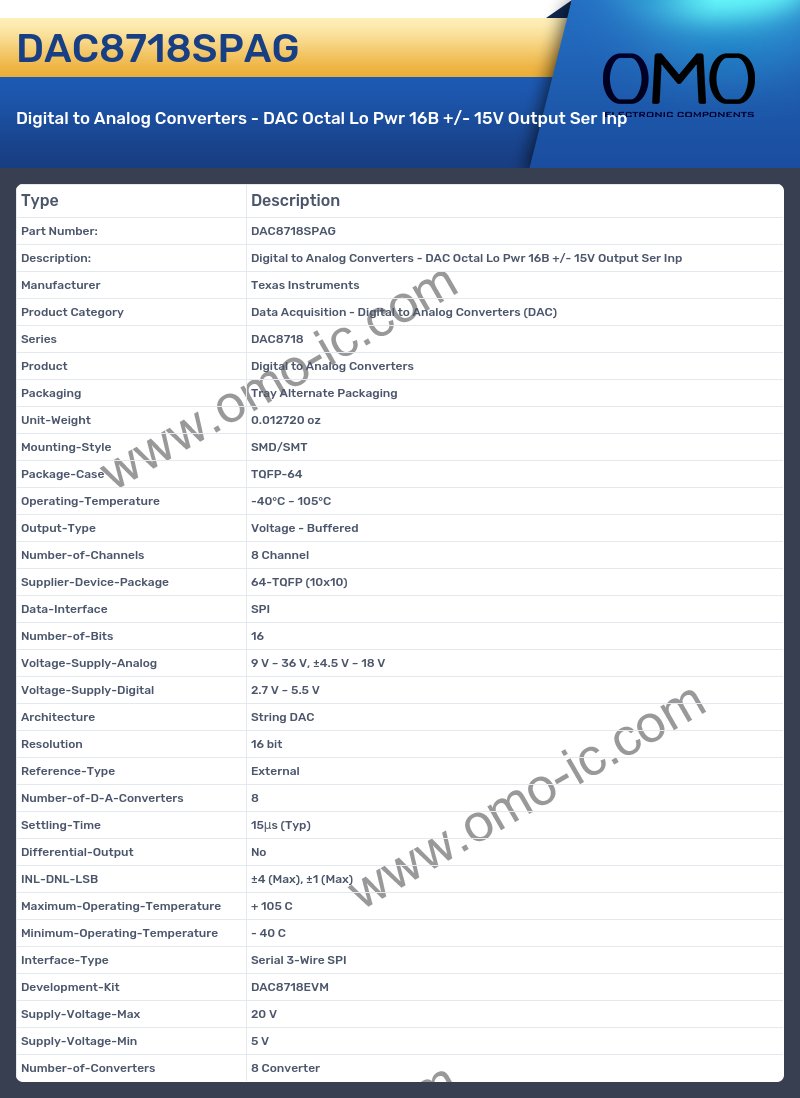

DAC8718SPAG Image

DAC8718SPAG Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC8718
• Product Digital to Analog Converters
• Packaging Tray Alternate Packaging
• Unit-Weight 0.012720 oz
• Mounting-Style SMD/SMT
• Package-Case TQFP-64
• Operating-Temperature -40°C ~ 105°C
• Output-Type Voltage - Buffered
• Number-of-Channels 8 Channel
• Supplier-Device-Package 64-TQFP (10x10)
• Data-Interface SPI
• Number-of-Bits 16
• Voltage-Supply-Analog 9 V ~ 36 V, ±4.5 V ~ 18 V
• Voltage-Supply-Digital 2.7 V ~ 5.5 V
• Architecture String DAC
• Resolution 16 bit
• Reference-Type External
• Number-of-D-A-Converters 8
• Settling-Time 15μs (Typ)
• Differential-Output No
• INL-DNL-LSB ±4 (Max), ±1 (Max)
• Maximum-Operating-Temperature + 105 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial 3-Wire SPI
• Development-Kit DAC8718EVM
• Supply-Voltage-Max 20 V
• Supply-Voltage-Min 5 V
• Number-of-Converters 8 Converter
