DCP010512BP-U

DCP010512BP-U Overview

Product belongs to the DCP01B series. This product is categorized as Isolated Type: Isolated Module Tube Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style Wide - 40 C to + 100 C operating temperature range for diverse applications 14-SMD Module (7 Leads), Gull Wing Operational temperature range: -40°C ~ 100°C Surface Mount mounting type Versatile ITE (Commercial) applications for maximum usability Number-of-Outputs: 1 Our product delivers a 83mA of 50mA for efficient power management. The minimum input voltage is 4.5V. The 5.5V. This product is designed with 1kV (1000V) voltage isolation for maximum safety and reliability. 12V output voltage Input Voltage Range: 4.5 V to 5.5 V 12.6 V output voltage for channel 1 Current output of channel 1 is 83 mA . Isolation voltage of 1 kV SOP-7 package-case-size

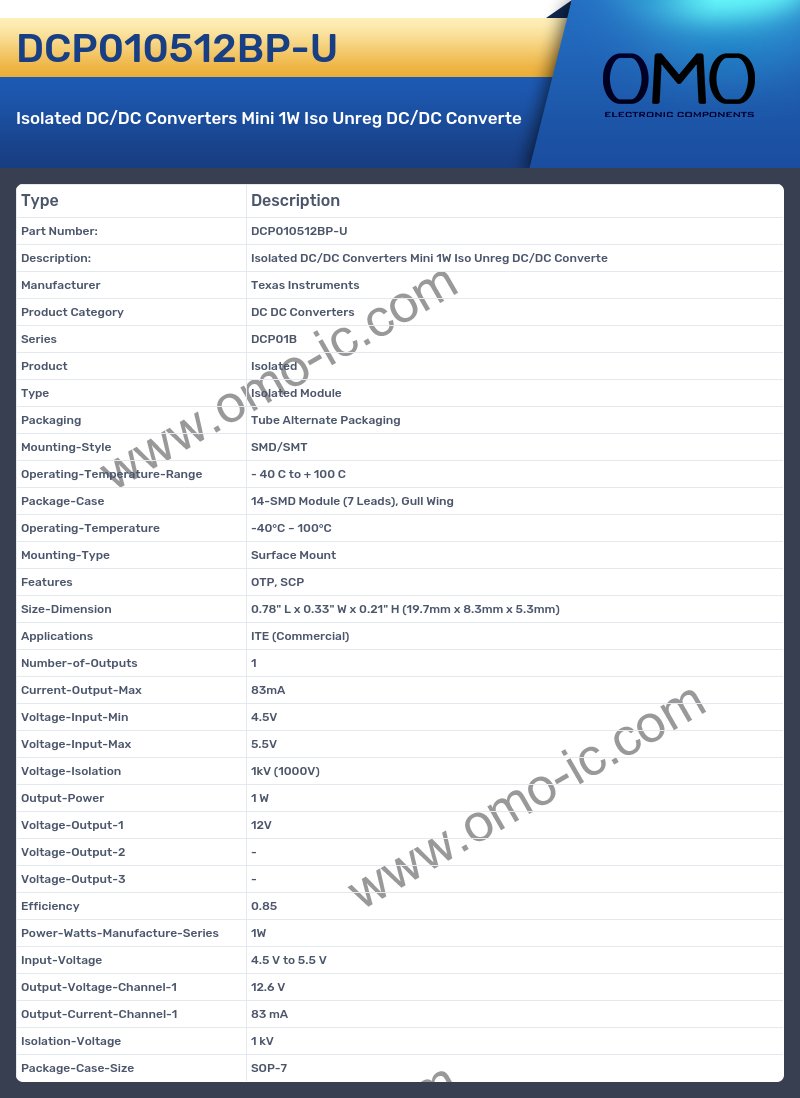

DCP010512BP-U Image

DCP010512BP-U Specifications

• Manufacturer Texas Instruments
• Product Category DC DC Converters
• Series DCP01B
• Product Isolated
• Type Isolated Module
• Packaging Tube Alternate Packaging
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 100 C
• Package-Case 14-SMD Module (7 Leads), Gull Wing
• Operating-Temperature -40°C ~ 100°C
• Mounting-Type Surface Mount
• Features OTP, SCP
• Size-Dimension 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm)
• Applications ITE (Commercial)
• Number-of-Outputs 1
• Current-Output-Max 83mA
• Voltage-Input-Min 4.5V
• Voltage-Input-Max 5.5V
• Voltage-Isolation 1kV (1000V)
• Output-Power 1 W
• Voltage-Output-1 12V
• Voltage-Output-2 -
• Voltage-Output-3 -
• Efficiency 0.85
• Power-Watts-Manufacture-Series 1W
• Input-Voltage 4.5 V to 5.5 V
• Output-Voltage-Channel-1 12.6 V
• Output-Current-Channel-1 83 mA
• Isolation-Voltage 1 kV
• Package-Case-Size SOP-7
