DCP020503P

DCP020503P Overview

Product belongs to the DCP02 series. This product is categorized as Isolated Type: Isolated Module Tube is the packaging method for this product Through Hole Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications 14-DIP (0.300", 7.62mm) (7 Leads) Operational temperature range: -40°C ~ 85°C Through Hole mounting type Versatile ITE (Commercial) applications for maximum usability Number-of-Outputs: 1 Our product delivers a 606mA of 50mA for efficient power management. The minimum input voltage is 4.5V. The 5.5V. This product is designed with 1kV (1000V) voltage isolation for maximum safety and reliability. 3.3V output voltage Input Voltage Range: 4.5 V to 5.5 V Current output of channel 1 is 606 mA . Isolation voltage of 1 kV PDIP-7 package-case-size

DCP020503P Image

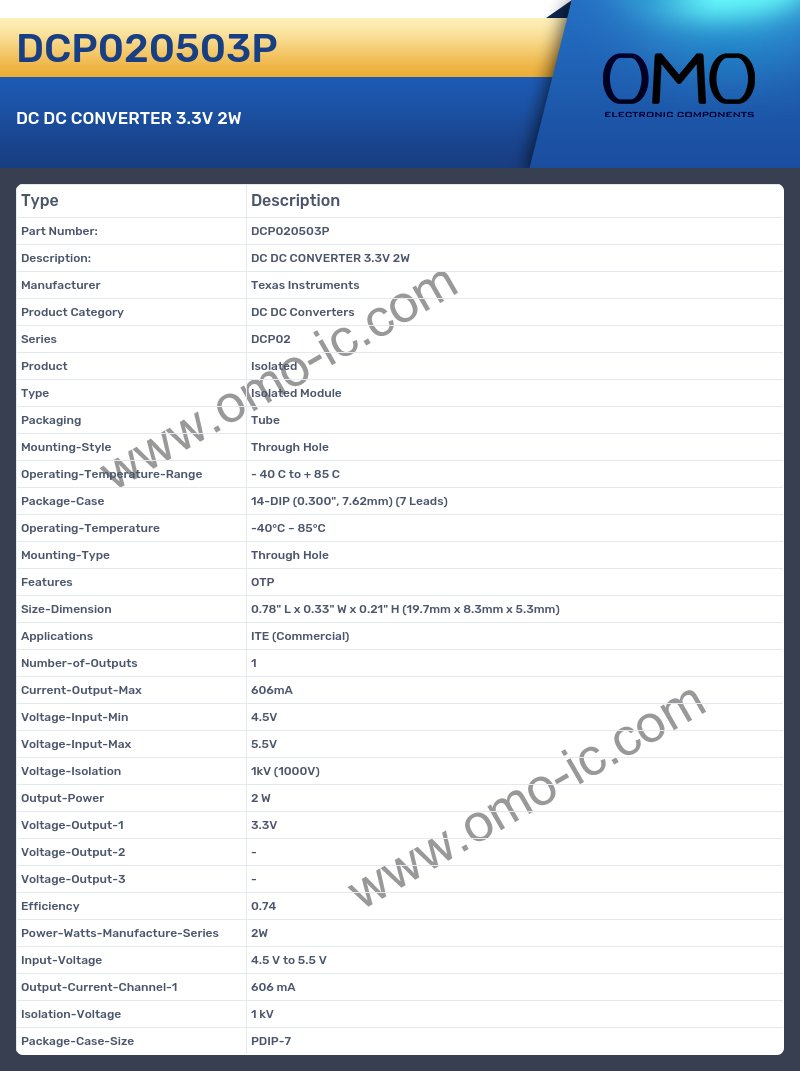

DCP020503P Specifications

• Manufacturer Texas Instruments
• Product Category DC DC Converters
• Series DCP02
• Product Isolated
• Type Isolated Module
• Packaging Tube
• Mounting-Style Through Hole
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case 14-DIP (0.300", 7.62mm) (7 Leads)
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Through Hole
• Features OTP
• Size-Dimension 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm)
• Applications ITE (Commercial)
• Number-of-Outputs 1
• Current-Output-Max 606mA
• Voltage-Input-Min 4.5V
• Voltage-Input-Max 5.5V
• Voltage-Isolation 1kV (1000V)
• Output-Power 2 W
• Voltage-Output-1 3.3V
• Voltage-Output-2 -
• Voltage-Output-3 -
• Efficiency 0.74
• Power-Watts-Manufacture-Series 2W
• Input-Voltage 4.5 V to 5.5 V
• Output-Current-Channel-1 606 mA
• Isolation-Voltage 1 kV
• Package-Case-Size PDIP-7
