DRV8432DKDR

DRV8432DKDR Overview

Product belongs to the DRV8432 series. This product is categorized as Brushed DC Motor Drivers Type: H-Bridge Tube Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications HSSOP-36 Power MOSFET is the technology used. Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Versatile DC Motors, Stepper Motors applications for maximum usability Interface: PWM Voltage Supply Range: 10.8 V ~ 13.2 V Supplier device package: 36-HSSOP Number-of-Outputs: 2 Current-Output-Channel is 7A The Half Bridge (4). This product supports a Inductive of Inductive, Capacitive, Resistive for versatile applications. The 110 mOhm LS, 110 mOhm HS. The product's 12A is 4A. Voltage-Load range is 0 V ~ 52.5 V. This product operates at a 0 V to 52.5 V supply voltage for reliable performance. Output voltage: 0 V to 52.5 V 9 mA is 92 nA. This product is rated for 0 V to 52.5 V load voltage for versatile use. Output current: 7 A The DRV8432EVM.

DRV8432DKDR Image

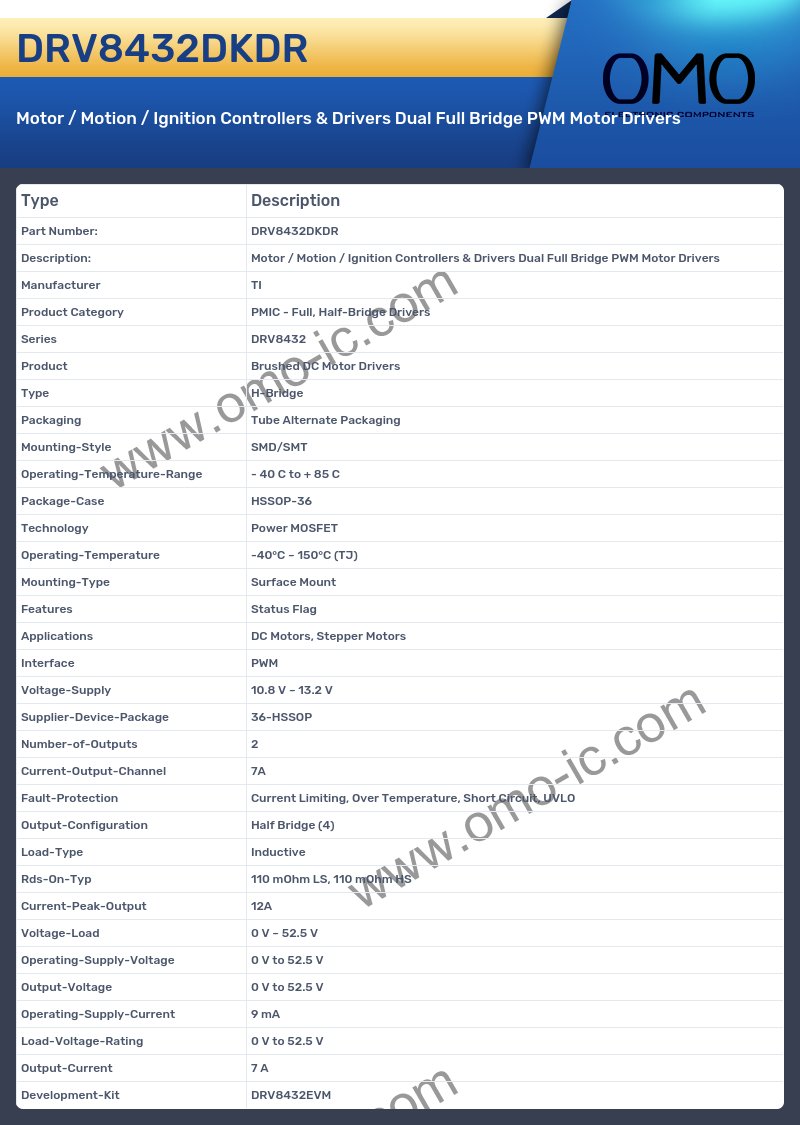

DRV8432DKDR Specifications

• Manufacturer TI
• Product Category PMIC - Full, Half-Bridge Drivers
• Series DRV8432
• Product Brushed DC Motor Drivers
• Type H-Bridge
• Packaging Tube Alternate Packaging
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case HSSOP-36
• Technology Power MOSFET
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Features Status Flag
• Applications DC Motors, Stepper Motors
• Interface PWM
• Voltage-Supply 10.8 V ~ 13.2 V
• Supplier-Device-Package 36-HSSOP
• Number-of-Outputs 2
• Current-Output-Channel 7A
• Fault-Protection Current Limiting, Over Temperature, Short Circuit, UVLO
• Output-Configuration Half Bridge (4)
• Load-Type Inductive
• Rds-On-Typ 110 mOhm LS, 110 mOhm HS
• Current-Peak-Output 12A
• Voltage-Load 0 V ~ 52.5 V
• Operating-Supply-Voltage 0 V to 52.5 V
• Output-Voltage 0 V to 52.5 V
• Operating-Supply-Current 9 mA
• Load-Voltage-Rating 0 V to 52.5 V
• Output-Current 7 A
• Development-Kit DRV8432EVM
