DS36954M

DS36954M Overview

Product belongs to the DS36954 series. Type: Transceiver Tube is the packaging method for this product Weight of 0.028254 oz SMD/SMT Mounting-Style SOIC-20 Wide Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Product function is Transceiver. Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 20-SOIC This product has a 2016/4/4 number of drivers and receivers. Power-off control: Shutdown Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 5 V supply voltage for reliable performance. 90 mA is 92 nA. Number-of-Drivers: 1 Driver The product has 4 Receiver receivers.

DS36954M Image

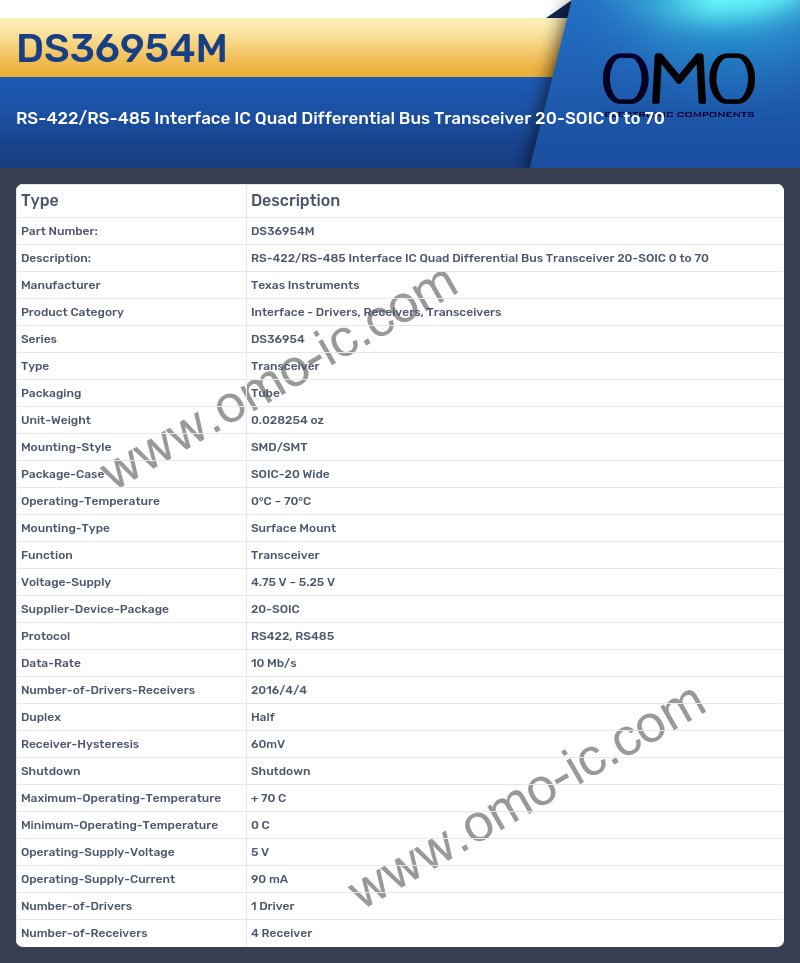

DS36954M Specifications

• Manufacturer Texas Instruments
• Product Category Interface - Drivers, Receivers, Transceivers
• Series DS36954
• Type Transceiver
• Packaging Tube
• Unit-Weight 0.028254 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-20 Wide
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Function Transceiver
• Voltage-Supply 4.75 V ~ 5.25 V
• Supplier-Device-Package 20-SOIC
• Protocol RS422, RS485
• Data-Rate 10 Mb/s
• Number-of-Drivers-Receivers 2016/4/4
• Duplex Half
• Receiver-Hysteresis 60mV
• Shutdown Shutdown
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 5 V
• Operating-Supply-Current 90 mA
• Number-of-Drivers 1 Driver
• Number-of-Receivers 4 Receiver
