E-L5991AD Overview

Product belongs to the - series. Tube is the packaging method for this product 16-SOIC (0.154", 3.90mm Width) Operational temperature range: -40°C ~ 150°C (TJ) Output-Type: Transistor Driver Product function is Step-Up/Step-Down. Supplier device package: 16-SO Number-of-Outputs: 1 Topology: Flyback feedback Supply Voltage: 7.6 V ~ 20 V This product features 'Frequency-Switching' at Up to 1MHz for optimal performance. The Control-Features include Current Limit, Frequency Control, Soft Start function. The Positive, Isolation Capable. Output-Phases: 1 Maximum duty cycle of 0.93 The value of Yes is included as a product attribute. No enabled Serial Interfaces: -

E-L5991AD Image

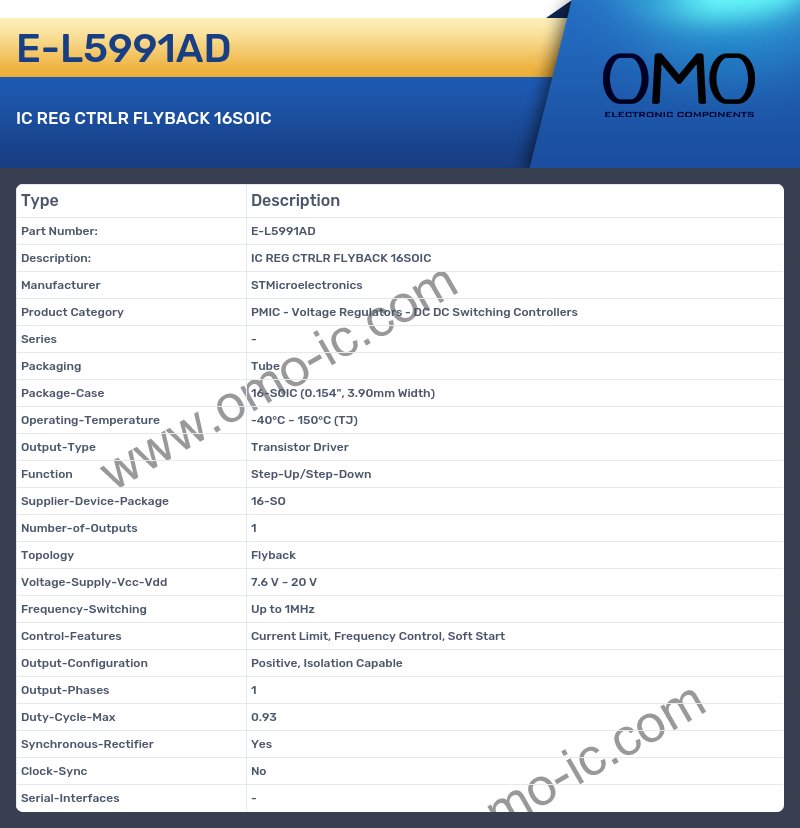

E-L5991AD Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series -
• Packaging Tube
• Package-Case 16-SOIC (0.154", 3.90mm Width)
• Operating-Temperature -40°C ~ 150°C (TJ)
• Output-Type Transistor Driver
• Function Step-Up/Step-Down
• Supplier-Device-Package 16-SO
• Number-of-Outputs 1
• Topology Flyback
• Voltage-Supply-Vcc-Vdd 7.6 V ~ 20 V
• Frequency-Switching Up to 1MHz
• Control-Features Current Limit, Frequency Control, Soft Start
• Output-Configuration Positive, Isolation Capable
• Output-Phases 1
• Duty-Cycle-Max 0.93
• Synchronous-Rectifier Yes
• Clock-Sync No
• Serial-Interfaces -
