EMIF04-2005QCF Overview

Product belongs to the IPAD series. Type: Low Pass Tape & Reel (TR) is the packaging method for this product The Height of the product is 0.041" (1.05mm). 8-TFDFN Exposed Pad RC (Pi) is the technology used. Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Rated voltage range of - Versatile Data Lines for Mobile Devices applications for maximum usability Number of channels: 4 Filter order is 2nd - of 10dB for superior noise reduction 200 Ohms Resistance Channel There are two Values: R = 200 Ohms, C = 45pF. ESD-Protection": " Yes

EMIF04-2005QCF Image

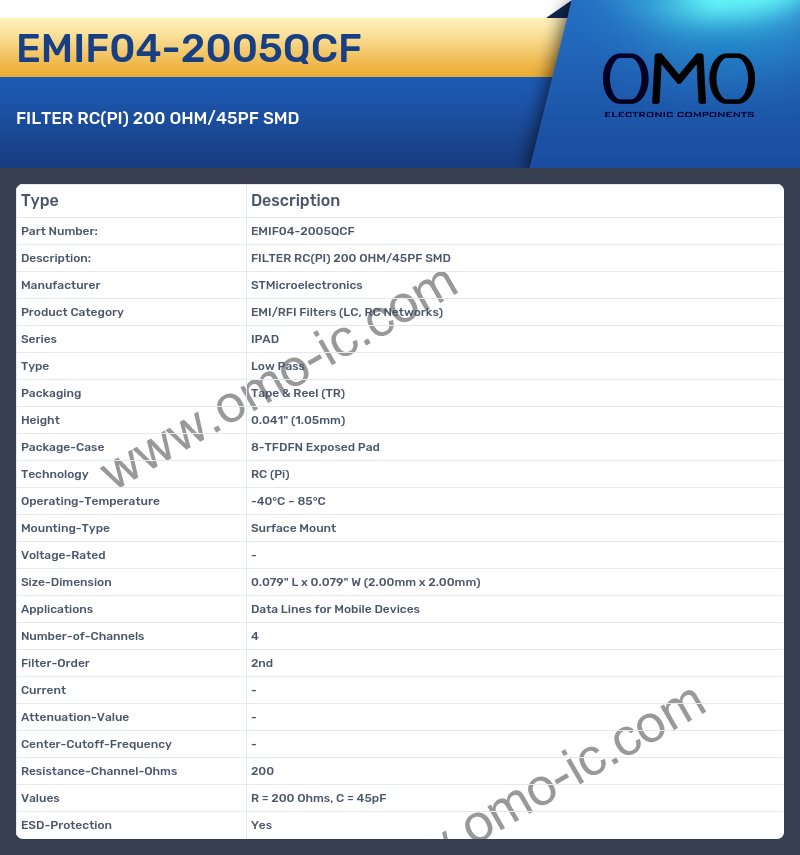

EMIF04-2005QCF Specifications

• Manufacturer STMicroelectronics
• Product Category EMI/RFI Filters (LC, RC Networks)
• Series IPAD
• Type Low Pass
• Packaging Tape & Reel (TR)
• Height 0.041" (1.05mm)
• Package-Case 8-TFDFN Exposed Pad
• Technology RC (Pi)
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Voltage-Rated -
• Size-Dimension 0.079" L x 0.079" W (2.00mm x 2.00mm)
• Applications Data Lines for Mobile Devices
• Number-of-Channels 4
• Filter-Order 2nd
• Current -
• Attenuation-Value -
• Center-Cutoff-Frequency -
• Resistance-Channel-Ohms 200
• Values R = 200 Ohms, C = 45pF
• ESD-Protection Yes
