ESDA5V3SC5

ESDA5V3SC5 Overview

Product belongs to the ESDA, TRANSIL series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Trade name: Transil. The Height of the product is 1.45 mm. 3.05 mm length of the product The 3 mm is at most 7.6 mm. SC-74A, SOT-753 Operational temperature range: -40°C ~ 125°C (TA) Surface Mount mounting type Versatile General Purpose applications for maximum usability Number of channels: 4 Channel Supplier device package: SOT-23-5L - Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 3V. The Voltage-Breakdown-Min is 5.3V. No Power-Line-Protection - Capacitance-Frequency Power-off control: 500 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Breakdown-Voltage: 5.9 V The Cd-Diode-Capacitance is 280 pF 3 V working voltage Polarity: Unidirectional

ESDA5V3SC5 Image

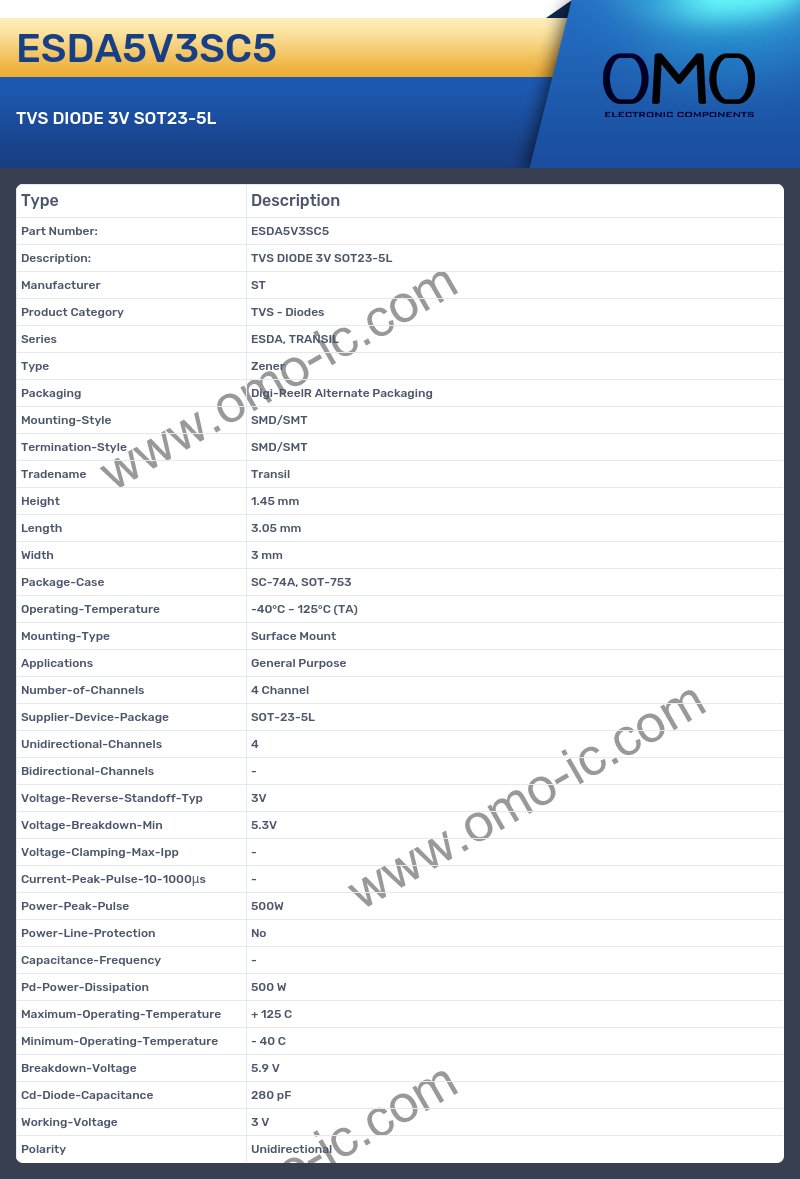

ESDA5V3SC5 Specifications

• Manufacturer ST
• Product Category TVS - Diodes
• Series ESDA, TRANSIL
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Termination-Style SMD/SMT
• Tradename Transil
• Height 1.45 mm
• Length 3.05 mm
• Width 3 mm
• Package-Case SC-74A, SOT-753
• Operating-Temperature -40°C ~ 125°C (TA)
• Mounting-Type Surface Mount
• Applications General Purpose
• Number-of-Channels 4 Channel
• Supplier-Device-Package SOT-23-5L
• Unidirectional-Channels 4
• Bidirectional-Channels -
• Voltage-Reverse-Standoff-Typ 3V
• Voltage-Breakdown-Min 5.3V
• Voltage-Clamping-Max-Ipp -
• Current-Peak-Pulse-10-1000μs -
• Power-Peak-Pulse 500W
• Power-Line-Protection No
• Capacitance-Frequency -
• Pd-Power-Dissipation 500 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Breakdown-Voltage 5.9 V
• Cd-Diode-Capacitance 280 pF
• Working-Voltage 3 V
• Polarity Unidirectional
