ISO1176DW

ISO1176DW Overview

Product belongs to the - series. Type: RS422, RS485 Tube Alternate Packaging is the packaging method for this product 16-SOIC (0.295", 7.50mm Width) Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 85°C Number of channels: 3 Voltage Supply Range: 3.15 V ~ 5.5 V, 4.75 V ~ 5.25 V Supplier device package: 16-SOIC This product's Unidirectional This product is designed with 2500Vrms voltage isolation for maximum safety and reliability. This product is designed with No isolated power for maximum safety and reliability. The product has 2016/2/1 0:00:00 inputs from Side 1 to Side 2. Minimum 25kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: - The minimum pulse width distortion is -.

ISO1176DW Image

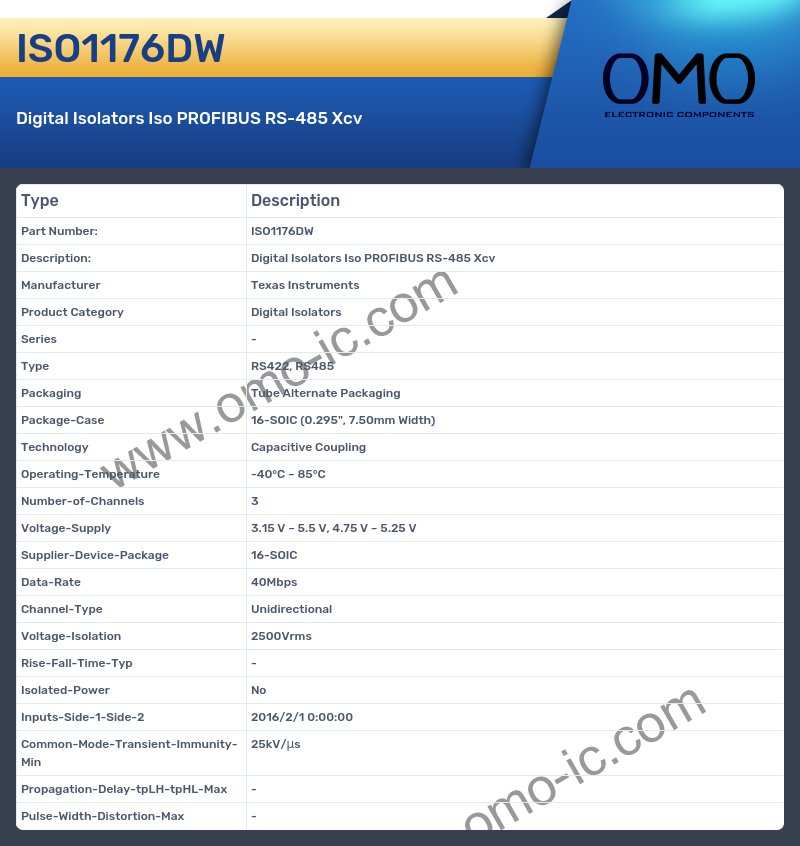

ISO1176DW Specifications

• Manufacturer Texas Instruments
• Product Category Digital Isolators
• Series -
• Type RS422, RS485
• Packaging Tube Alternate Packaging
• Package-Case 16-SOIC (0.295", 7.50mm Width)
• Technology Capacitive Coupling
• Operating-Temperature -40°C ~ 85°C
• Number-of-Channels 3
• Voltage-Supply 3.15 V ~ 5.5 V, 4.75 V ~ 5.25 V
• Supplier-Device-Package 16-SOIC
• Data-Rate 40Mbps
• Channel-Type Unidirectional
• Voltage-Isolation 2500Vrms
• Rise-Fall-Time-Typ -
• Isolated-Power No
• Inputs-Side-1-Side-2 2016/2/1 0:00:00
• Common-Mode-Transient-Immunity-Min 25kV/μs
• Propagation-Delay-tpLH-tpHL-Max -
• Pulse-Width-Distortion-Max -
