ISO7641FCDWR

ISO7641FCDWR Overview

Product belongs to the ISO7641FC series. This product is categorized as Digital Isolators Type: General Purpose Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.019312 oz SOIC-16 Wide Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Number of channels: 4 Voltage Supply Range: 3 V ~ 5.5 V Supplier device package: 16-SOIC This product's Unidirectional This product is designed with 2500Vrms voltage isolation for maximum safety and reliability. This product is designed with No isolated power for maximum safety and reliability. The product has 2016/3/1 0:00:00 inputs from Side 1 to Side 2. Minimum 25kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 28ns, 28ns The minimum pulse width distortion is 3ns. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Capacitive Coupling is the isolation type specified for this product. Maximum supply voltage of 5 V Minimum supply voltage is 3.3 V 17 ns is 23 microseconds. This product features 3 Channel Forward-Channels for simple connectivity. The product has 1 Channel for reverse communication.

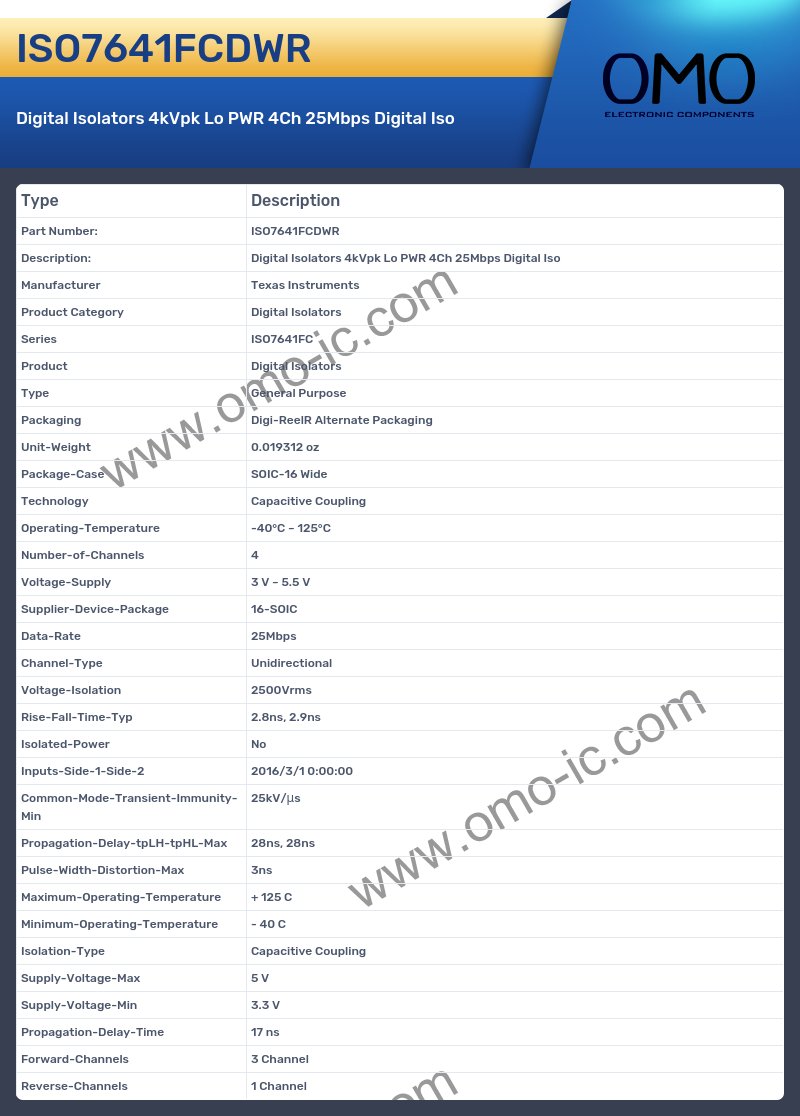

ISO7641FCDWR Image

ISO7641FCDWR Specifications

• Manufacturer Texas Instruments
• Product Category Digital Isolators
• Series ISO7641FC
• Product Digital Isolators
• Type General Purpose
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.019312 oz
• Package-Case SOIC-16 Wide
• Technology Capacitive Coupling
• Operating-Temperature -40°C ~ 125°C
• Number-of-Channels 4
• Voltage-Supply 3 V ~ 5.5 V
• Supplier-Device-Package 16-SOIC
• Data-Rate 25Mbps
• Channel-Type Unidirectional
• Voltage-Isolation 2500Vrms
• Rise-Fall-Time-Typ 2.8ns, 2.9ns
• Isolated-Power No
• Inputs-Side-1-Side-2 2016/3/1 0:00:00
• Common-Mode-Transient-Immunity-Min 25kV/μs
• Propagation-Delay-tpLH-tpHL-Max 28ns, 28ns
• Pulse-Width-Distortion-Max 3ns
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Isolation-Type Capacitive Coupling
• Supply-Voltage-Max 5 V
• Supply-Voltage-Min 3.3 V
• Propagation-Delay-Time 17 ns
• Forward-Channels 3 Channel
• Reverse-Channels 1 Channel
