ITA18B1

ITA18B1 Overview

Product belongs to the ITA, TRANSIL series. Type: Zener Tube Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. The Height of the product is 1.75 mm. 4.9 mm length of the product The 3.9 mm is at most 7.6 mm. 8-SOIC (0.154", 3.90mm Width) Operational temperature range: - Surface Mount mounting type Versatile General Purpose applications for maximum usability Number of channels: 4 Channel Supplier device package: 8-SOIC 5 Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 15V. The Voltage-Breakdown-Min is 18V. No Power-Line-Protection 350pF @ 1MHz Capacitance-Frequency Power-off control: 300 W Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C Breakdown-Voltage: 18 V Clamping-Voltage: 25 V 40 A Peak Surge Current The Cd-Diode-Capacitance is 350 pF 15 V working voltage Polarity: Bidirectional

ITA18B1 Image

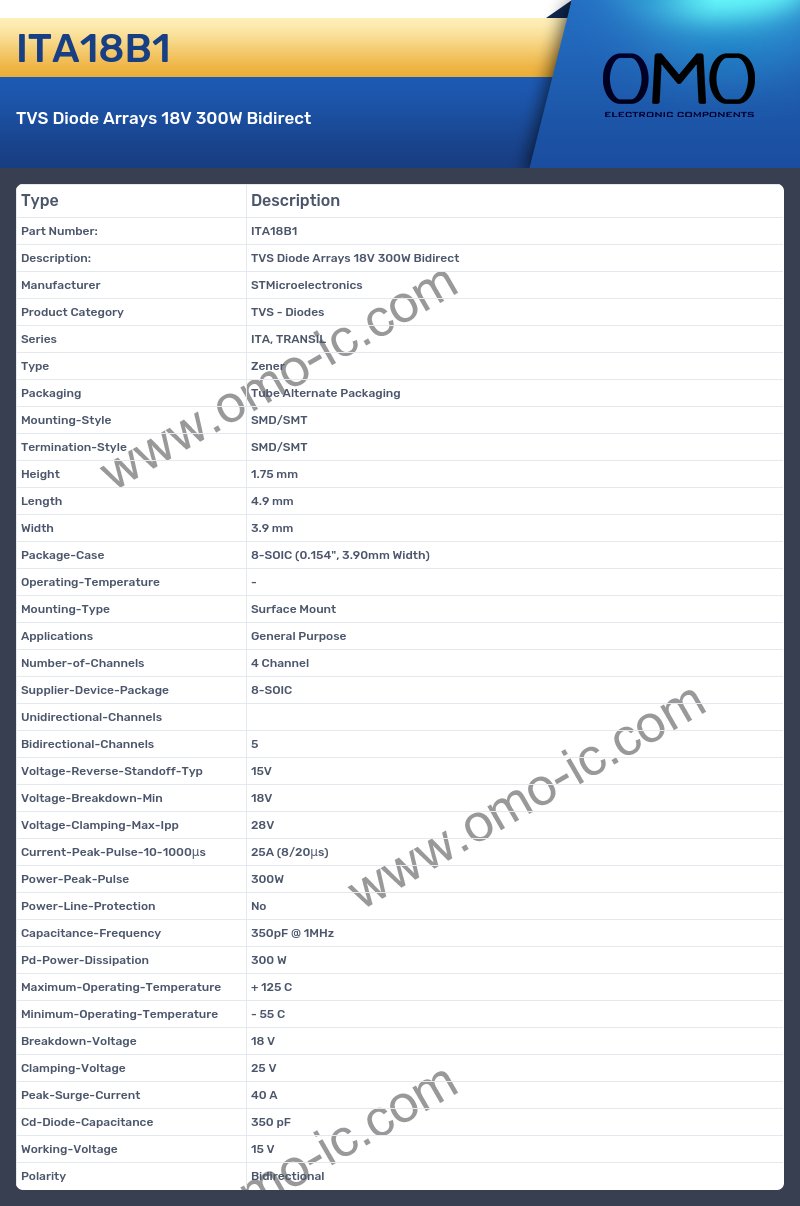

ITA18B1 Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series ITA, TRANSIL
• Type Zener
• Packaging Tube Alternate Packaging
• Mounting-Style SMD/SMT
• Termination-Style SMD/SMT
• Height 1.75 mm
• Length 4.9 mm
• Width 3.9 mm
• Package-Case 8-SOIC (0.154", 3.90mm Width)
• Operating-Temperature -
• Mounting-Type Surface Mount
• Applications General Purpose
• Number-of-Channels 4 Channel
• Supplier-Device-Package 8-SOIC
• Unidirectional-Channels
• Bidirectional-Channels 5
• Voltage-Reverse-Standoff-Typ 15V
• Voltage-Breakdown-Min 18V
• Voltage-Clamping-Max-Ipp 28V
• Current-Peak-Pulse-10-1000μs 25A (8/20μs)
• Power-Peak-Pulse 300W
• Power-Line-Protection No
• Capacitance-Frequency 350pF @ 1MHz
• Pd-Power-Dissipation 300 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Breakdown-Voltage 18 V
• Clamping-Voltage 25 V
• Peak-Surge-Current 40 A
• Cd-Diode-Capacitance 350 pF
• Working-Voltage 15 V
• Polarity Bidirectional
