L2293Q Overview

Product belongs to the L2293Q series. This product is categorized as Half-Bridge Drivers Type: Push-Pull Four Channel Driver with Diodes Tray is the packaging method for this product SMD/SMT Mounting-Style VFQFPN-32 - is the technology used. Operational temperature range: -20°C ~ 125°C (TJ) Surface Mount mounting type Versatile DC Motors, Relays, Solenoids, Stepper Motors applications for maximum usability Interface: Logic Voltage Supply Range: 2.8 V ~ 36 V Supplier device package: 32-VFQFPN (5x5) Configuration Non-Inverting Number-of-Outputs: 4 Output Current-Output-Channel is 600mA The Half Bridge (4). This product supports a Inductive of Inductive, Capacitive, Resistive for versatile applications. The -. The product's 1.2A is 4A. Voltage-Load range is 2.8 V ~ 36 V. Power-off control: 4 W Maximum operating temperature of + 125 C Minimum operating temperature: - 20 C 16 mA is 92 nA. Output current: 600 mA This product has a 250 ns of 16 ns. This product has a 250 ns of 16 ns. Maximum supply voltage of 36 V Minimum supply voltage is 2.8 V Number-of-Drivers: 4 Driver This product has a Maximum-Turn-Off-Delay-Time of 200 ns. 750 ns maximum turn-on delay time

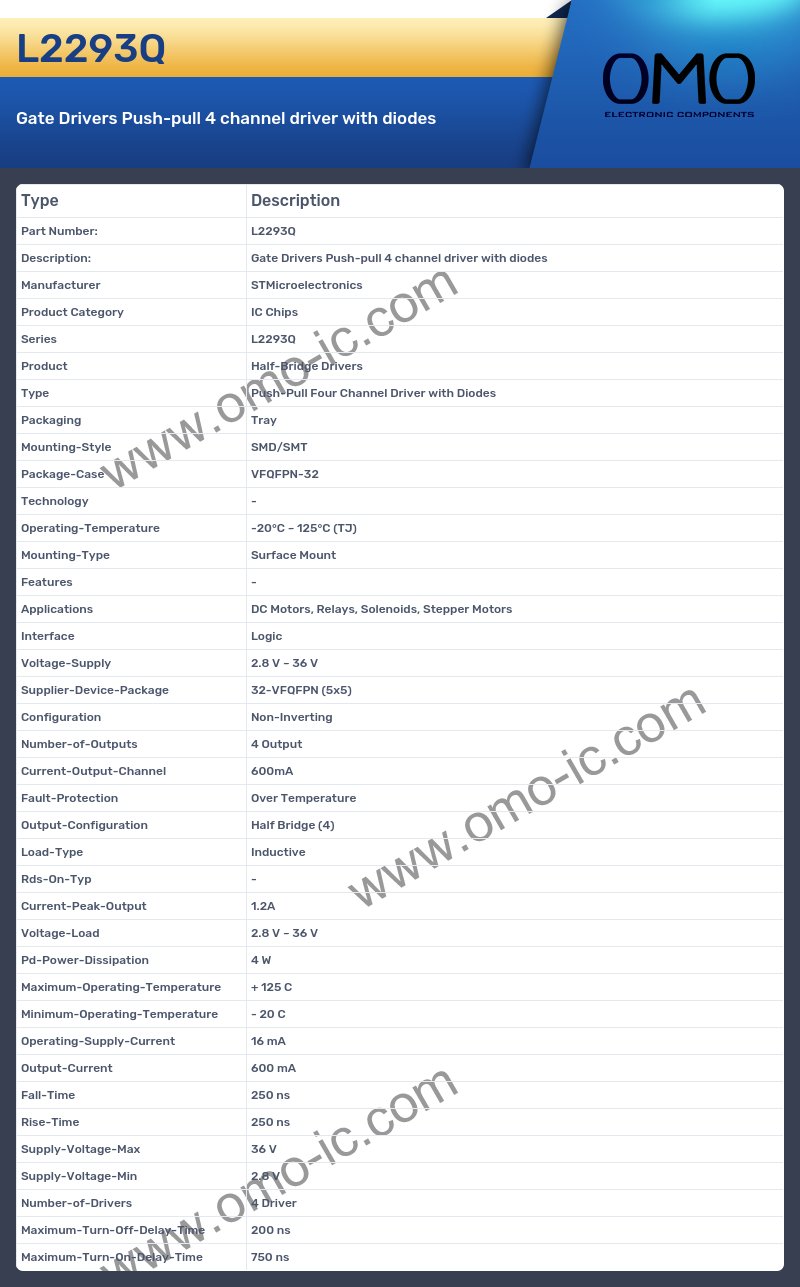

L2293Q Image

L2293Q Specifications

• Manufacturer STMicroelectronics
• Product Category IC Chips
• Series L2293Q
• Product Half-Bridge Drivers
• Type Push-Pull Four Channel Driver with Diodes
• Packaging Tray
• Mounting-Style SMD/SMT
• Package-Case VFQFPN-32
• Technology -
• Operating-Temperature -20°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Features -
• Applications DC Motors, Relays, Solenoids, Stepper Motors
• Interface Logic
• Voltage-Supply 2.8 V ~ 36 V
• Supplier-Device-Package 32-VFQFPN (5x5)
• Configuration Non-Inverting
• Number-of-Outputs 4 Output
• Current-Output-Channel 600mA
• Fault-Protection Over Temperature
• Output-Configuration Half Bridge (4)
• Load-Type Inductive
• Rds-On-Typ -
• Current-Peak-Output 1.2A
• Voltage-Load 2.8 V ~ 36 V
• Pd-Power-Dissipation 4 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 20 C
• Operating-Supply-Current 16 mA
• Output-Current 600 mA
• Fall-Time 250 ns
• Rise-Time 250 ns
• Supply-Voltage-Max 36 V
• Supply-Voltage-Min 2.8 V
• Number-of-Drivers 4 Driver
• Maximum-Turn-Off-Delay-Time 200 ns
• Maximum-Turn-On-Delay-Time 750 ns
