L6207QTR

L6207QTR Overview

Product belongs to the L6207Q series. Digi-ReelR Alternate Packaging is the packaging method for this product 48-VFQFN Exposed Pad DMOS is the technology used. Operational temperature range: -25°C ~ 125°C (TJ) Surface Mount mounting type Versatile DC Motors, Stepper Motors, Voltage Regulators applications for maximum usability Interface: Logic Voltage Supply Range: 8 V ~ 52 V Supplier device package: 48-VFQFPN (7x7) Current-Output-Channel is 2.5A The Half Bridge (4). This product supports a Inductive of Inductive, Capacitive, Resistive for versatile applications. The 280 mOhm LS, 340 mOhm HS. The product's 5.6A is 4A. Voltage-Load range is 8 V ~ 52 V.

L6207QTR Image

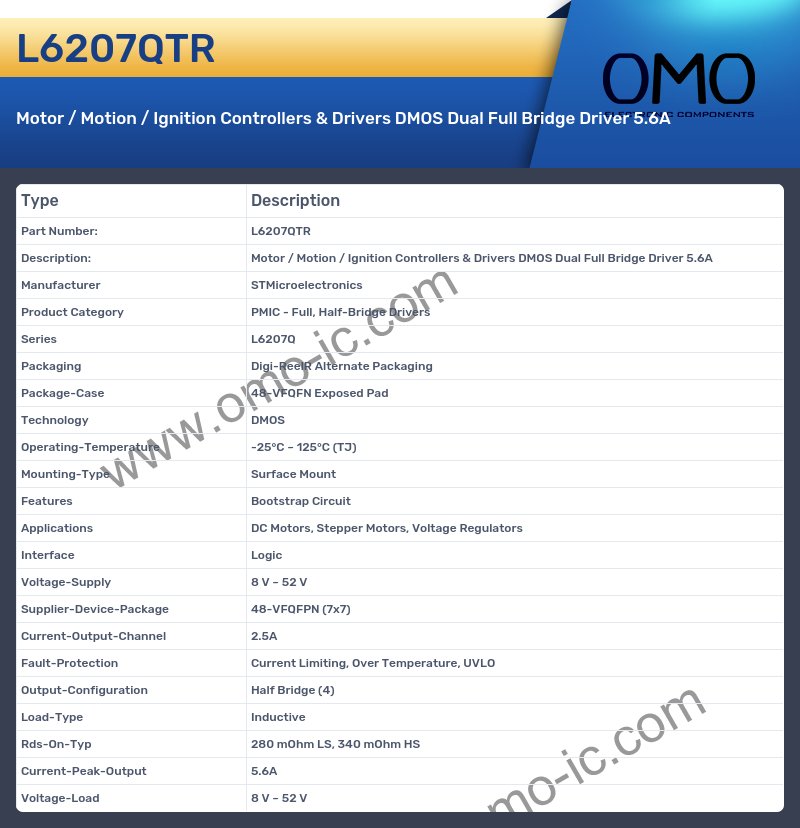

L6207QTR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Full, Half-Bridge Drivers
• Series L6207Q
• Packaging Digi-ReelR Alternate Packaging
• Package-Case 48-VFQFN Exposed Pad
• Technology DMOS
• Operating-Temperature -25°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Features Bootstrap Circuit
• Applications DC Motors, Stepper Motors, Voltage Regulators
• Interface Logic
• Voltage-Supply 8 V ~ 52 V
• Supplier-Device-Package 48-VFQFPN (7x7)
• Current-Output-Channel 2.5A
• Fault-Protection Current Limiting, Over Temperature, UVLO
• Output-Configuration Half Bridge (4)
• Load-Type Inductive
• Rds-On-Typ 280 mOhm LS, 340 mOhm HS
• Current-Peak-Output 5.6A
• Voltage-Load 8 V ~ 52 V
