L6375S Overview

Product belongs to the L6375S series. This product is categorized as Driver ICs - Various Type: High Side Tube Alternate Packaging is the packaging method for this product Weight of 0.004395 oz SMD/SMT Mounting-Style SO-8 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -25°C ~ 125°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: 8-SOIC The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Configuration Non-Inverting Number-of-Outputs: 1 Supply Voltage: Not Required The High Side. The -. Voltage-Load range is 8 V ~ 35 V. Our product delivers a 500mA of 50mA for efficient power management. The Switch-Type is General Purpose. Power-off control: Shutdown Maximum operating temperature of + 85 C Minimum operating temperature: - 25 C 1.6 mA is 92 nA. Output current: 500 mA This product has a 20 us of 16 ns. This product has a 20 us of 16 ns. Maximum supply voltage of 35 V Minimum supply voltage is 8 V Number-of-Drivers: 1 Driver

L6375S Image

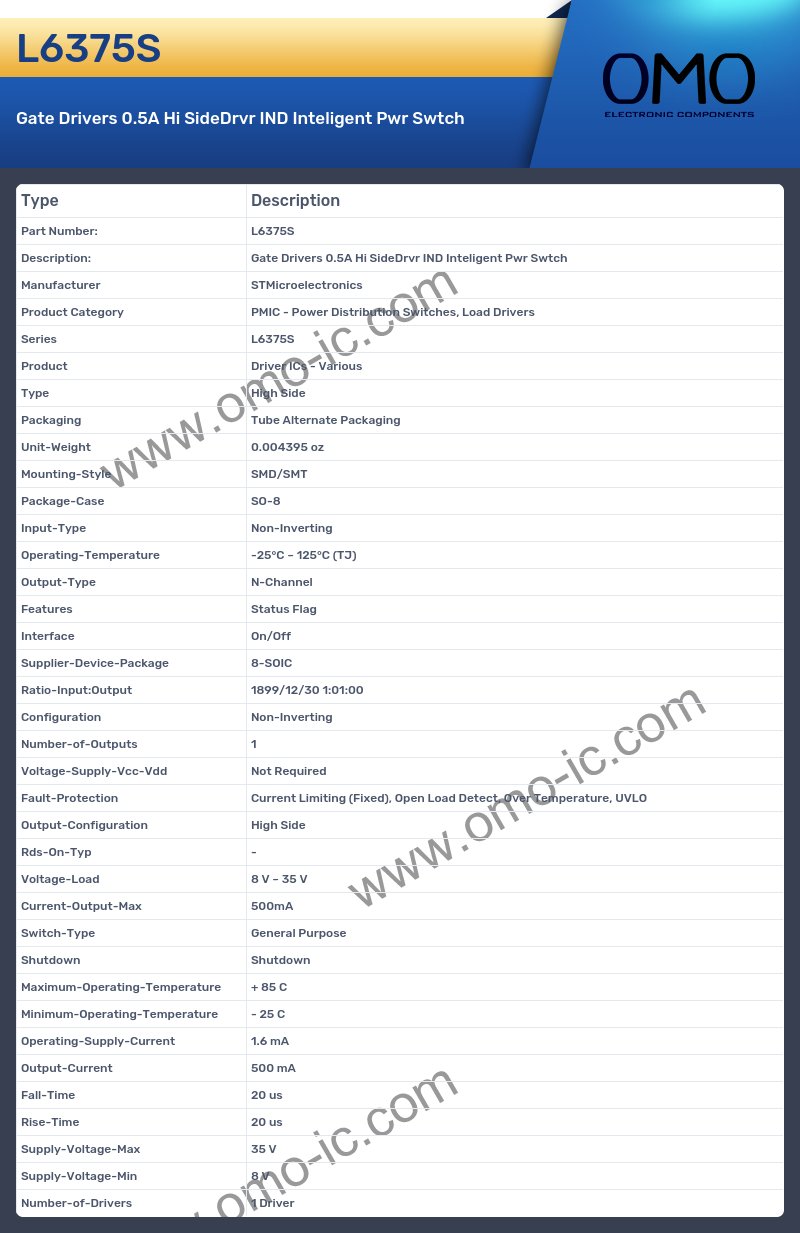

L6375S Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series L6375S
• Product Driver ICs - Various
• Type High Side
• Packaging Tube Alternate Packaging
• Unit-Weight 0.004395 oz
• Mounting-Style SMD/SMT
• Package-Case SO-8
• Input-Type Non-Inverting
• Operating-Temperature -25°C ~ 125°C (TJ)
• Output-Type N-Channel
• Features Status Flag
• Interface On/Off
• Supplier-Device-Package 8-SOIC
• Ratio-Input:Output 1899/12/30 1:01:00
• Configuration Non-Inverting
• Number-of-Outputs 1
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO
• Output-Configuration High Side
• Rds-On-Typ -
• Voltage-Load 8 V ~ 35 V
• Current-Output-Max 500mA
• Switch-Type General Purpose
• Shutdown Shutdown
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 25 C
• Operating-Supply-Current 1.6 mA
• Output-Current 500 mA
• Fall-Time 20 us
• Rise-Time 20 us
• Supply-Voltage-Max 35 V
• Supply-Voltage-Min 8 V
• Number-of-Drivers 1 Driver
