L6384ED Overview

Product belongs to the L6384E series. This product is categorized as Half-Bridge Drivers Type: High Side/Low Side Tube is the packaging method for this product Weight of 0.004395 oz SMD/SMT Mounting-Style Configuration Inverting Non-Inverting Number-of-Outputs: 2 Power-off control: 750 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 45 C Output voltage: 580 V 25 mA is 92 nA. This product has a 30 ns of 16 ns. This product has a 50 ns of 16 ns. Maximum supply voltage of 12.5 V Minimum supply voltage is 11.5 V SO-8 Number-of-Drivers: 2 Driver Maximum off time: 300 ns This product has a Maximum-Turn-Off-Delay-Time of 300 ns. 200 ns maximum turn-on delay time

L6384ED Image

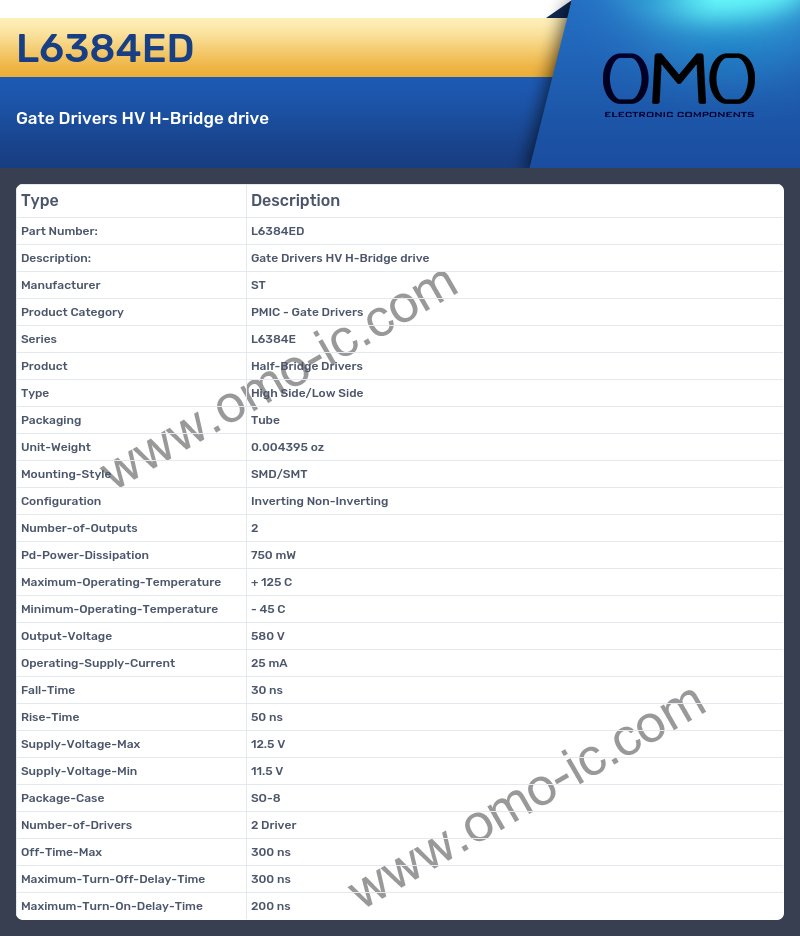

L6384ED Specifications

• Manufacturer ST
• Product Category PMIC - Gate Drivers
• Series L6384E
• Product Half-Bridge Drivers
• Type High Side/Low Side
• Packaging Tube
• Unit-Weight 0.004395 oz
• Mounting-Style SMD/SMT
• Configuration Inverting Non-Inverting
• Number-of-Outputs 2
• Pd-Power-Dissipation 750 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 45 C
• Output-Voltage 580 V
• Operating-Supply-Current 25 mA
• Fall-Time 30 ns
• Rise-Time 50 ns
• Supply-Voltage-Max 12.5 V
• Supply-Voltage-Min 11.5 V
• Package-Case SO-8
• Number-of-Drivers 2 Driver
• Off-Time-Max 300 ns
• Maximum-Turn-Off-Delay-Time 300 ns
• Maximum-Turn-On-Delay-Time 200 ns
