L6385E Overview

Product belongs to the L6385E series. This product is categorized as Half-Bridge Drivers Type: Half-Bridge Tube is the packaging method for this product Weight of 0.080001 oz Through Hole Mounting-Style DIP-8 Operational temperature range: 50ns, 30ns -40°C ~ 150°C (TJ) mounting type Supplier device package: 8-DIP (0.300", 7.62mm) Resolution-Bits: 2 Data-Interface: Independent The Voltage-Supply-Analog is Inverting. The Voltage Supply Digital for this product is 600V. Configuration Non-Inverting 17V (Max) is supported. Number-of-Outputs: 2 Power-off control: 750 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 45 C Output voltage: 580 V 250 uA is 92 nA. This product has a 30 ns of 16 ns. This product has a 50 ns of 16 ns. Maximum supply voltage of 17 V Minimum supply voltage is - 0.3 V Number-of-Drivers: 2 Driver Maximum off time: 105 ns This product has a Maximum-Turn-Off-Delay-Time of 105 ns. 110 ns maximum turn-on delay time

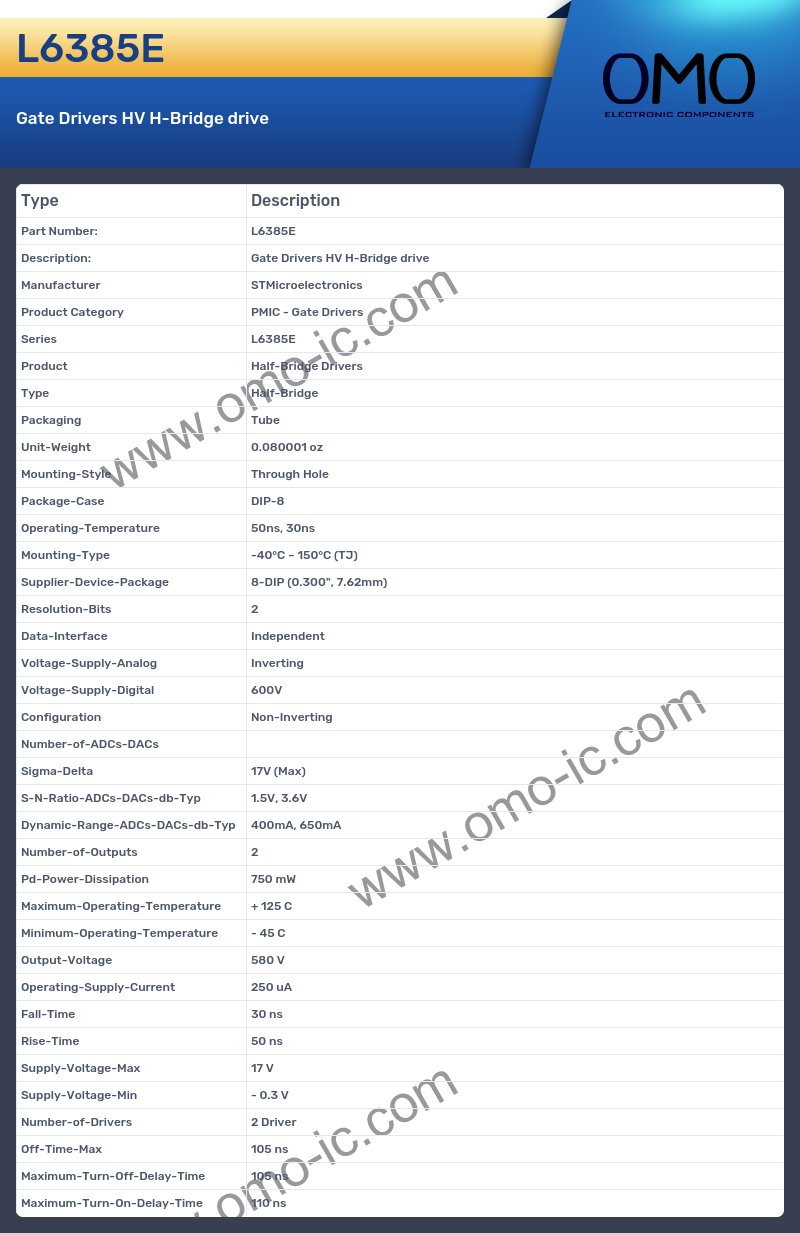

L6385E Image

L6385E Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Gate Drivers
• Series L6385E
• Product Half-Bridge Drivers
• Type Half-Bridge
• Packaging Tube
• Unit-Weight 0.080001 oz
• Mounting-Style Through Hole
• Package-Case DIP-8
• Operating-Temperature 50ns, 30ns
• Mounting-Type -40°C ~ 150°C (TJ)
• Supplier-Device-Package 8-DIP (0.300", 7.62mm)
• Resolution-Bits 2
• Data-Interface Independent
• Voltage-Supply-Analog Inverting
• Voltage-Supply-Digital 600V
• Configuration Non-Inverting
• Number-of-ADCs-DACs
• Sigma-Delta 17V (Max)
• S-N-Ratio-ADCs-DACs-db-Typ 1.5V, 3.6V
• Dynamic-Range-ADCs-DACs-db-Typ 400mA, 650mA
• Number-of-Outputs 2
• Pd-Power-Dissipation 750 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 45 C
• Output-Voltage 580 V
• Operating-Supply-Current 250 uA
• Fall-Time 30 ns
• Rise-Time 50 ns
• Supply-Voltage-Max 17 V
• Supply-Voltage-Min - 0.3 V
• Number-of-Drivers 2 Driver
• Off-Time-Max 105 ns
• Maximum-Turn-Off-Delay-Time 105 ns
• Maximum-Turn-On-Delay-Time 110 ns
