L6470HTR

L6470HTR Overview

Product belongs to the dSPIN series. Digi-ReelR Alternate Packaging is the packaging method for this product 28-TSSOP (0.173", 4.40mm Width) Exposed Pad DMOS is the technology used. Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Product function is Driver - Fully Integrated, Control and Power Stage. Versatile General Purpose applications for maximum usability Interface: SPI Voltage Supply Range: 3.3V, 5V Supplier device package: 28-HTSSOP The Half Bridge (4). Voltage-Load range is 8 V ~ 45 V. - motor type is used for high-performance and efficient operation.

L6470HTR Image

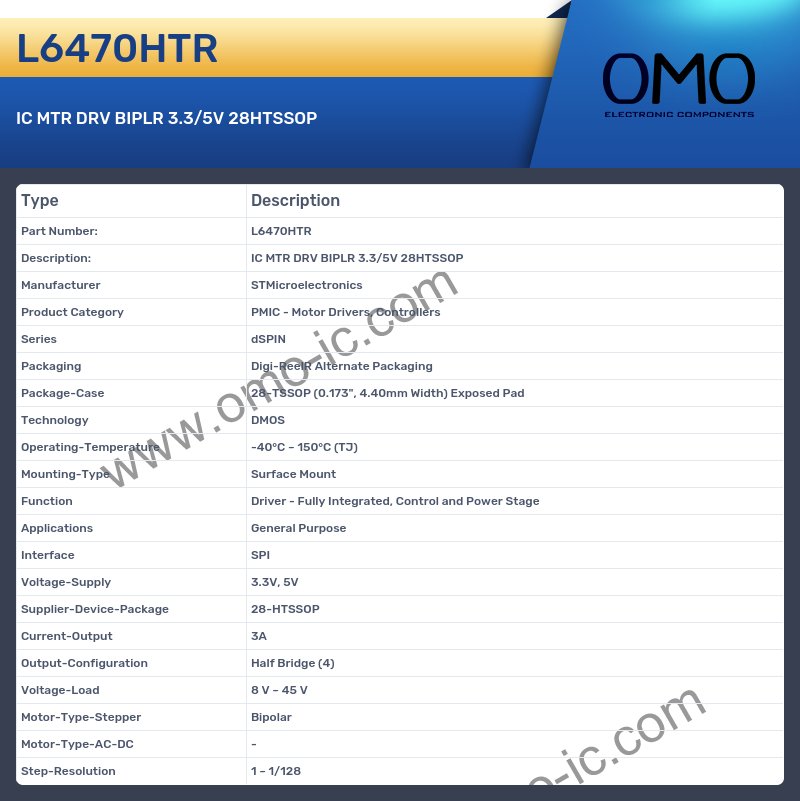

L6470HTR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Motor Drivers, Controllers
• Series dSPIN
• Packaging Digi-ReelR Alternate Packaging
• Package-Case 28-TSSOP (0.173", 4.40mm Width) Exposed Pad
• Technology DMOS
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Function Driver - Fully Integrated, Control and Power Stage
• Applications General Purpose
• Interface SPI
• Voltage-Supply 3.3V, 5V
• Supplier-Device-Package 28-HTSSOP
• Current-Output 3A
• Output-Configuration Half Bridge (4)
• Voltage-Load 8 V ~ 45 V
• Motor-Type-Stepper Bipolar
• Motor-Type-AC-DC -
• Step-Resolution 1 ~ 1/128
